Description

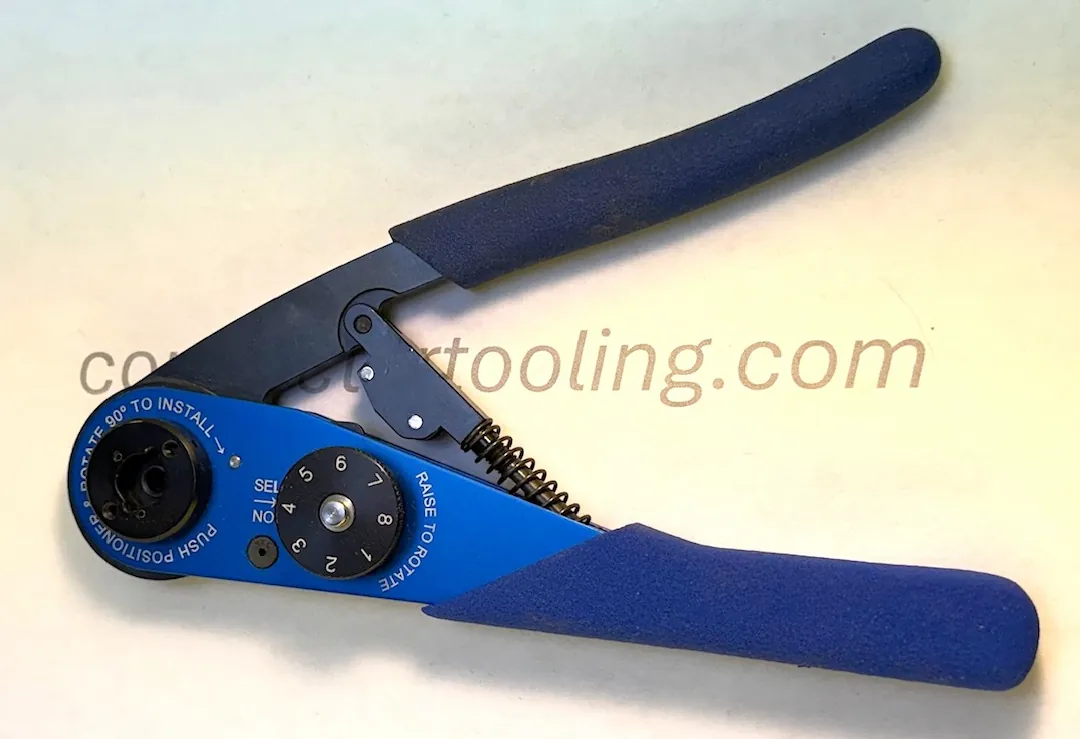

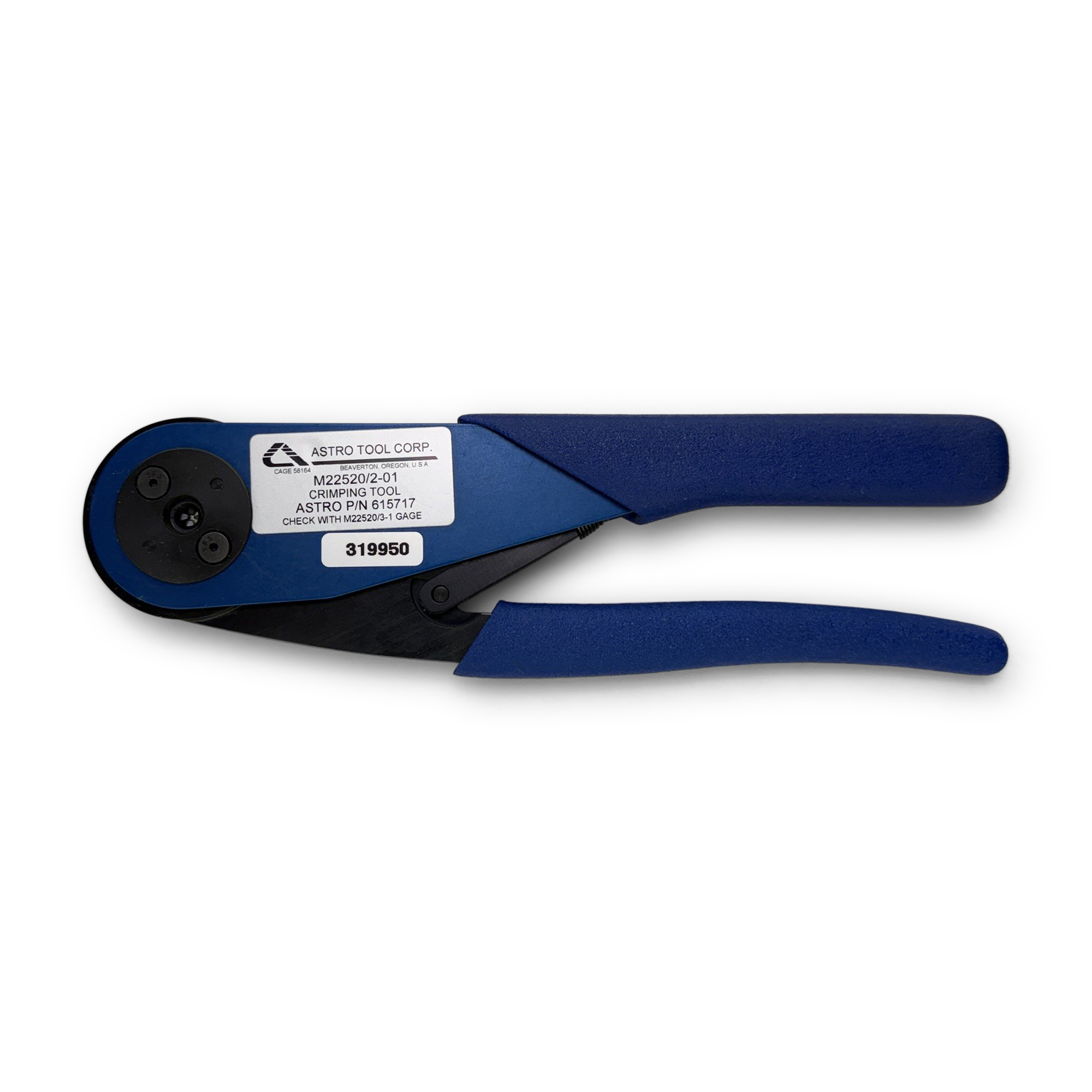

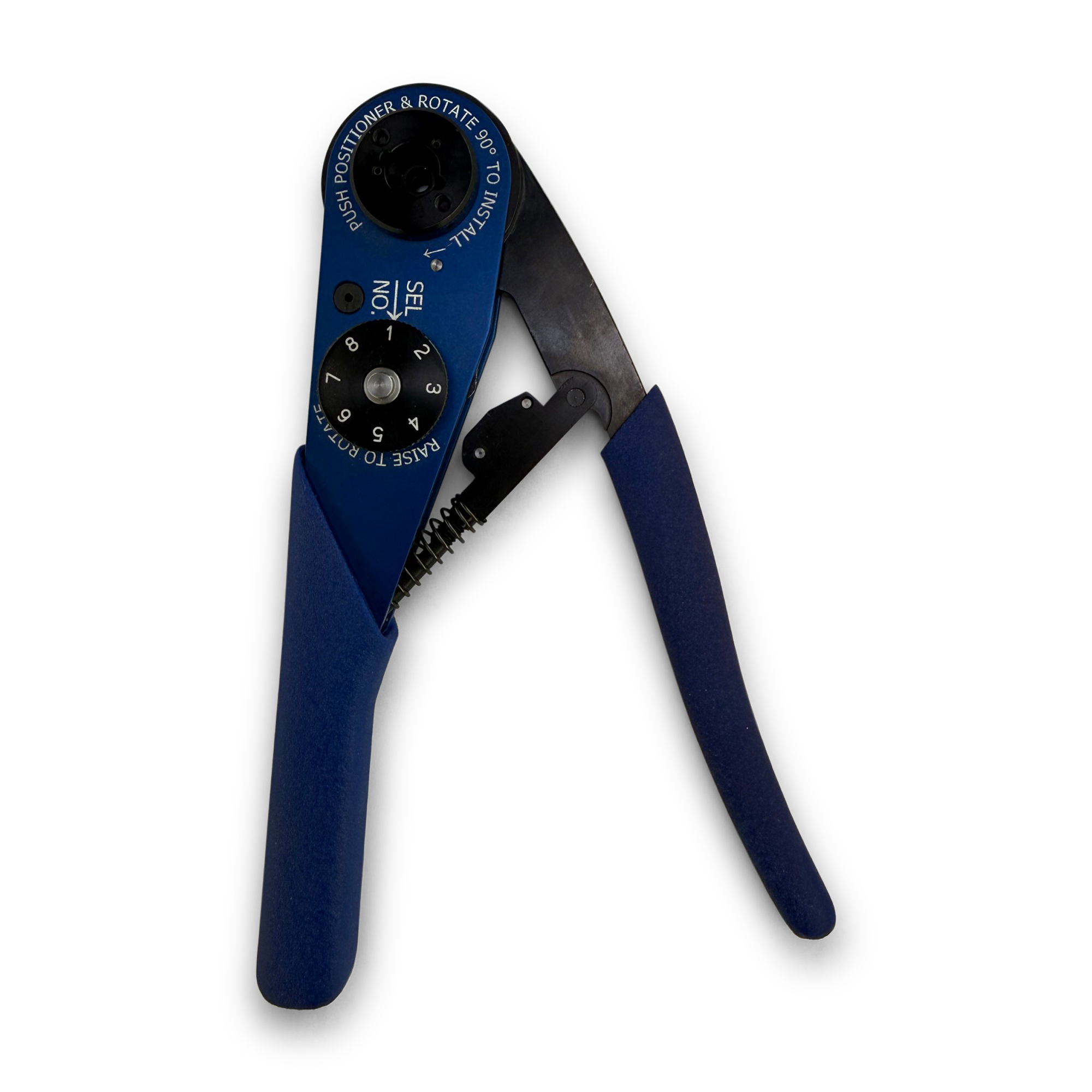

The 615717 (M22520/2‑01) is the industry‑standard miniature indent crimp tool for size 20–28 machined contacts used in high‑density MIL‑SPEC connector systems, including MIL‑DTL‑38999, 26482, 83723, and other aerospace‑grade families. Its ergonomic frame and precision ratchet mechanism deliver consistent, repeatable crimps required for mission‑critical wire harness production.

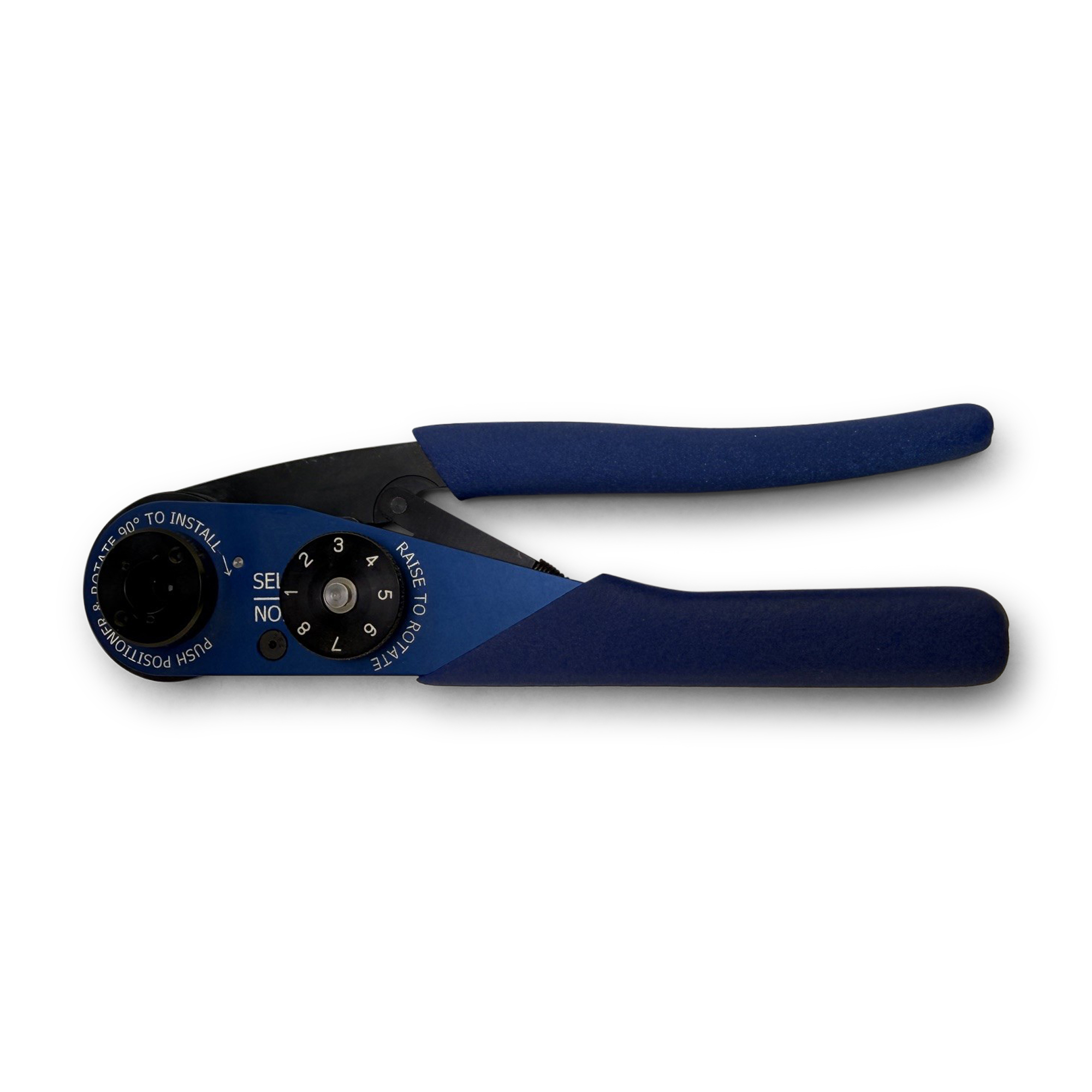

Features: • Ergonomic frame reduces operator fatigue • Dial‑selectable crimp setting • 8‑indent crimp for uniform wire barrel compression • Controlled‑cycle ratchet ensures full crimp completion • Direct equivalent to the DMC AFM8 • Requires a bayonet‑style positioner matched to the contact part number

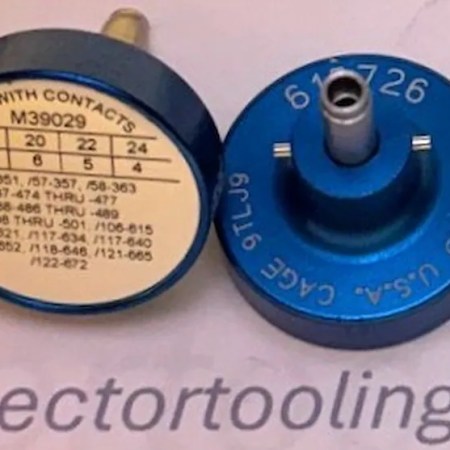

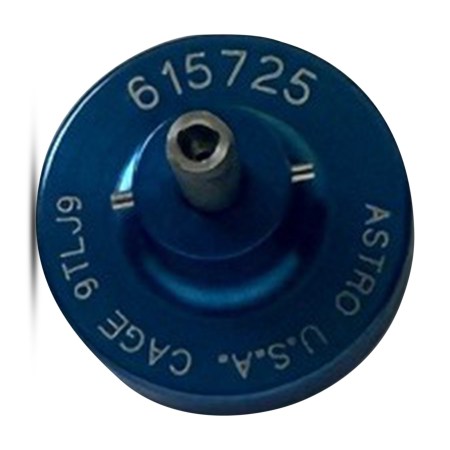

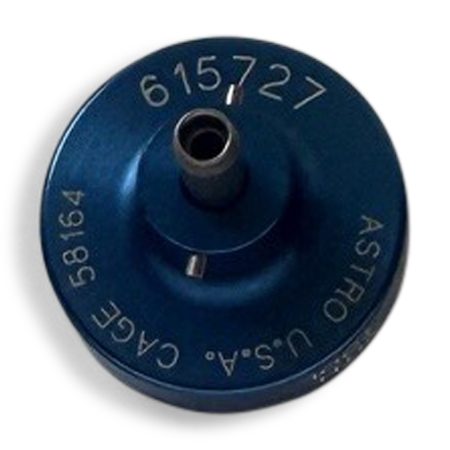

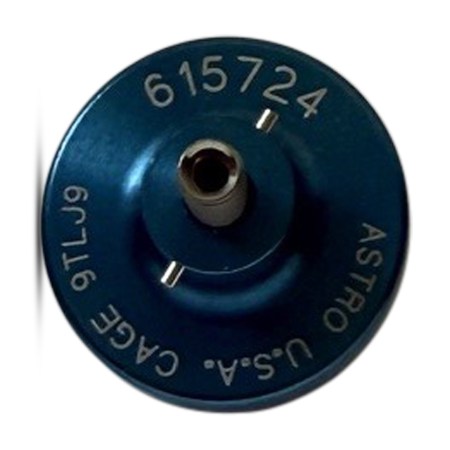

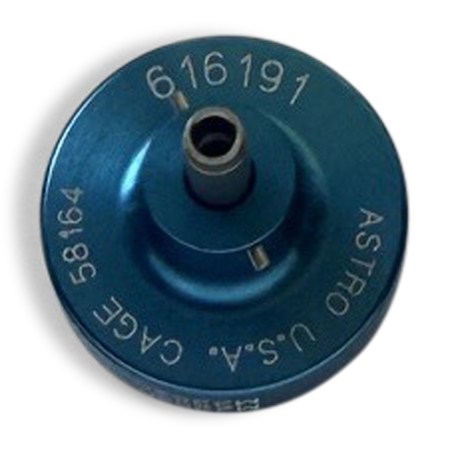

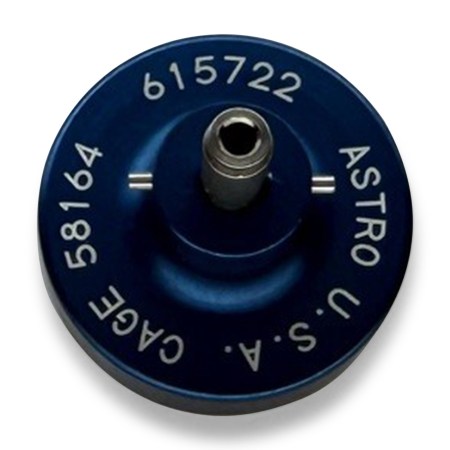

Compatible Positioners: • 615724 (K13‑1) • 615723 (K40) • 615722 (K41) • 615725 (K42) • 615726 (K43) • 615727 (K287) • 616191 (K267-1) • M22520/2‑XX equivalents

For exact positioner selection, provide your connector or contact part numbers and Customer Service will match the correct head.

Specifications: • Wire Sizes: 20–28 AWG • Crimp Type: 8‑indent • Adjustment: Dial‑selectable • Ratchet: Controlled‑cycle • Standard: MIL‑DTL‑22520/2 • Tool Type: Miniature hand‑operated crimp tool

Common Applications: • High‑density aerospace harness assembly • Military and defense wiring • Avionics and mission‑critical electronics • Machined pin and socket contacts • 38999, 26482, 83723, and similar connector systems

What’s Included: • 615717 Crimp Tool (M22520/2‑01) • Positioners sold separately

Cross‑Reference Part Numbers: AFM8, M22520/2‑01, 357‑100, 359‑8102‑010, 4191505‑2, TC2963, TC1652, 995‑0002‑293, 8476‑01, 995‑0001‑584, 057‑0463‑12, CT‑1, 809‑015,601966-1 .
