Description

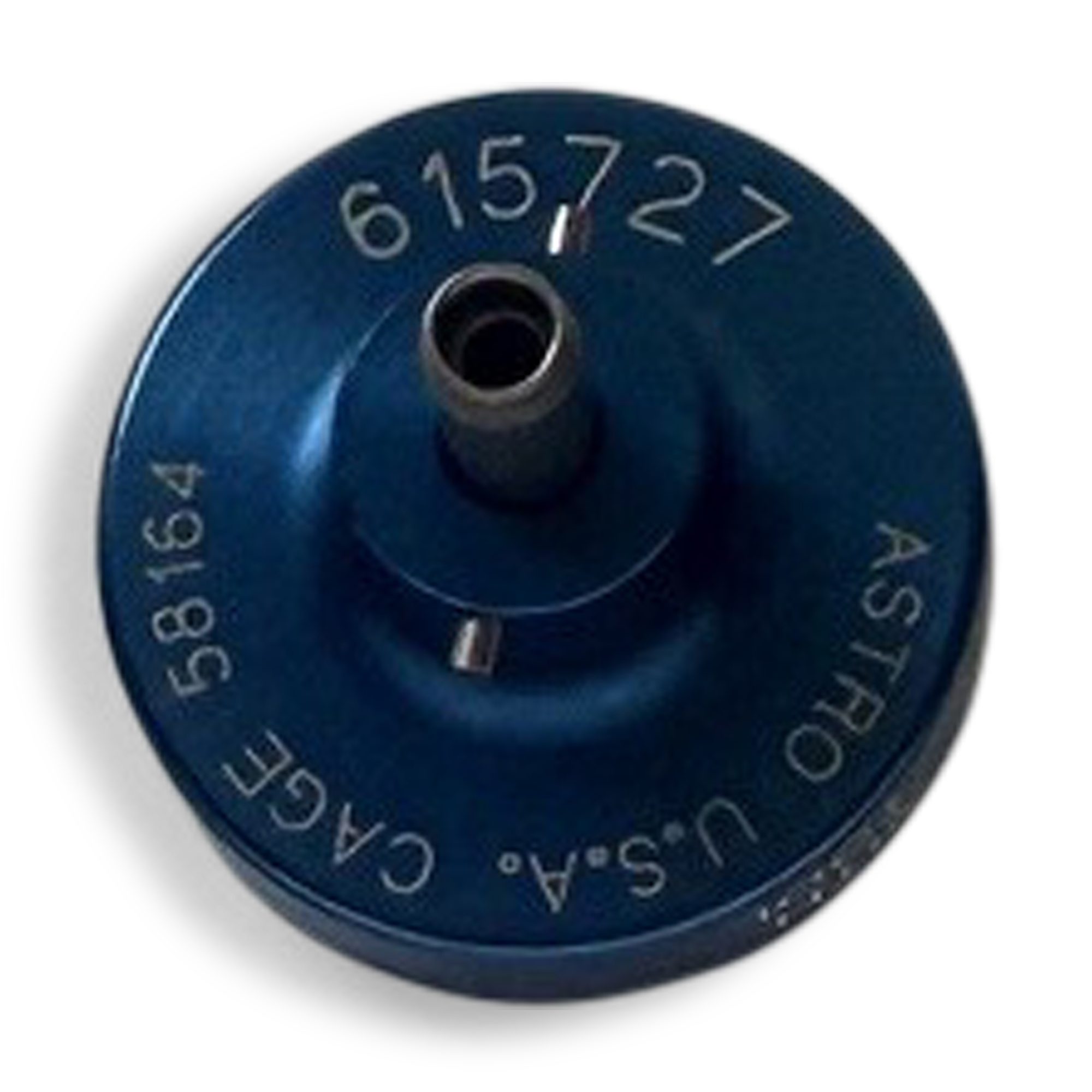

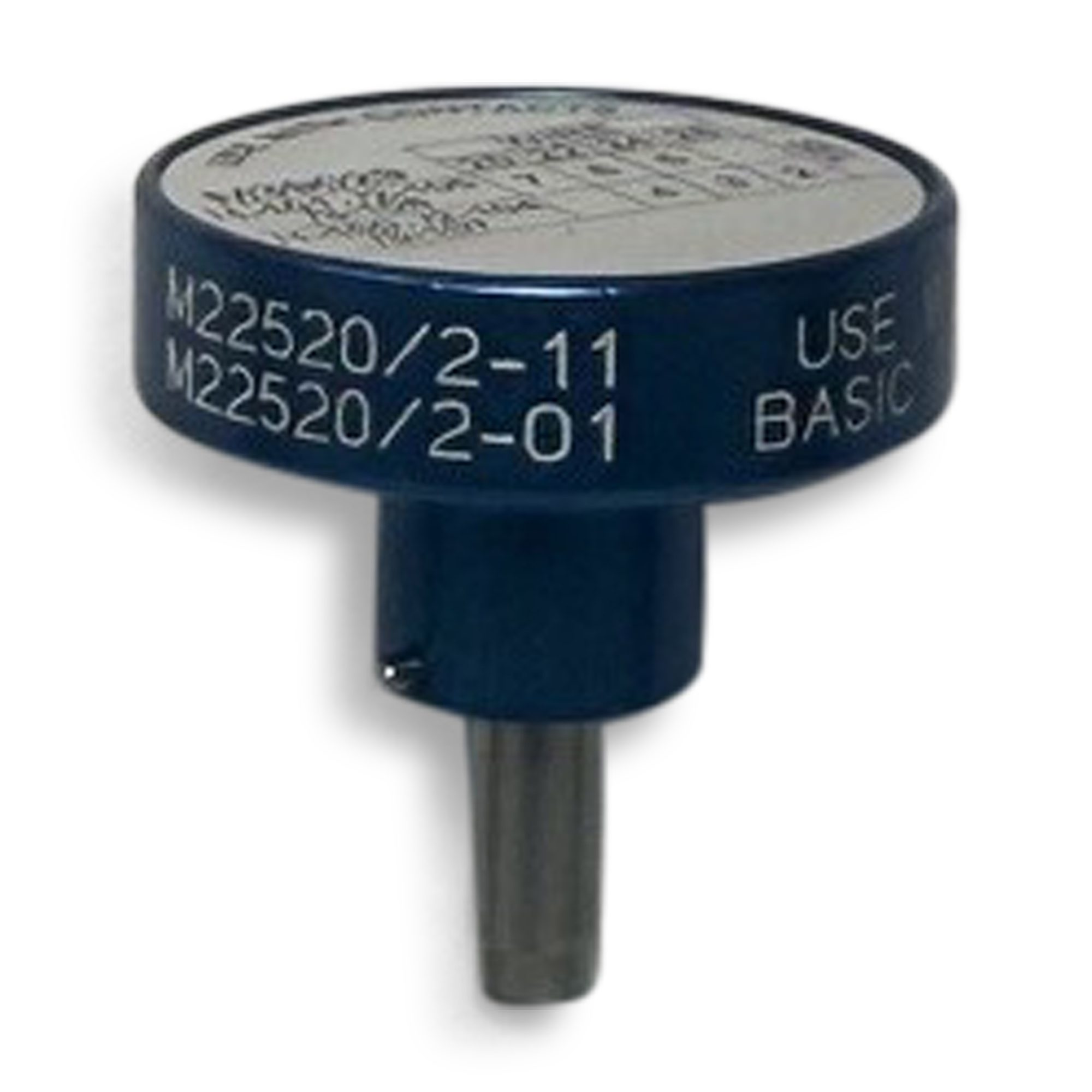

The 615727 (AS22520/2-11) (DMC K287 equivalent) is a military-grade bayonet-style positioner engineered for ultra-precise crimp localization. Designed to mount seamlessly onto miniature four-indent crimp tool frames like the M22520/2-01 (Astro 615717 / DMC AFM8), this locator ensures repeatable crimp location, depth and concentricity for size 20 and 22 machined pin and socket contacts across specialized rectangular and terminal junction systems.
| Manufacturer / Standard | Cross-Reference Part Number |
|---|---|
| Primary Brand OEM Part Number | 615727, K287 |
| Active Governing Specification (Mil-Spec) | SAE AS22520/2-11 (formerly M22520/2-11 / MIL-DTL-22520/2) |
| National Stock Number (NSN) | 5120-01-335-8629, 5120-00-017-3934, |
| Connector Platform Standard | MIL-DTL-81659 Series I, MIL-T-81714 Terminal Junctions, Disconnectable Wire Splices |
| Manufacturer Cross-References | DMC K287, 06561-247-011, 22-111, 359-8102-110, 1-601966-5, CP-15, 22520-2-11 |
| Accommodated AS39029 Contact Numbers | M39029/1-100, M39029/1-101, M39029/2-104, M39029/2-105, M39029/3-107, M39029/3-108 |
| Accommodated MS / Other Contact Standards | Size 20 and 22 Pin & Socket Machined Contacts (20-22 AWG Range) |
| What’s Included | • 615727 Positioner (M22520/2-11) • Crimp tool frame sold separately (Compatible with M22520/2-01 / AFM8 / 615717) |
MADE IN THE USA!
