Description

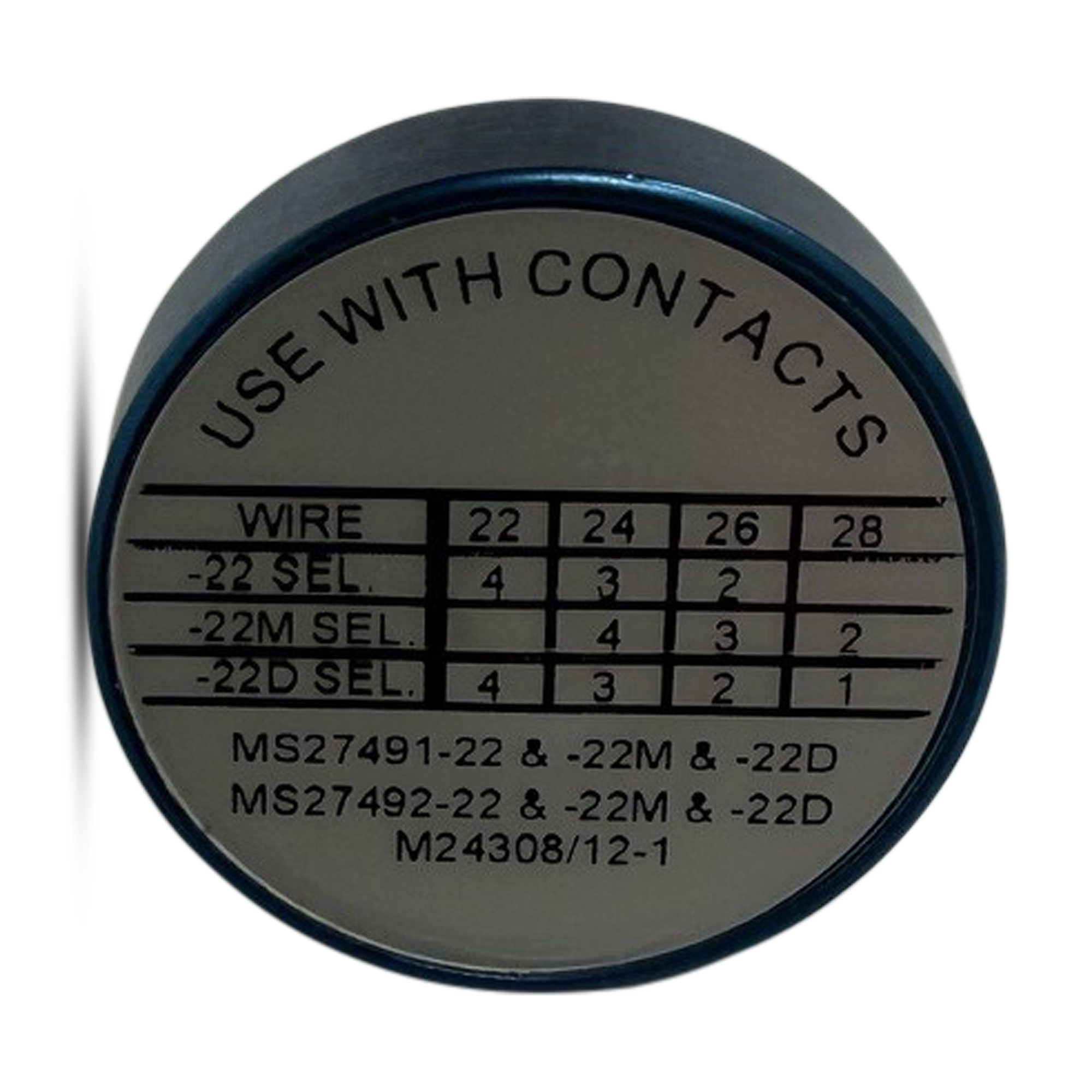

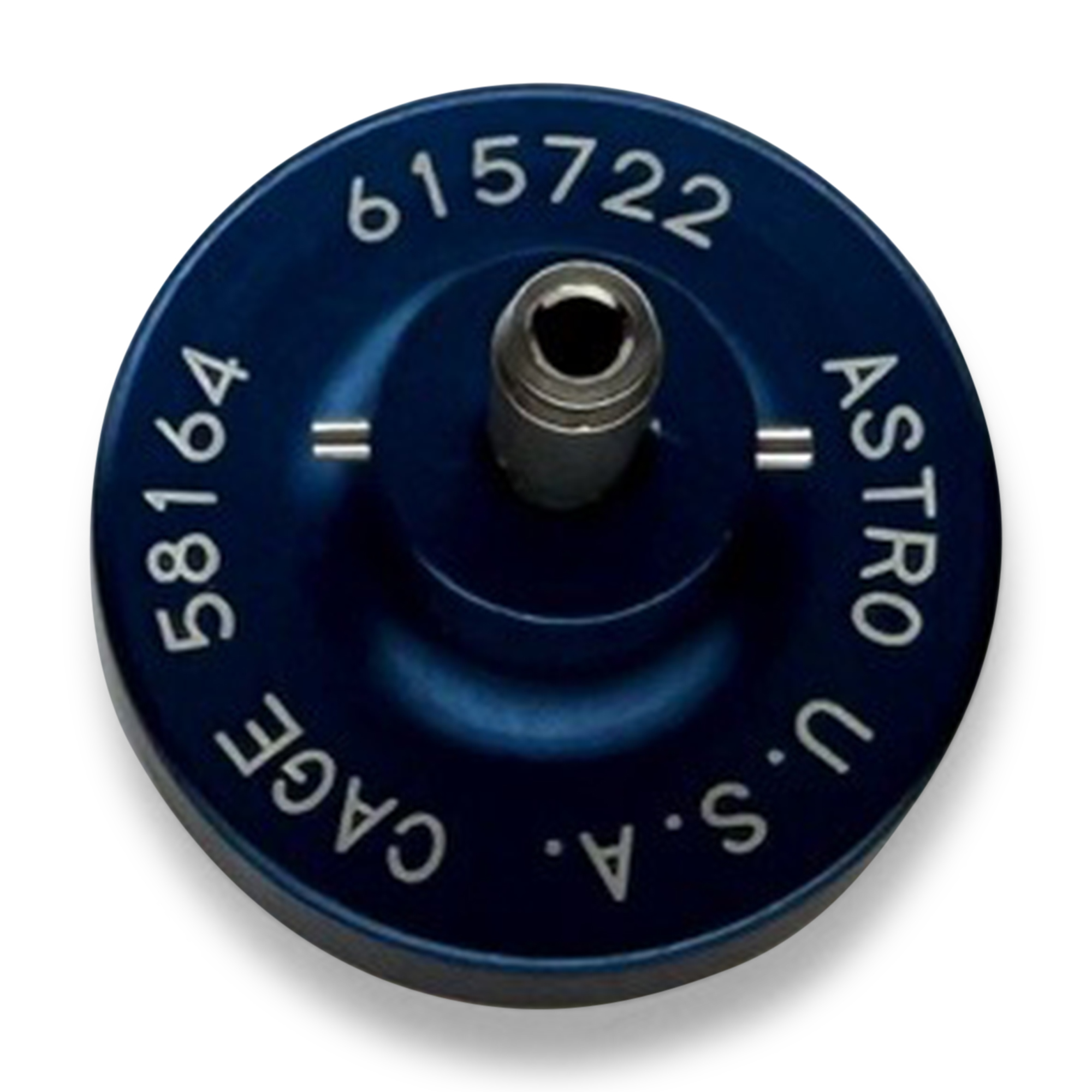

The Astro Tool 615722 (AS22520/2-06) is a high-performance, military-grade bayonet-style tool positioner qualified to the active SAE AS22520/2-06 specification. Engineered to mount securely onto miniature indent crimp tool frames like the AS22520/2-01 (615717), it delivers precise crimp location for size 22 machined pin and socket contacts in sub-miniature circular connector systems.
What’s included: 615722 (M22520/2-06) Crimp Tool sold separately
Replaces MS3198-6P
| Manufacturer / Standard | Cross-Reference Part Number |
|---|---|
| Primary Brand OEM Part Number | 615722, Astro Tool 615722 |
| Active Governing Specification (Mil-Spec) | SAE AS22520/2-06 (formerly M22520/2-06 / MIL-C-22520/2-06) |
| National Stock Number (NSN) | 5120-00-017-3809 (Primary Standard), 5120-01-335-8624, 5120-01-527-6957 |
| Manufacturer Cross-References | DMC K41, Amphenol 22-106, TE 294-1919, ITT 359-8102-060, CMS CP-11, TP1696, TP1653, 8476-06, 057-0515-32, 809 811, 809-811, 22-106, 359-8102-060,4191505-013, 5-1850-300, 06561-247-041, 22520-2-06, MS3198-6P (Historical). |
| Connector Platform Standard | MIL-DTL-38999 Series I/II/III/IV, MIL-DTL-26482, MIL-DTL-83723 Series (Size 22) |
| Accommodated Contacts | MS27491-22, MS27491-22M, MS27491-22D, MS27492-22, MS27492-22M, MS27492-22D, M24308/12-1, M39029/57-354, M39029/57-355, M39029/57-356, M39029/89-494, M39029/89-495, M39029/89-496, M39029/89-497, M39029/92-351 |
| Tooling Frame Compatibility | Mounts directly onto miniature hand crimp tools (615717, SAE AS22520/2-01, DMC AFM8 series) |
MADE IN THE USA!
