Description

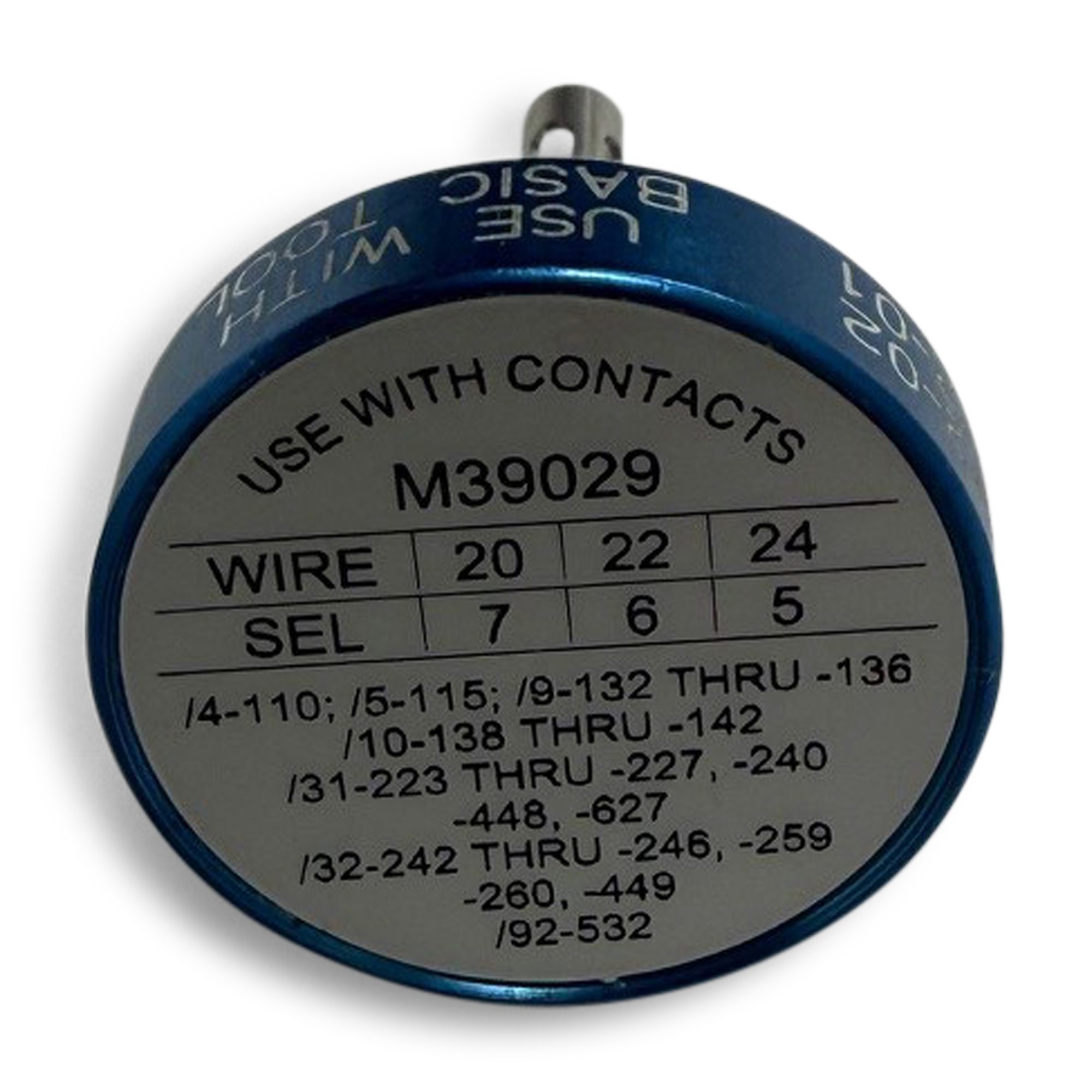

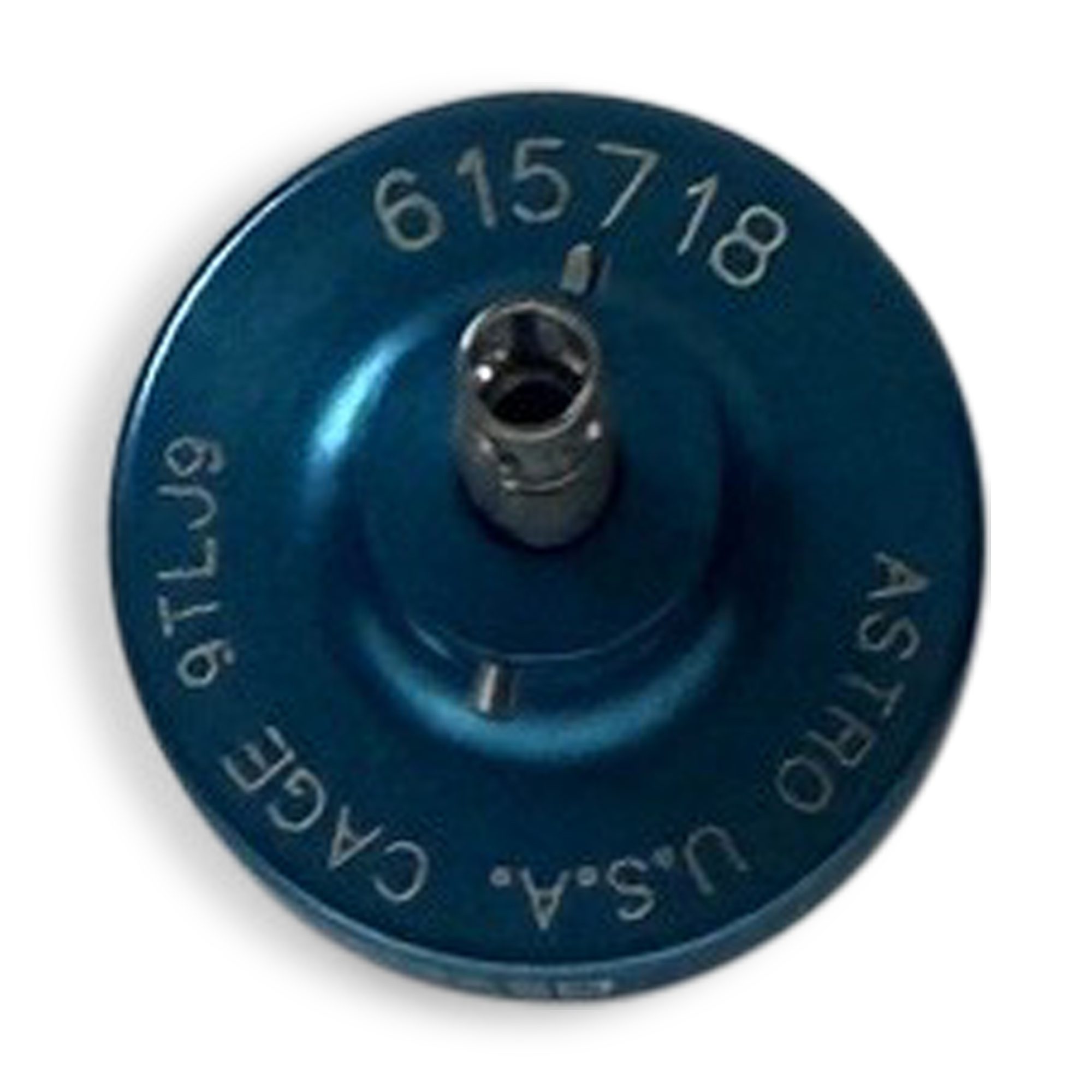

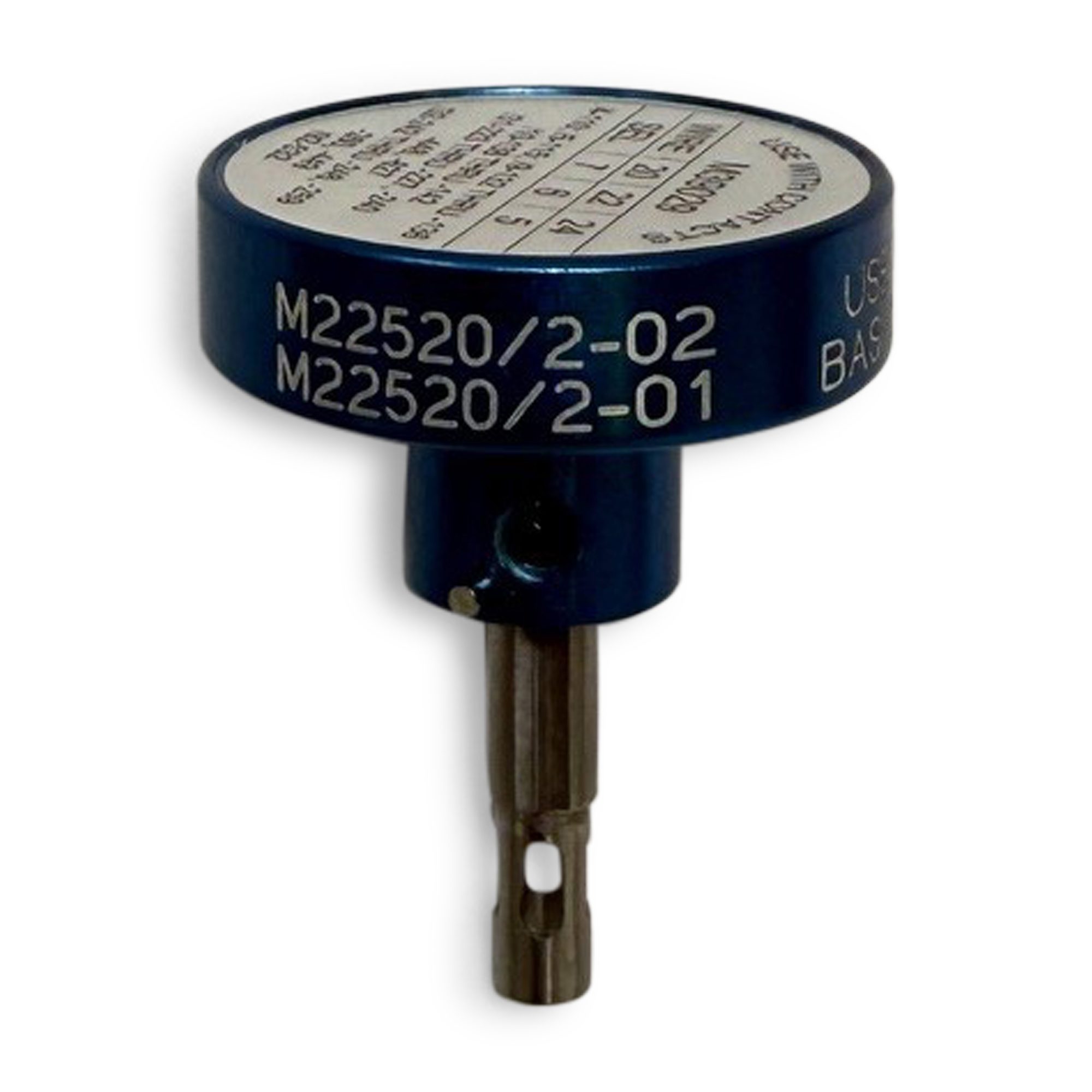

The Astro Tool 615718 (AS22520/2-02 is a high-reliability, military-grade bayonet positioner designed for precise crimp localization. This tool works natively with miniature crimp tool frames, such as the M22520/2-01 (Astro 615717 / DMC AFM8), to ensure consistent, repeatable terminations on size 20 pin and socket contacts across specialized aerospace, military, and commercial connector platforms.
| Manufacturer / Standard | Cross-Reference Part Number |
|---|---|
| Primary Brand OEM Part Number | 615718, K1S |
| Active Governing Specification (Mil-Spec) | SAE AS22520/2-02 |
| National Stock Number (NSN) | 5120-00-165-3913, 5120013358592, 5120001653913, 5120-01-335-8592 |
| Connector Platform Standard | MIL-DTL-26482, MIL-DTL-38999 Series I/II/III, MIL-DTL-83723, MIL-DTL-26500, SAE AS50151 (Formerly MIL-C-5015) |
| Manufacturer Cross-References | DMC K1S, Astro 615718, Amphenol 22-102, TE 601966-2, ITT Cannon 995-0001-326, MS3198-1PA, 59-8102-020, 06519-432-017, 613382, 8476–02, CP-1, 22520-2-02 |
| Accommodated AS39029 Contacts | M39029/4-110, M39029/5-115, M39059/9-132, M39059/9-133, M39059/9-134, M39059/9-135, M39059/9-136, M39029/10-138, M39029/10-139, M39029/10-140, M39029/10-141, M39029/10-142, M83723/33-20, M83723/34-20, M39029/31-223, M39029/31-224, M39029/31-225, M39029/31-226, M39029/31-227, M39029/31-240, M39029/31-241, M39029/31-448, M39029/32-242, M39029/32-243, M39029/32-245, M39029/32-246, M39029/32-259, M39029/32-260, M39029/32-449, M39029/92-532, EN3155-004M2020, EN3155-005F2020. |
| Accommodated Other Contact Standards | MS3192-20, MS3193-20, MS24254-20, MS18134-20, MS18136-20, M83723/33, M83723/34, M39059/9 |
| What’s Included | Astro Tool 615718 Size 20 Bayonet Positioner Assembly |
MADE IN THE USA!
