Description

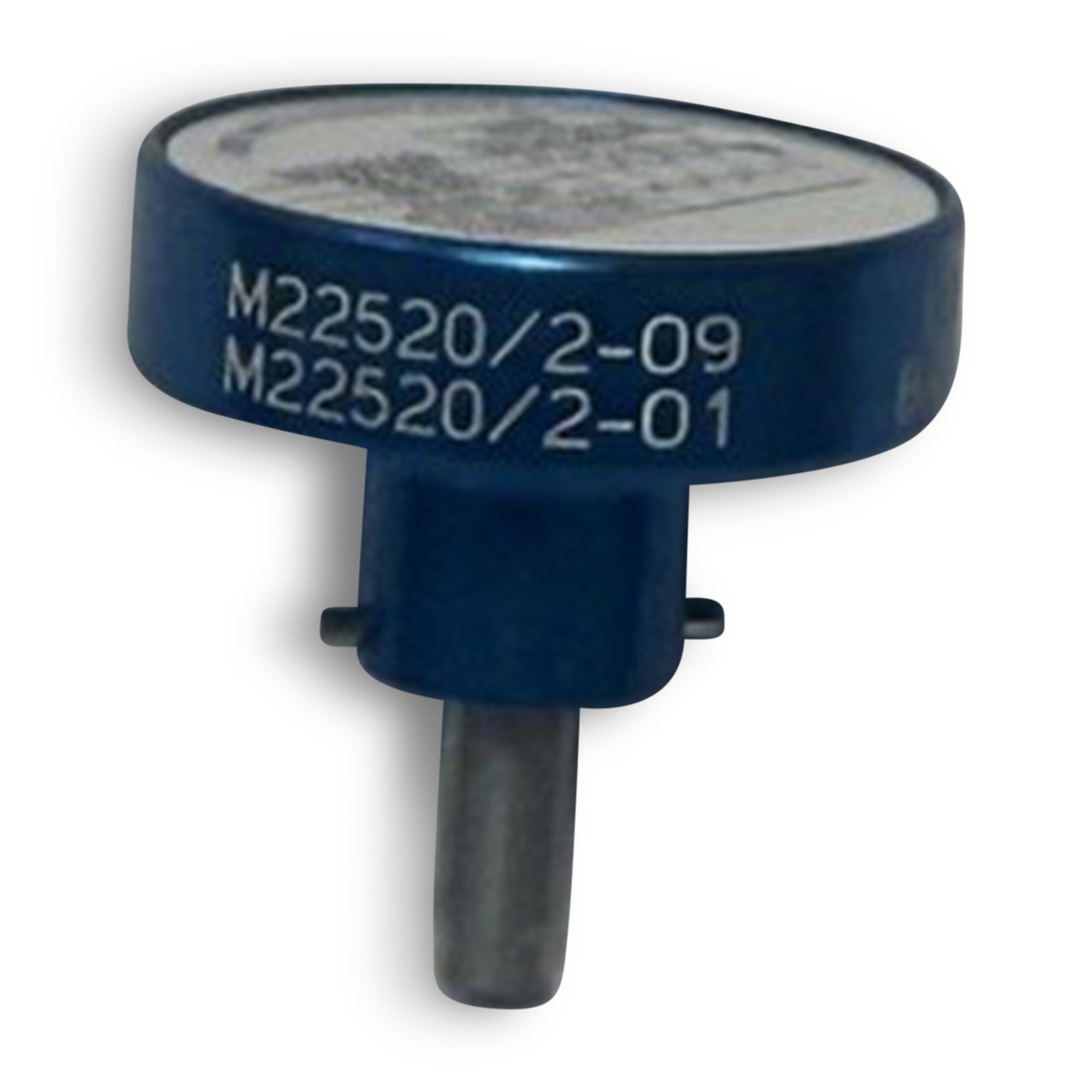

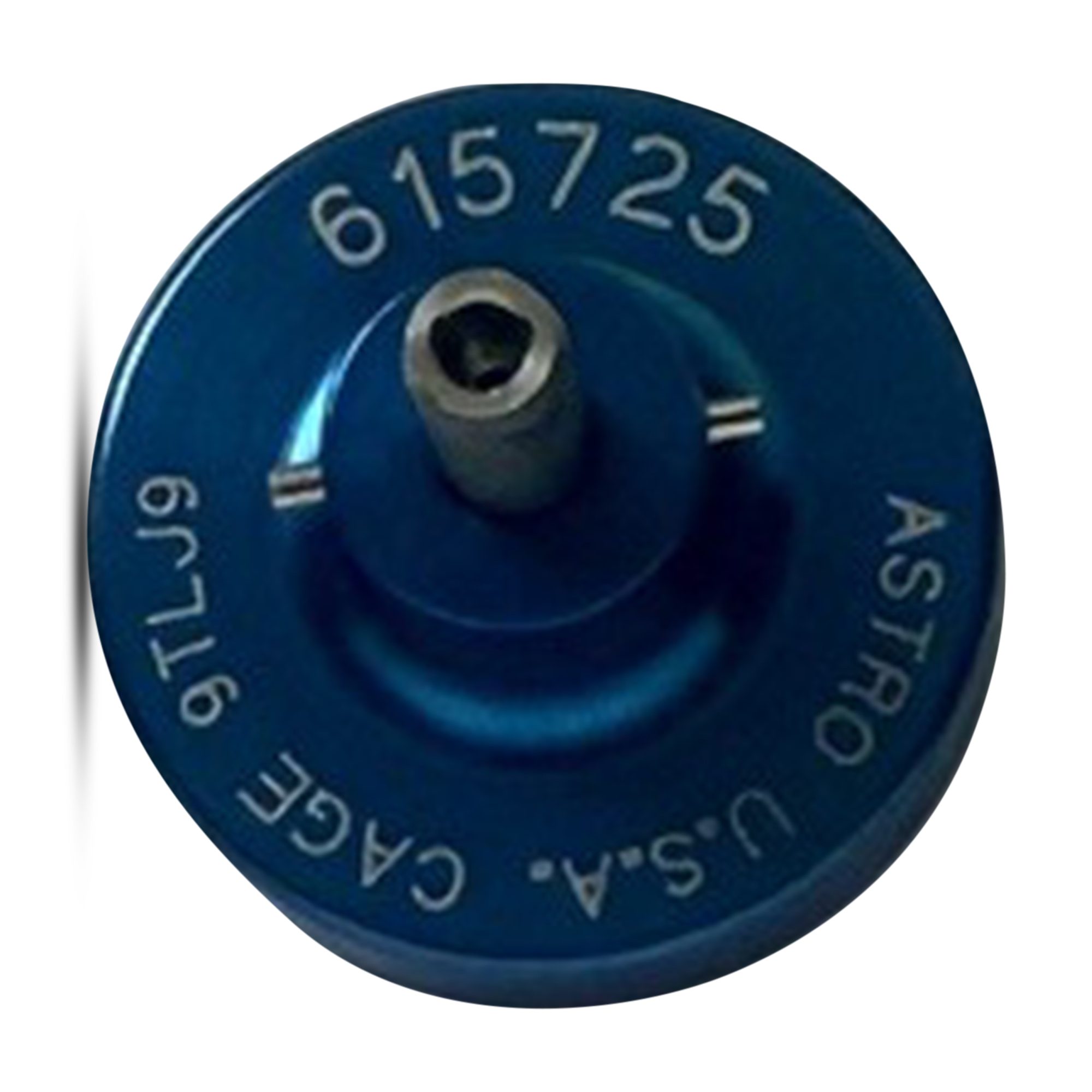

615725 (M22520/2‑09) is a bayonet‑style positioner designed for use with the M22520/2‑01 (615717 / AFM8) miniature crimp tool. Accurately locates crimps on size 22 pin contacts contacts installed in MIL-C-24308 subminiature rectangular and MIL-C-38999 circular connectors. Contact numbers: MS27493-22, MS27493-22M, MS27493-22D, MS27494-22, MS27494-22M, MS27494-22D, MS24308/13-1, M39029/58-360, M39029/58-361, M39029/58-362, M39029/87-470, M39029/87-471, M39029/87-472, M39029/87-473 ensuring consistent, repeatable crimps in aerospace, defense, and mission‑critical harness production.

Features: • Bayonet‑style positioner for fast, secure attachment • Ensures correct contact depth and alignment • Supports size 22 pin machined contacts • Direct equivalent to the DMC K42 • Compatible with the M22520/2‑01 (615717 / AFM8) crimp tool

Compatible Crimp Tools: • M22520/2‑01 (AFM8 / 615717) • Equivalent miniature indent crimp tools

Common Connector Families: • MIL‑C‑24308 (D‑Sub) • MIL‑C‑38999 • MIL‑C‑81659 • Other high‑density circular and rectangular connector systems

Specifications: • Contact Size: 22 AWG (socket) • Tool Interface: Bayonet‑style • Standard: MIL‑DTL‑22520/2 • Tool Type: Positioner / Locator

What’s Included: • 615725 Positioner (M22520/2‑09) • Crimp tool sold separately

Cross‑Reference Part Numbers: TP1696, TP1653, 8476‑06, 057‑0515‑32, 809811, 809‑811, 809 811, CP‑12, K42, M22520/2‑09, MS3198‑6P.
