Description

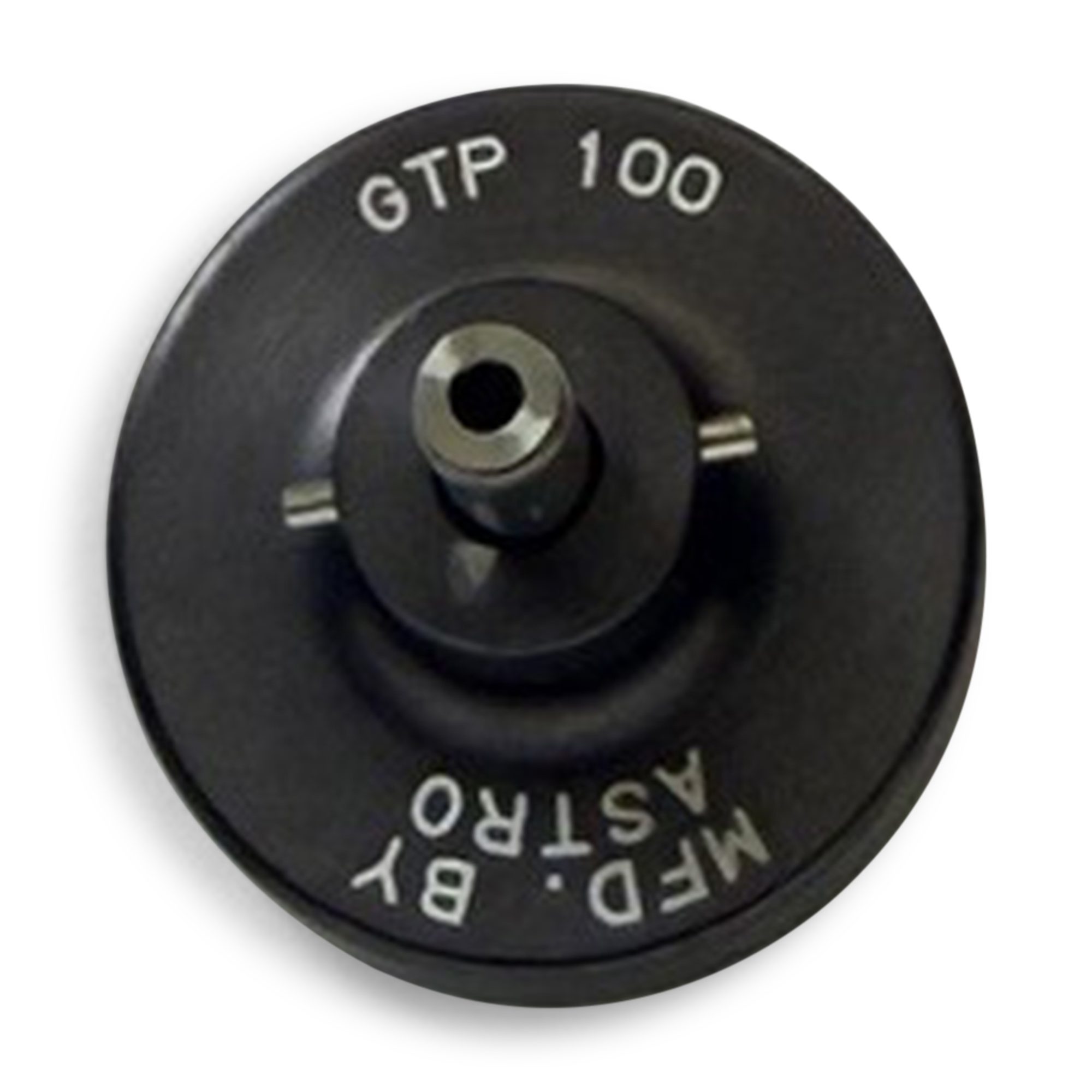

GTP100 (809-005) is a premium, military-grade bayonet-style tool positioner designed for ultra-precise crimp localization. Engineered to seat directly onto miniature four-indent crimp tool frames like the active SAE AS22520/2-01 (Astro 615717 / DMC AFM8), this locator delivers dependable depth control and exact alignment for high-density circular and rectangular connector contacts in mission-critical wire harness production.
| Manufacturer / Standard | Cross-Reference Part Number |
|---|---|
| Primary Brand OEM Part Number | GTP100, 809-005 |
| Active Governing Specification (Mil-Spec) | M22520/2 Style (Compatible with SAE AS22520/2-01 tool frame infrastructure) |
| National Stock Number (NSN) | 5120-01-619-1011 |
| Connector Platform Standard | Glenair Mighty Mouse Series 809, high-density circular and rectangular platforms |
| Manufacturer Cross-References | Daniels Manufacturing Corp (DMC) K1461, Glenair 809-005, CP-1461, GTP-100 |
| Accommodated Glenair Contact Numbers | 809-001-20, 809-001-22, 809-002-20, 809-002-22, 809-003-20, 809-003-22, 809-004-20, 809-004-22, 809-005-20, 809-005-22 |
| Accommodated Pin / Socket Sizing | Size 20 and Size 22 Machined Pin & Socket Contacts (20–22 AWG Range) |
| What’s Included | • GTP100 Positioner (809-005) • Crimp tool frame sold separately (Compatible with AS22520/2-01 / AFM8 / 615717) |
MADE IN THE USA!
