Description

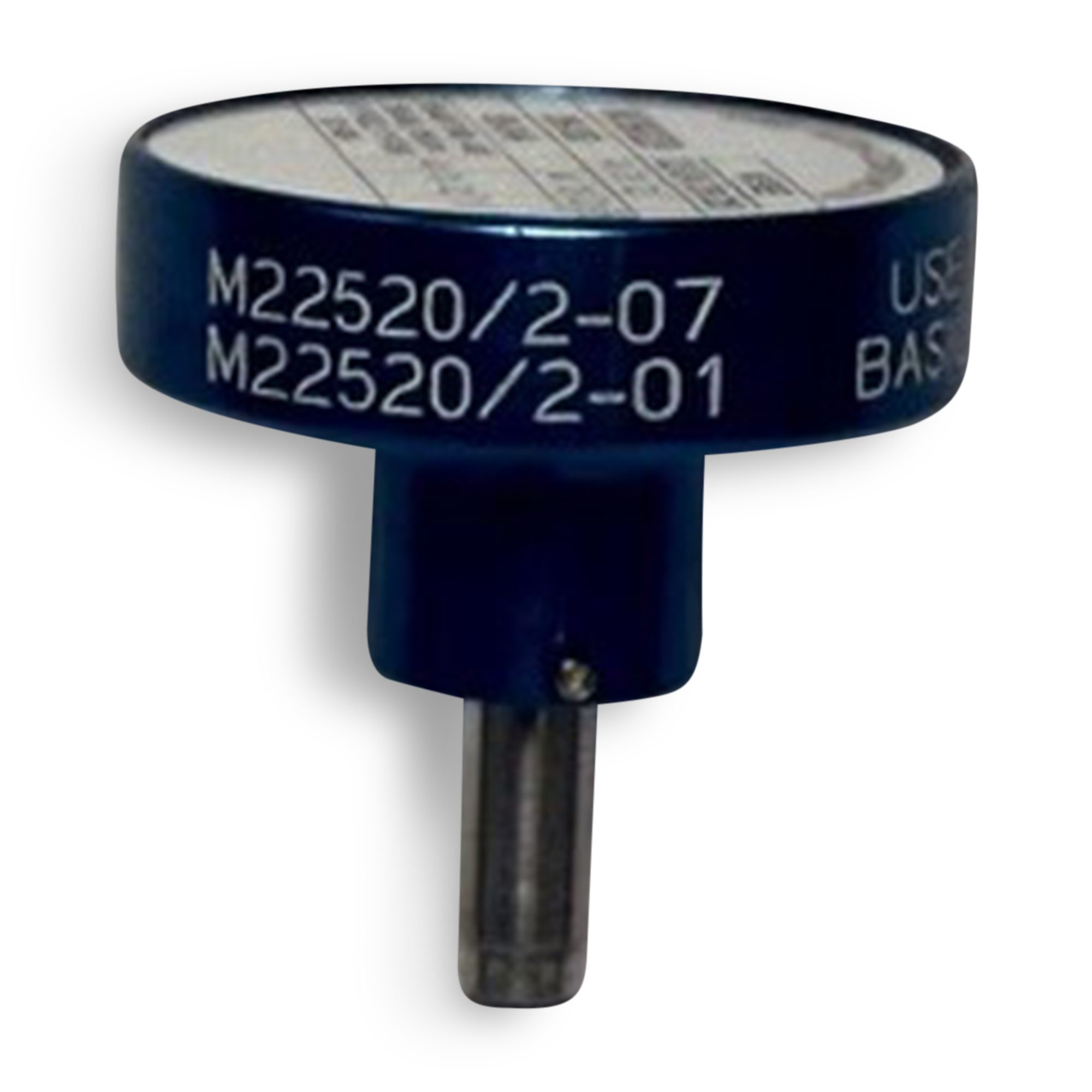

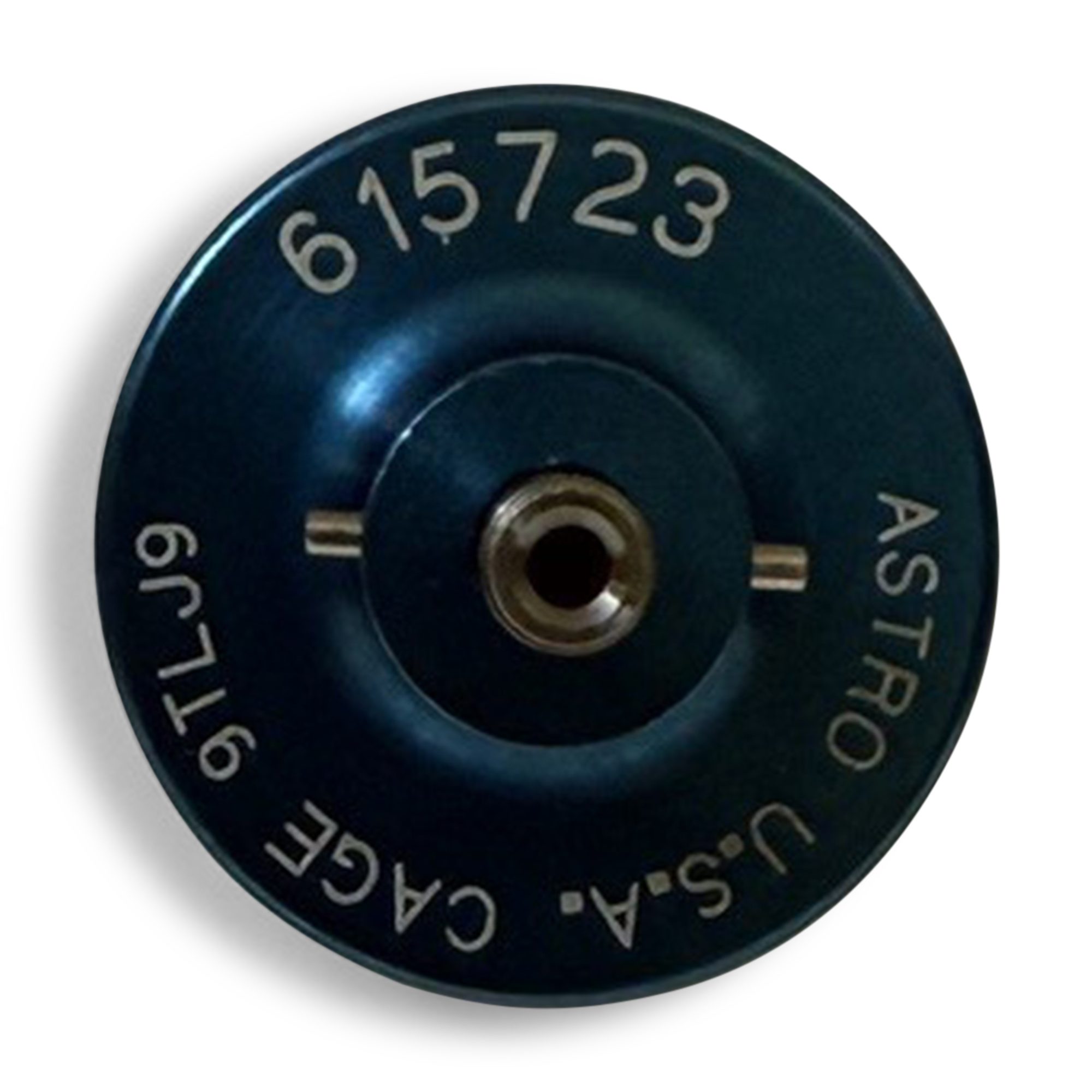

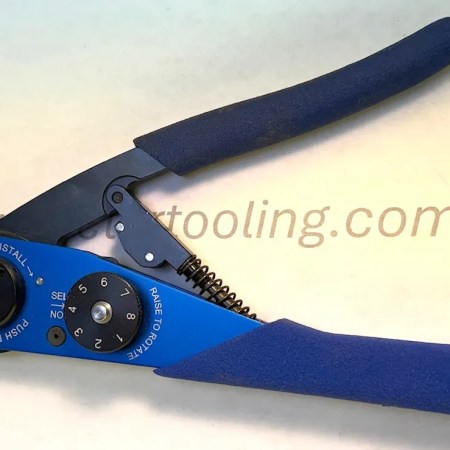

The 615723 (AS22520/2-07) is a bayonet-style positioner designed for use with the M22520/2-01 (615717) miniature crimp tool. The Astro Tool is engineered to seat natively into miniature crimp tool frames such as the AS22520/2-01 (Astro 615717 / DMC AFM8), this specialized positioner ensures accurate crimp depth and concentricity for size 22 socket (female) contacts utilized in sub-miniature circular connector systems.
| Manufacturer / Standard | Cross-Reference Part Number |
|---|---|
| Primary Brand OEM Part Number | 615723, K40 |
| Active Governing Specification (Mil-Spec) | SAE AS22520/2-07 (formerly M22520/2-07 / MIL-C-22520/2-07) |
| National Stock Number (NSN) | 5120-00-017-3827, 5120-01-478-3377, 5120-01-335-8625 |
| Connector Platform Standard | MIL-DTL-38999 Series I/II/III/IV (Circular Formats) |
| Manufacturer Cross-References | Daniels Manufacturing Corp DMC K40, 1-601966-3, 22-107, 294-1920, 359-8102-070, 5120-00-017-3827, 613641, 6155-0747-230, 8476-07, 995-0001-733, CP-16, K40, M22520/2-07, 22520-2-07, MS3198-7P (Historical Alternative) |
| Accommodated AS39029 Contacts | M39029/56-348, M39029/56-349, M39029/56-350, M39029/88-492, M39029/88-483, M39029/88-484, M39029/88-485 |
| Accommodated MS Contact Standards | MS27490-22, MS27490-22M, MS27490-22D |
| What’s Included | Astro Tool 615723 Size 22 Bayonet Socket Positioner Assembly (Complete Component) |
MADE IN THE USA!
What’s Included: • 615723 Positioner (M22520/2-07) • Crimp tool sold separately
Replaces M3198-7P
