Description
For a quotation on larger qtys please contact sales@connectortooling.com

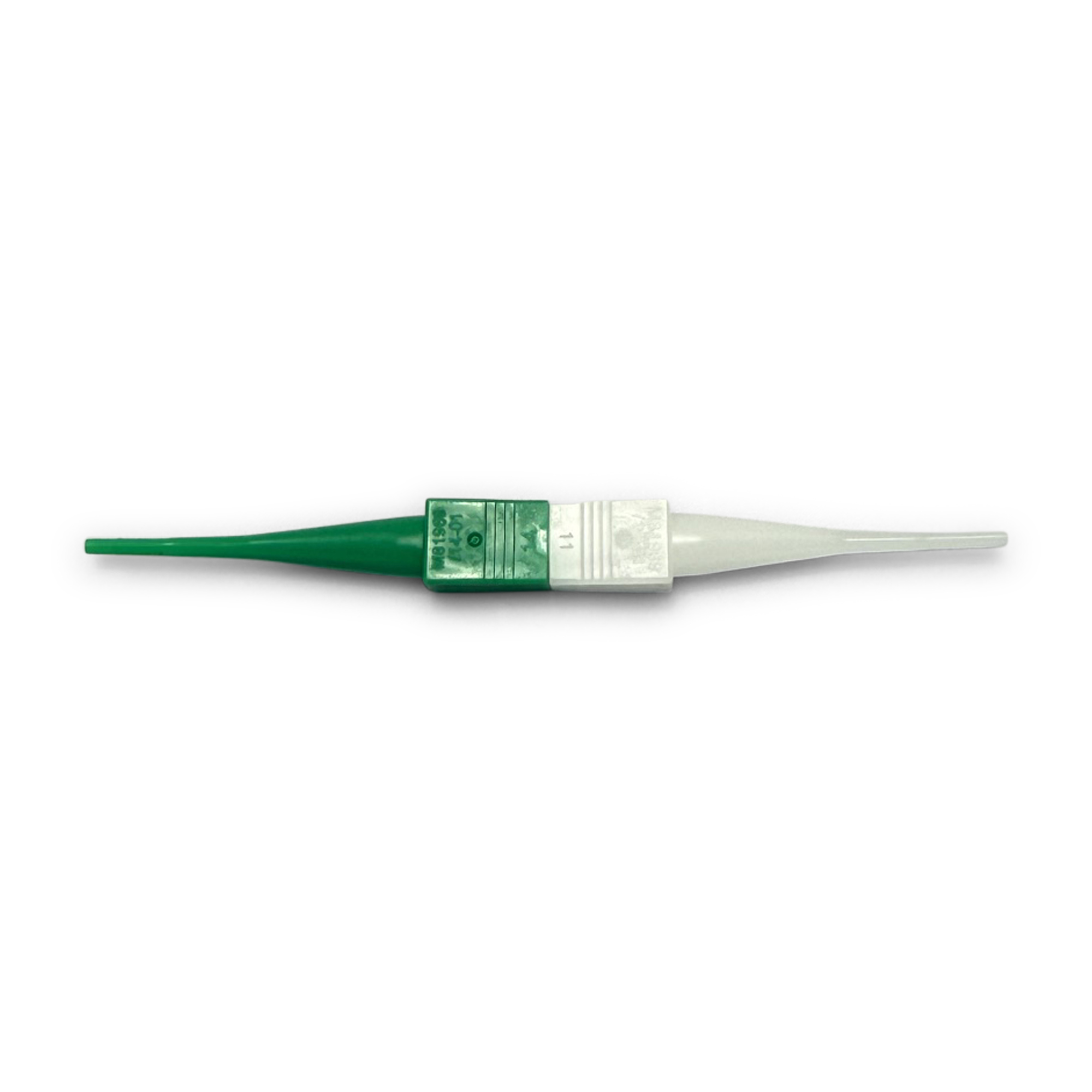

The Step’n Components M81969/14-01 is a durable, Green/White thermoplastic tool designed for Size 22D/22M connector contacts, suitable for MIL-DTL-38999, D-Sub, and other specialized series.
Replaces MS27534-22D.
| Manufacturer / Standard | Cross-Reference Part Number |
|---|---|
| Military Specification | M81969/14-01, M819691401, SAE-AS81969/14 (Formerly MIL-I-81969/14), MS27534-22D, MS2753422D, AS81969/14-01, 81969-14-01 |
| Contact Size / Color Code | Size 22D / 22M Gauge AWG / Green (Insertion) & White (Removal) |
| National Stock Number (NSN) | 5120-00-018-0575, 5120-01-367-0267, 5120-01-428-4572 |
| Manufacturer Cross-Reference | Daniels Manufacturing Corp (DMC) M81969/14-01, Amphenol Aerospace M81969/14-01, Glenair 859-020, Souriau 8599-0022, 0011-001-000, 10-528998-22D, 166-90-04-022, 274-7048-000, 294-549, 4191508-001, 5-1850-222, 5040-3601-20000, 6500-048-0022, IR-47M, 10-587507-22D, 274-7048-000. |
| Supported M39029 Contacts | M39029/56-348, M39029/57-354, M39029/58-360 (Rear-Release Pins & Sockets) |
| Compatible Connector Families | MIL-DTL-38999 Series I, II, III, IV, MIL-DTL-24308 Subminiature D-Sub (Size 22D), MIL-DTL-55302/68 & /69, MIL-DTL-83733, MIL-T-81714 Terminal Junction Modules |
What’s included: Single (1) Step’n Components M81969/14-01 Plastic Insertion and Removal Tool (Size 22M/D)

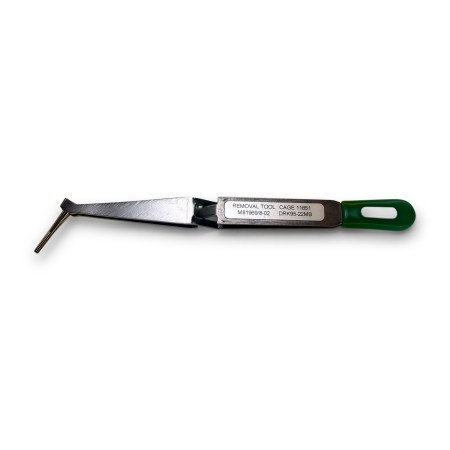

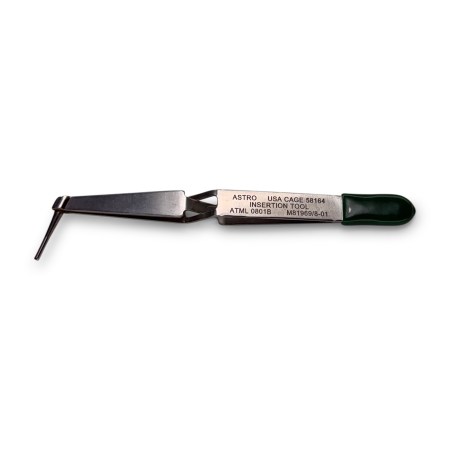

Note: Operating on a heavy industrial timeline or facing rigid, frozen internal clips? View our premium hardened solid metal alternatives: DMC DRK95-22MB or Astro Tool ATML 0801B.
MADE IN THE USA!
