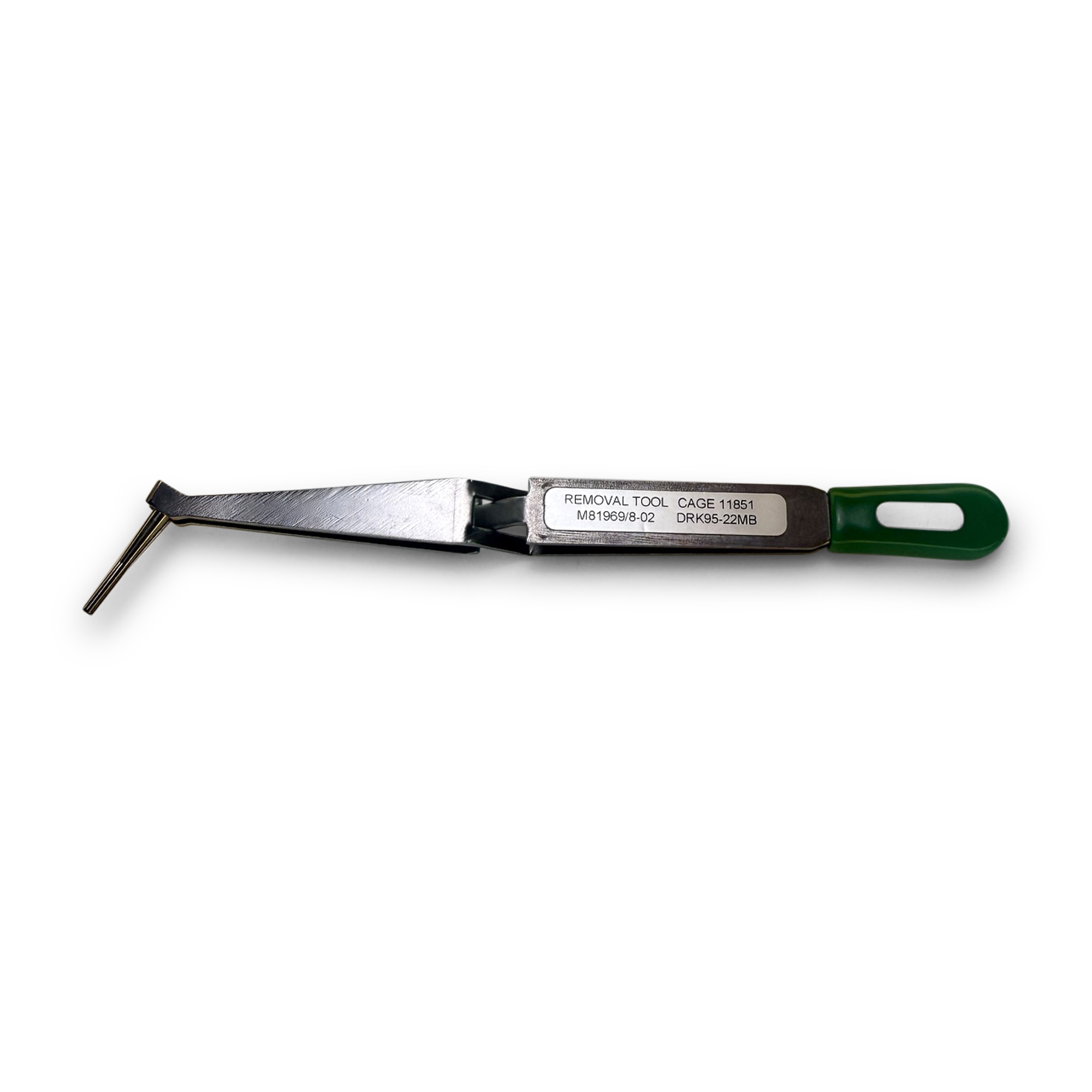

DMC DRK95-22MB (M81969/8-02) Removal Tweezer, Full Front Profile View - Astro Tool ATML 0802B Equivalent

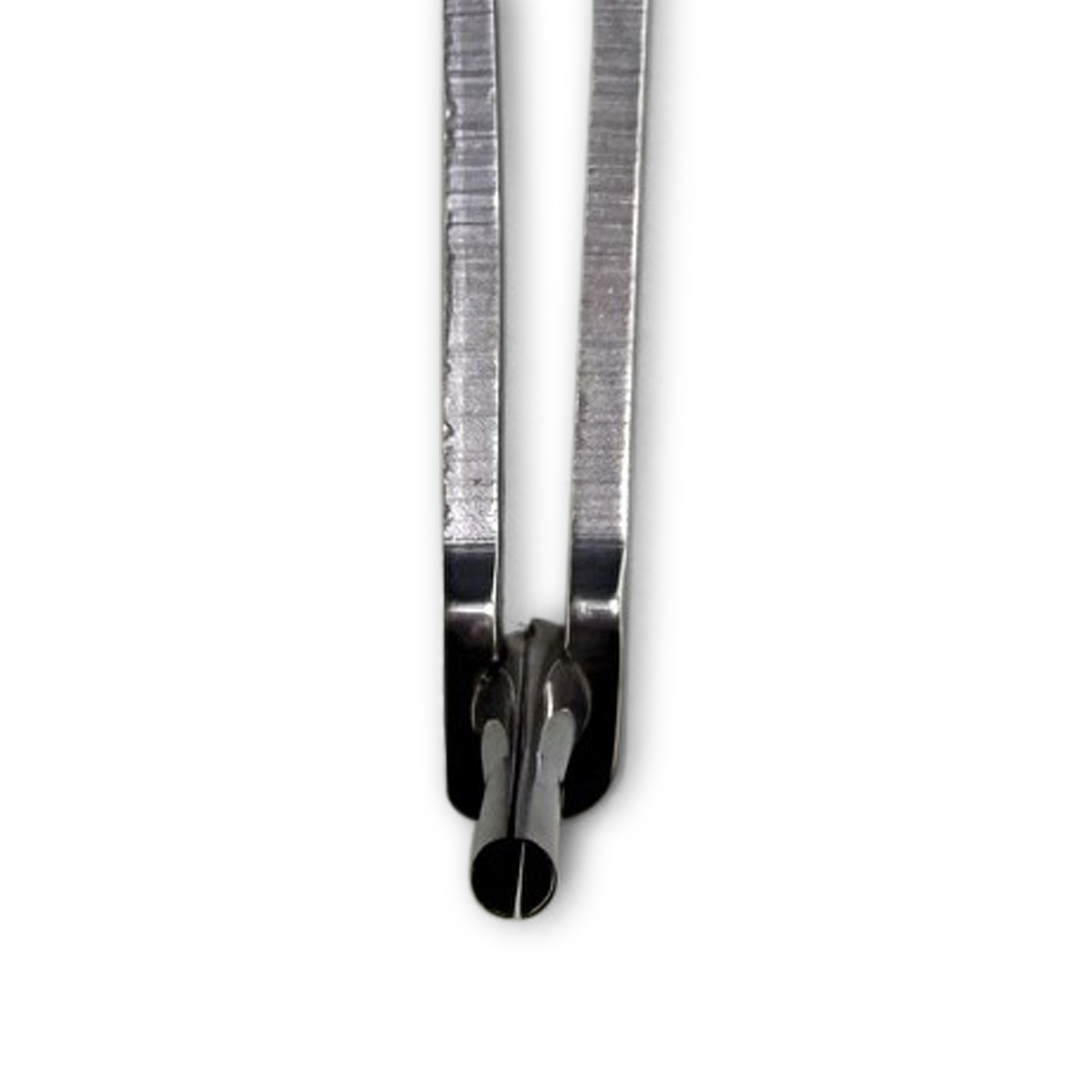

Close-up Detail of DMC DRK95-22MB Metal Extraction Tweezer Tip Profile for Size 22M and 22D Contacts - M81969/8-02 Tip

M81969/8-02 Rem Tweezer Size 22D | DMC DRK95-22MB

$155.00

—IN STOCK. SHIPS IN ONE BUSINESS DAY!!!— The Daniels Manufacturing Corp (DMC) DRK95-22MB is a Mil-Spec (AS81969/8-02) contact removal tweezer engineered for Size 22M / 22D contacts. This precision-aligned metal extraction tool is designed for tight, densely packed layouts, safely releasing internal connector retention clips without scratching mating contact plating or damaging connector cavity walls.…

SKU: DRK95-22MB
Category:
Tags: , , , , , , , , , , , , , , , ,

Description

—IN STOCK. SHIPS IN ONE BUSINESS DAY!!!— The DMC DRK95-22MB (M81969/8-02) is a military-grade, metal contact removal tweezer qualified to the active SAE AS81969/8-02 specification. Featuring a straight-tip metal extraction profile, it applies precise linear tension to safely release internal contact retention clips across dense subminiature connector layouts without deforming cavity walls.

Part Number DRK95-22MB, DRK95-22M
Active Aerospace Standard (Mil-Spec) SAE AS81969/8-02 (formerly M81969/8-02, M81969/8B-02, MS27495R22M)
NSN 5120-00-146-6558 (Primary Standard), 5120-00-127-5445
Manufacturer Cross-References Astro Tool Corp ATML 0802B, ATBX 2046, CMS ET-49, ET-49D, ET-49M, ET-49MD, Amphenol 11-8675-24, Souriau 8599-E-22C, ITT Cannon CET-22M-KJ, CET-KJ-22M, TP201421-22R, TS/4009/0194
Contact Sizing / Configuration Size 22M & 22D Gauge AWG / Machined Pins & Sockets (Removal Only)
Connector Platform Standard MIL-DTL-38999 Series I, II, III & IV Subminiature Cylindrical Connectors, MIL-DTL-24308 High-Density D-Sub Connectors, MIL-DTL-83733 Linear Disconnect Series
What’s Included • Single (1) DMC DRK95-22MB Metal Removal Tweezer • Individual Factory Protective Packaging & Compliance Documentation

MADE IN THE USA!

Additional information

Weight .25 lbs
Dimensions 8 × 3 × 2 in

Reviews

There are no reviews yet.

Be the first to review “M81969/8-02 Rem Tweezer Size 22D | DMC DRK95-22MB”

Your email address will not be published. Required fields are marked *

Related products

  • Radiall 282521002 EPXB Insert Module Extraction Tool, Main Profile View Highlighting Precision Stainless Steel Tip Geometry

    Radiall 282521002 Extraction Tool | EPX Series Module Insert

    $75.00
    Add to cart

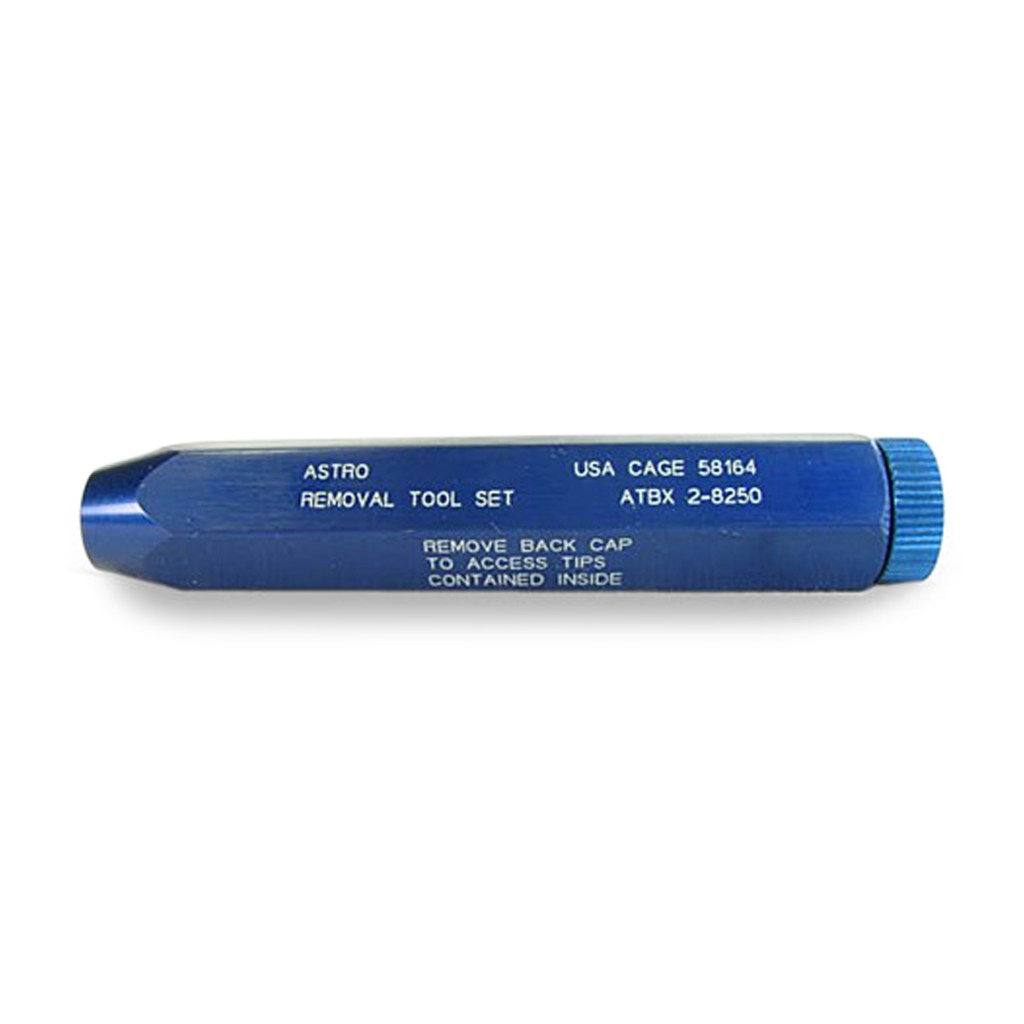

  • Astro ATBX 2-8250 Front Release Removal Tool Set, Main View Showing Hollow Handle Kit for Size 8, 12, and 16 Machined Contacts

    ATBX 2-8250 Rem Set Multi-Size | Astro (DMC DRK59)

    $235.00
    Add to cart

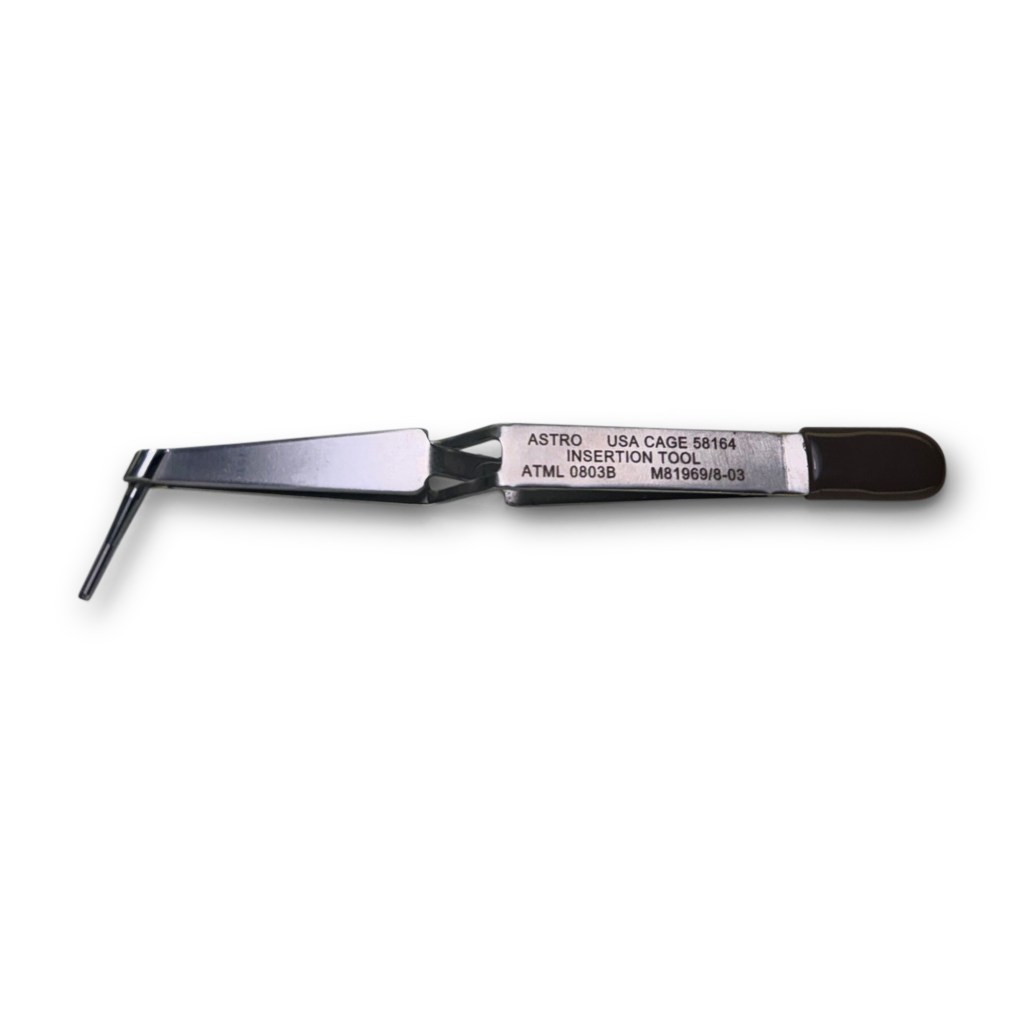

  • Astro Tool ATML 0803B metal insertion tweezer qualified to M81969/8-03, equivalent to DMC DAK95-22.

    M81969/8-03 Ins Tweezer Size 22 | Astro ATML0803B (DAK95-22B)

    $115.00
    Add to cart
  • Astro Tool ATIR 1610 metal insertion removal tweezer qualified to M81969/12-02, equivalent to DMC DRK246.

    M81969/12-02 Proprietary Version (Astro ATIR 1610) Insertion/Removal Tweezer

    $160.00
    Add to cart

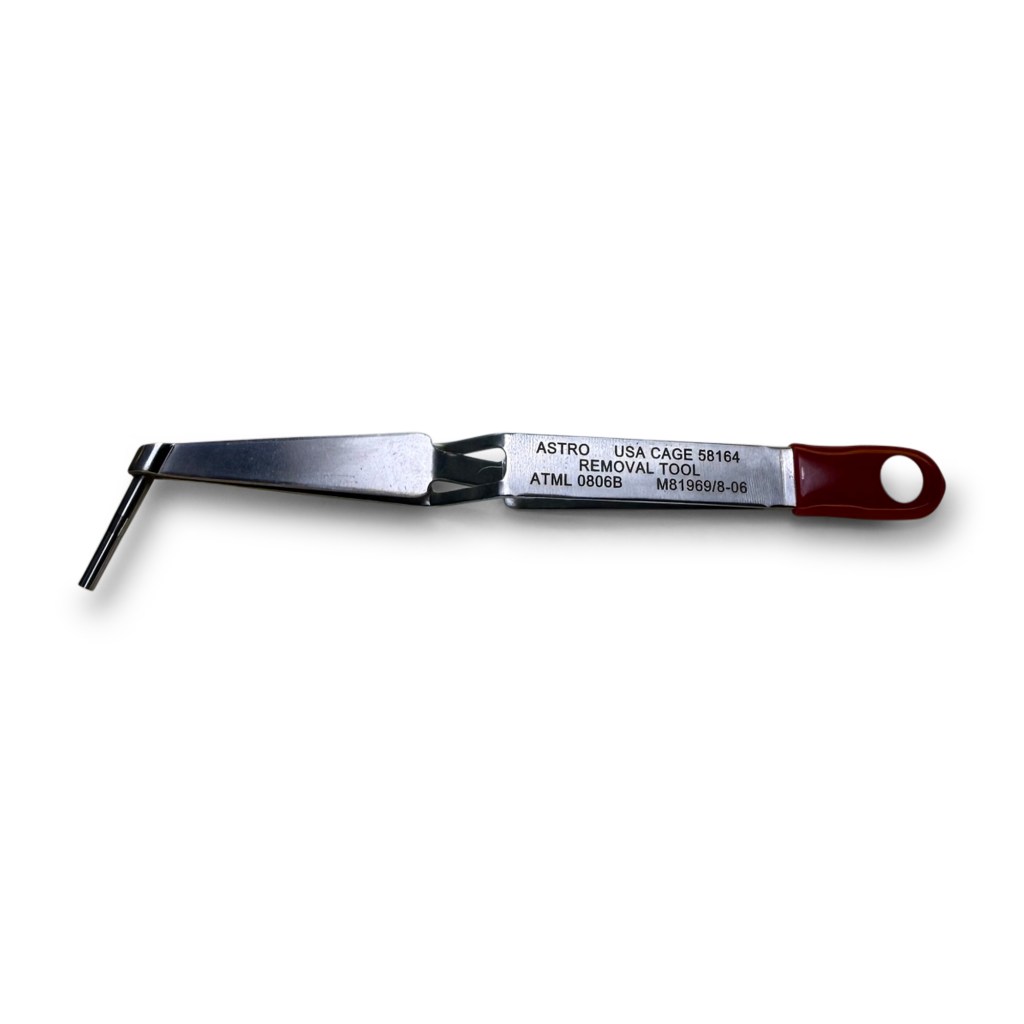

  • Astro Tool ATML 0806B metal removal tweezer qualified to M81969/8-06, equivalent to DMC DRK95-20MB.
