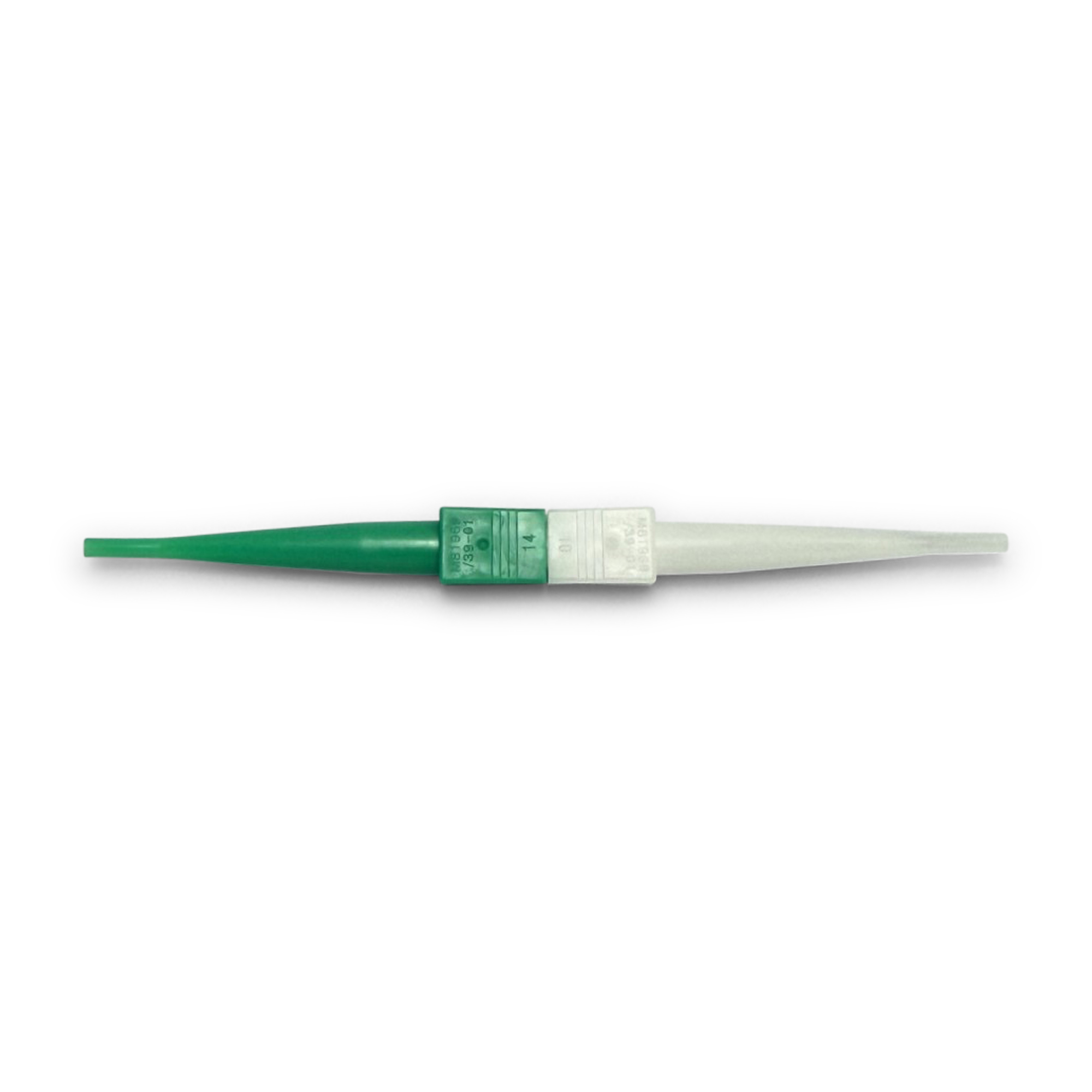

M81969/39-01 Plastic Insertion and Removal Tool, Stamped Part Number Side Main Image - Size 20 Green and White Combo Tool

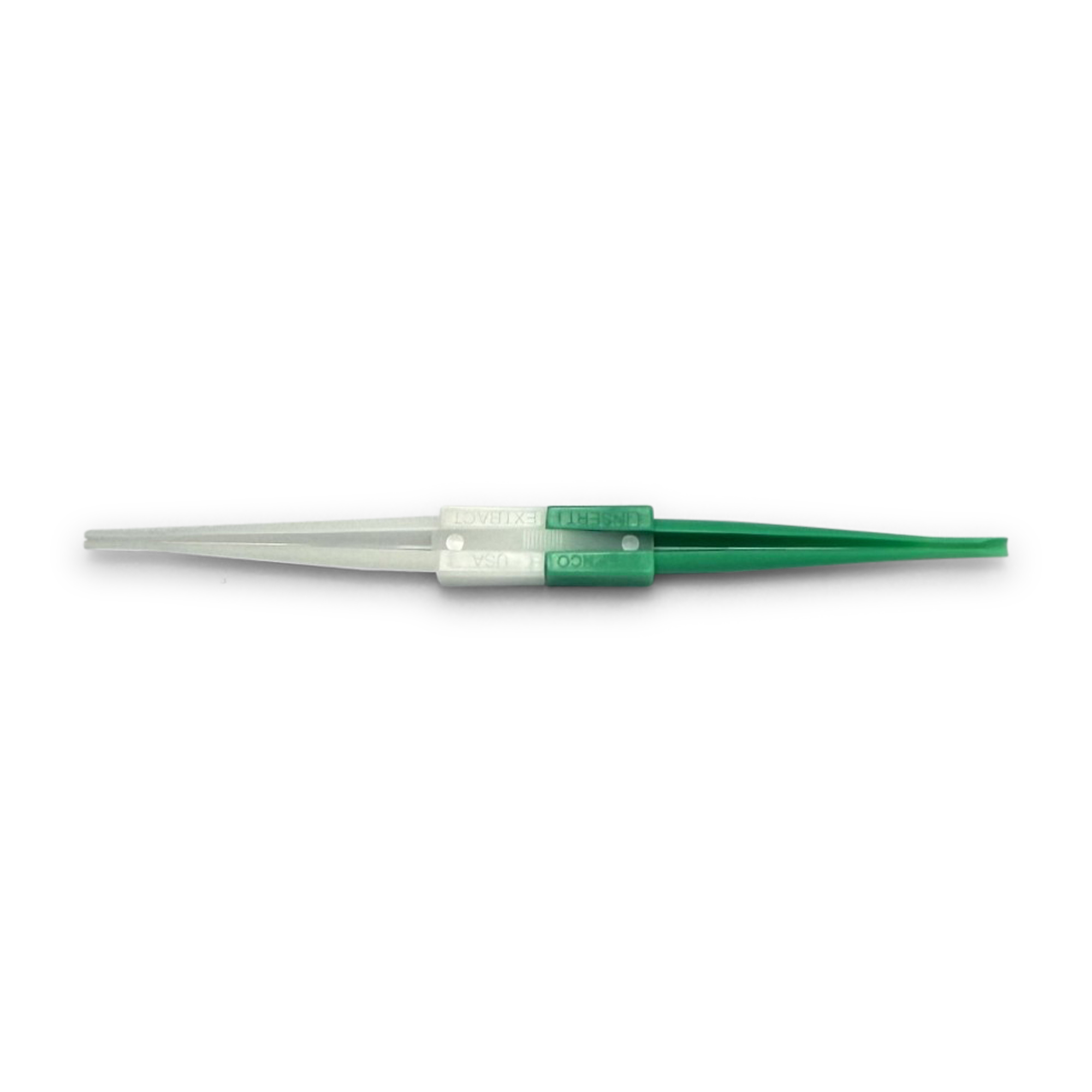

M81969/39-01 All-Plastic Hand Tool, Reverse Profile View Revealing Domestic USA Manufacturing and Step-N-Go Compliance

M81969/39-01 Ins & Rem Tool Size 20 | Step’n Components

$1.25
Government agencies and prime contractors: We are a SDVOSB‑certified supplier. Volume pricing available — call (817) 309‑6900 or email sales@connectortooling.com, or use the table below.

—IN STOCK. SHIPS WITHIN ONE BUSINESS DAY!!— The M81969/39-01 is a premium, MIL-spec plastic insertion and removal tool from Step’n Components. Featuring a color-coded Green and White design for Size 20 contacts, this double-ended, non-marring tool ensures safe contact installation and extraction within rear-release connectors. MADE IN THE USA!

Title Range Discount
List Price (1-9 units) 1 – 9 0%
5% Off (10-49 units) 10 – 49 5%
10% Off (50-99 units) 50 – 99 10%
15% Off (100-999 units) 100 – 999 15%
SKU: M819693901
Category:
Tags: , , , , , , , , , , , , ,

Description

Looking for larger quantities…Let us know we’d love to work with you sales@connectortooling.com

The Step’n Components M81969/39-01 is a premium, double-ended all-plastic insertion and removal tool engineered for servicing Size 20 and 20HD pin and socket contacts. Molded from durable, non-marring thermoplastic, it protects delicate internal locking clips and connector cavity walls across critical military and commercial aerospace installations.

Part Numbers M81969/39-01, AS81969/39-01, M819693901, MS182781, 81969-39-01
Active Aerospace Standard (Mil-Spec) SAE AS81969/39 (formerly MIL-I-81969/39)
NSN 5120-00-132-0396 (Primary Standard), 5120-01-335-8717, 5120-01-367-0282
Manufacturer Cross-References CMS IR-4M, IR-4, IR-4M, DMC CIET-20-HD, CIET-20HDB, MS18728-1, 0011-007-000, 371-8445-010, 980-2000-426, AUM39-01
Contact Sizing / Color Code Size 20 & 20HD Gauge AWG / Green (Insertion) & White (Removal)
Target Contacts Serviced ITT-Cannon Size 20 Pin (030-1952-000) and Socket (030-1953-000) configurations
Connector Platform Standard MIL-DTL-24308 Subminiature Rear-Release and Commercial D-Subminiature platforms (including RS-232, DD, DMA, D*U, and DBMAM Series rectangular layouts), AS81659 Series (ARINC 404)
What’s Included • Single (1) M81969/39-01 Plastic Insertion and Removal Tool (Green/White)
• Individual Factory Protective Packaging & Compliance Documentation

MADE IN THE USA!

Additional information

Weight .01 lbs
Dimensions 3 × .5 × .5 in
