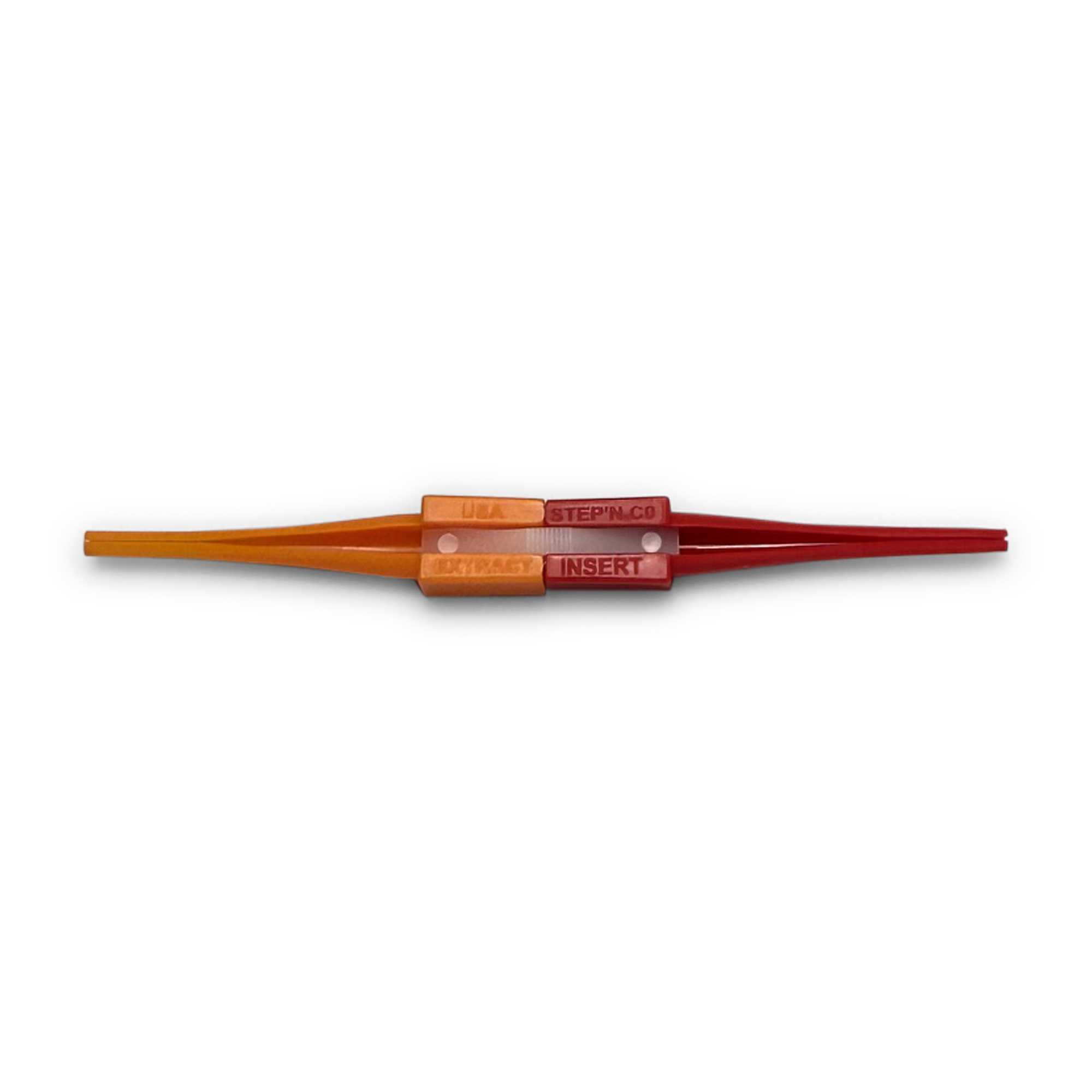

M81969/14-10 Plastic Insertion and Removal Tool, Stamped Part Number Side Main Image - Size 20 Red and White Combo Tool
M81969/14-10 All-Plastic Hand Tool, Reverse Profile View Revealing Domestic USA Manufacturing and Step-N-Go Compliance Mar

M81969/14-10 Ins & Rem Tool Size 20 | Step’n Components

$0.45
Government agencies and prime contractors: We are a SDVOSB‑certified supplier. Volume pricing available — call (817) 309‑6900 or email sales@connectortooling.com, or use the table below.

—IN STOCK. SHIPS WITHIN ONE BUSINESS DAY!!— The M81969/14-10 is a premium, MIL-spec plastic insertion and removal tool from Step’n Components. Featuring a color-coded Red and Orange design for Size 20 contacts, this double-ended, non-marring tool ensures safe contact installation and extraction within rear-release connectors. Glenair 809-207. MADE IN THE USA!

Title Range Discount
List Price (1-9 units) 1 – 9 0%
5% Off (10-49 units) 10 – 49 5%
10% Off (50-99 units) 50 – 99 10%
15% Off (100-999 units) 100 – 999 15%
SKU: M819691410
Category:
Tags: , , , , , , , , , , , , , , , ,

Description

Looking for larger quantities…Let us know we’d love to work with you sales@connectortooling.com

The Step’n Components M81969/14-10 is a specialized, all-plastic double-ended hand tool engineered for rear-release connector cavities. Molded from non-marring thermoplastic, it features a red installation tip and a white removal sleeve, allowing flight line mechanics and depot technicians to safely seat and extract size 20 contacts without cavity wear.

Replaces MS27534-20, M83723/31-20, NAS1664-20, MS3447-20

Part Numbers M81969/14-10, AS81969/14-10, M81961410, MS27534-20, M83723/31-20, NAS1664-20, MS3447-20,81969-14-10
Active Aerospace Standard (Mil-Spec) SAE AS81969/14 (formerly MIL-I-81969/14)
NSN 5120-01-330-3822 (Primary Standard), 5120-01-305-0029, 5120-01-357-0274, 5120-01-367-0274, 5120-01-428-4583, 5120-01-517-0841
Manufacturer Cross-References CMS IR-55M, IR-55M, 10-589507-20, M27509R20, M81969/14-02, Glenair 809-207
Application / Color Code Size 20 Gauge AWG / Red (Insertion) & White (Removal)
Connector Platform Standard MIL-DTL-38999 Series I, II, III & IV, MIL-DTL-55302/68, MIL-DTL-55302/69, and standard rear-release electrical connector blocks
What’s Included • Single (1) Step’n Components M81969/14-10 Plastic Insertion and Removal Tool (Size 20)
• Individual Factory Protective Packaging & Compliance Documentation

MADE IN THE USA!

Additional information

Weight .01 lbs
Dimensions 2 × .5 × .5 in

Reviews

There are no reviews yet.

Be the first to review “M81969/14-10 Ins & Rem Tool Size 20 | Step’n Components”

Your email address will not be published. Required fields are marked *

Related products

  • Glenair 809-088 plastic insertion and removal tool with metal tips for size 23 contacts.

    809-088 Glenair Size 23 Mighty Mouse Tool (Metal Tips)

    $25.00
    Add to cart

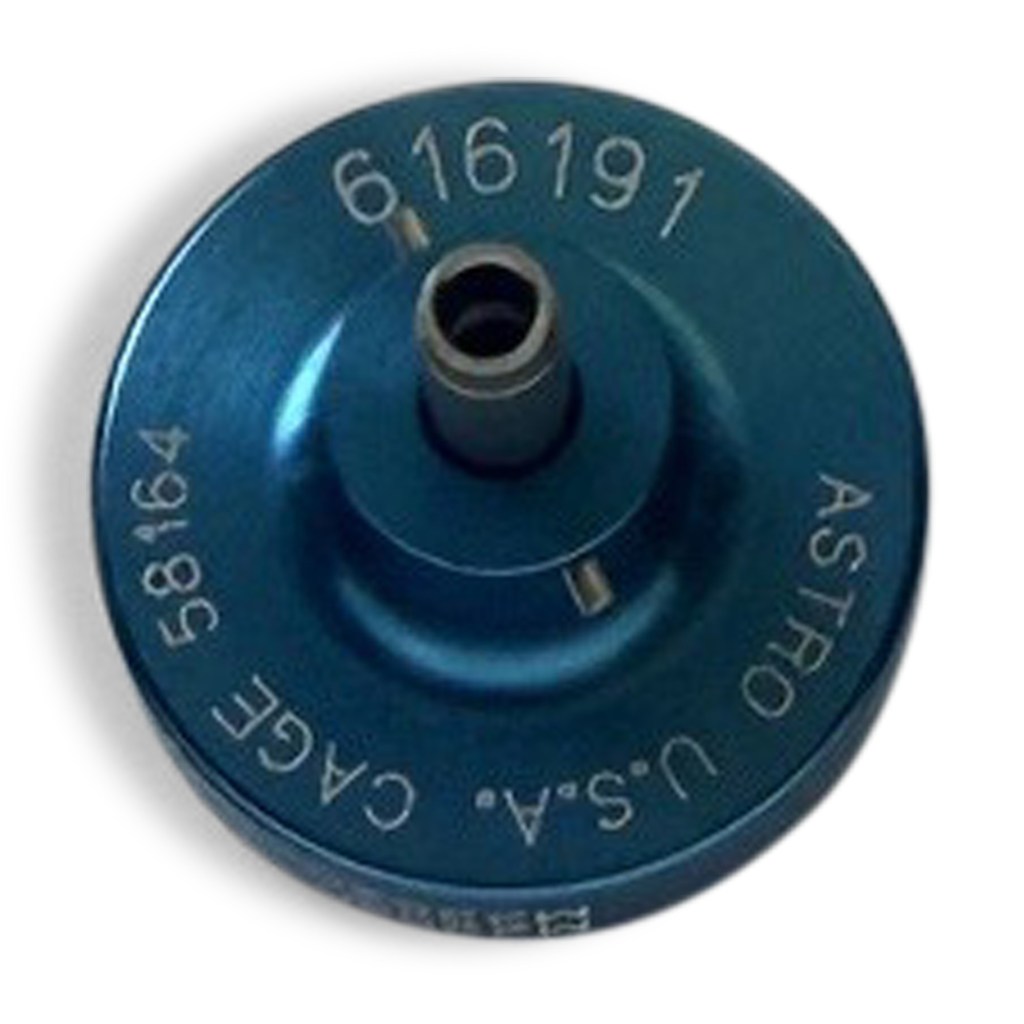

  • Astro Tool 616191 bayonet positioner qualified to M22520/2-23, equivalent to DMC K267-1.

    M22520/2-23 Crimp Positioner | Astro 616191 (DMC K267-1)

    $71.60
    Add to cart
  • M81969/1-04 Plastic Insertion and Removal Tool with Metal Tips, Stamped Part Number Side Main Image - Size 22D Green and White

    M81969/1-04 Metal Tip Size 22D | Step’n Components

    $3.85
    Add to cart

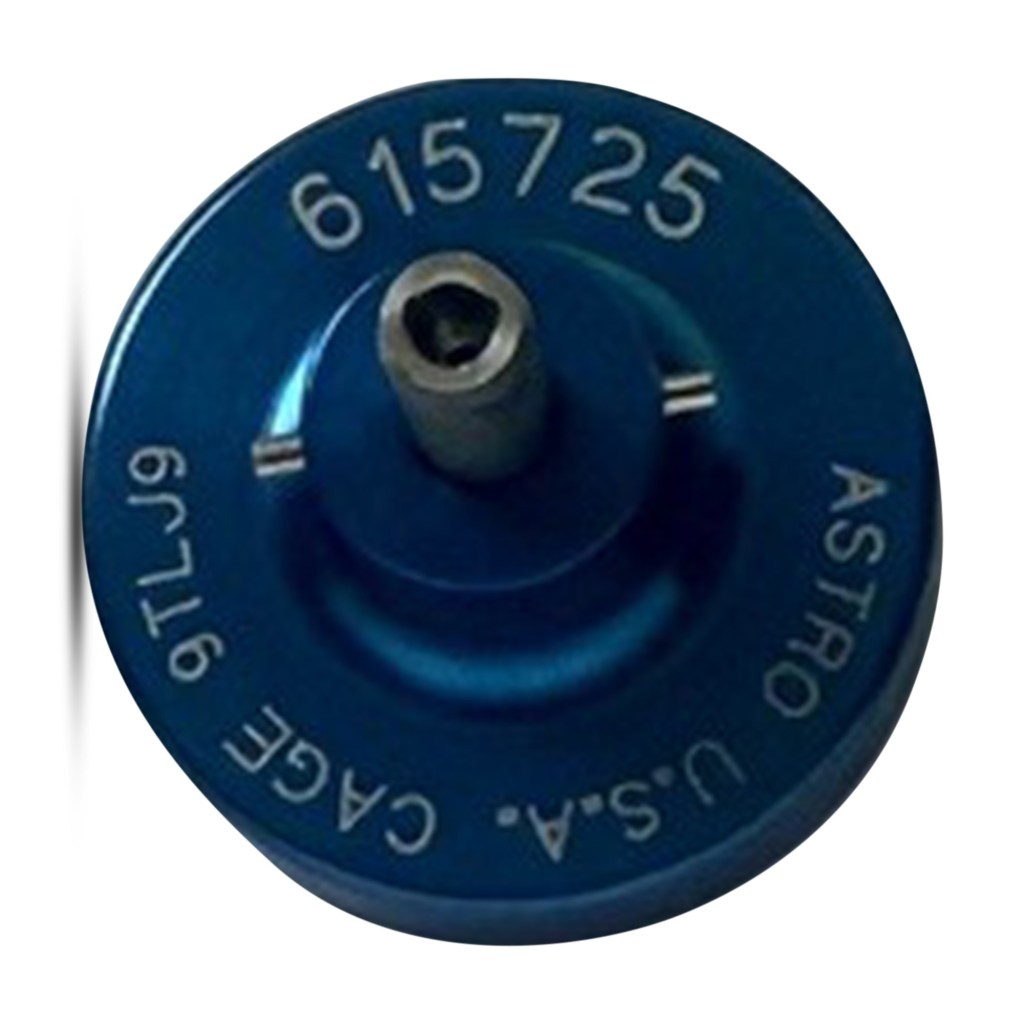

  • Astro Tool 615725 bayonet positioner qualified to M22520/2-09, equivalent to DMC K42.
