Description

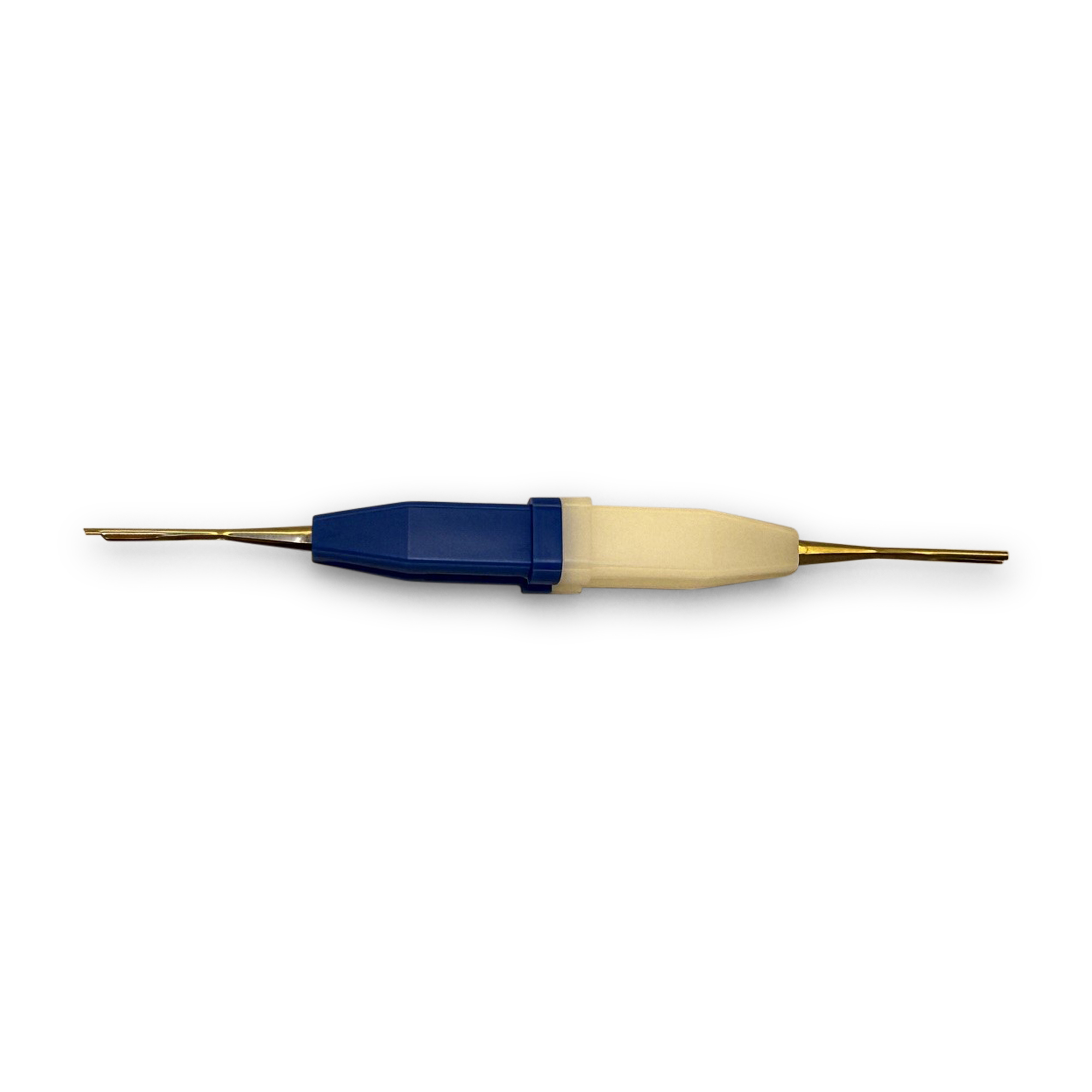

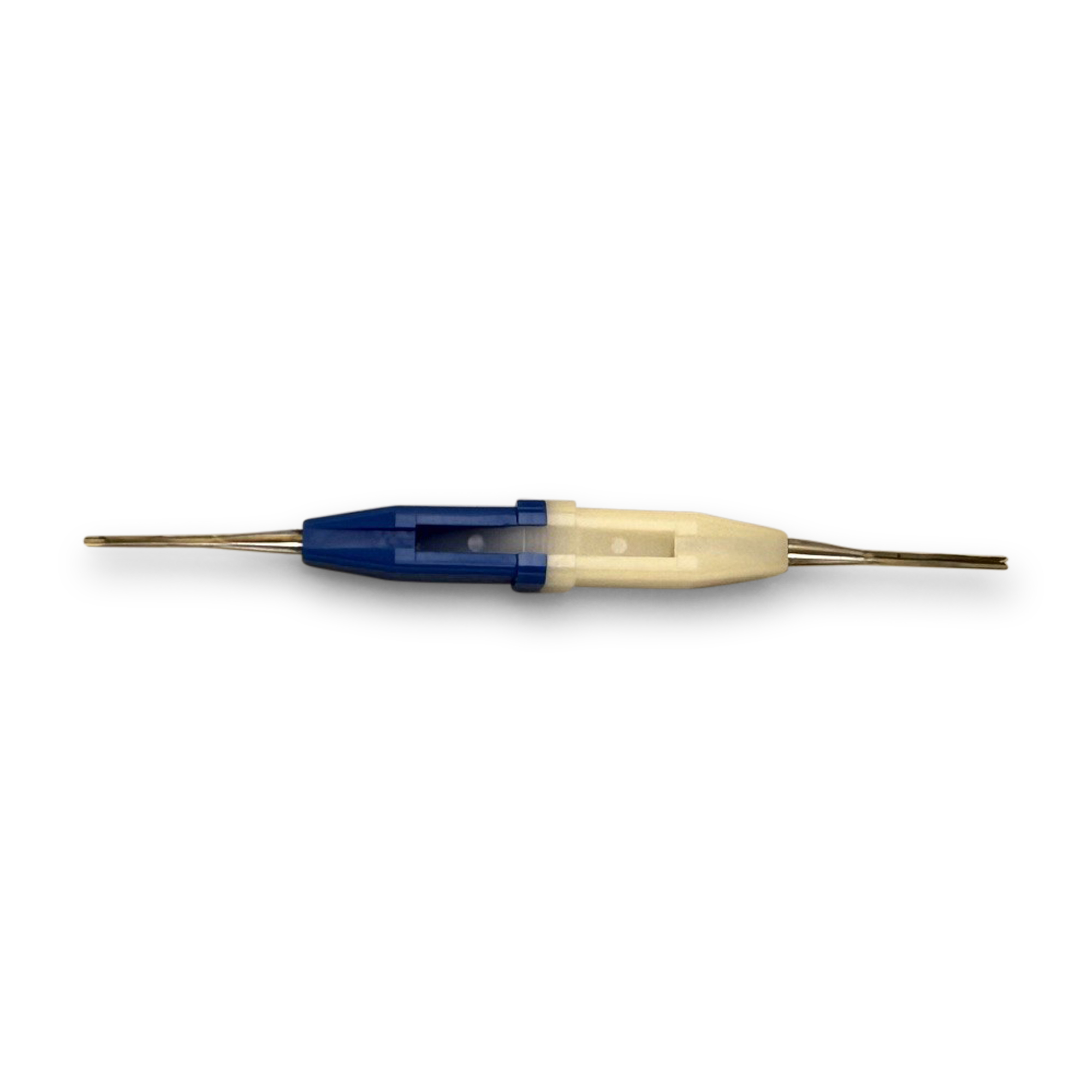

The Glenair 809-088 is a professional-grade, dual-ended contact installation and extraction tool featuring durable metal working tips and a comfortable, size-matched plastic handle. Engineered specifically for subminiature high-density connector architectures, it ensures safe, damage-free seating and removal of size 23 contacts in aerospace, defense, and maritime electronics harness production.
| Manufacturer / Standard | Cross-Reference Part Number |
|---|---|
| Primary Brand OEM Part Number | 809-088, 809088 |
| Active Governing Specification (Mil-Spec) | AS81969 / M81969 Style (Proprietary Glenair micro-miniature form factor for Series 80 Mighty Mouse) |
| National Stock Number (NSN) | 5120-01-616-7633 |
| Connector Platform Standard | Glenair Series 80 Mighty Mouse, Series 81 Micro-Crimp, high-density subminiature aerospace circular formats |
| Inserts/Removes | Glenair contacts 809-001, 809-002, 809-042, 809-043 |
| Accommodated Contact Sizing | Size 23 AWG Range (Fits standard .030″ / 0.76mm diameter machined pin and socket contact profiles) |
| Tool Tip Material & Coding | Hardened, precision-ground tool steel tips | White Tip: Insertion probe | Blue Tip: Extraction/Removal probe |
| What’s Included | • Glenair 809-088 Dual-Ended Plastic-Handle Tool with Metal Tips • Factory Protective Tip Cover Caps & Compliance Data Sheet |
MADE IN THE USA!
