Description

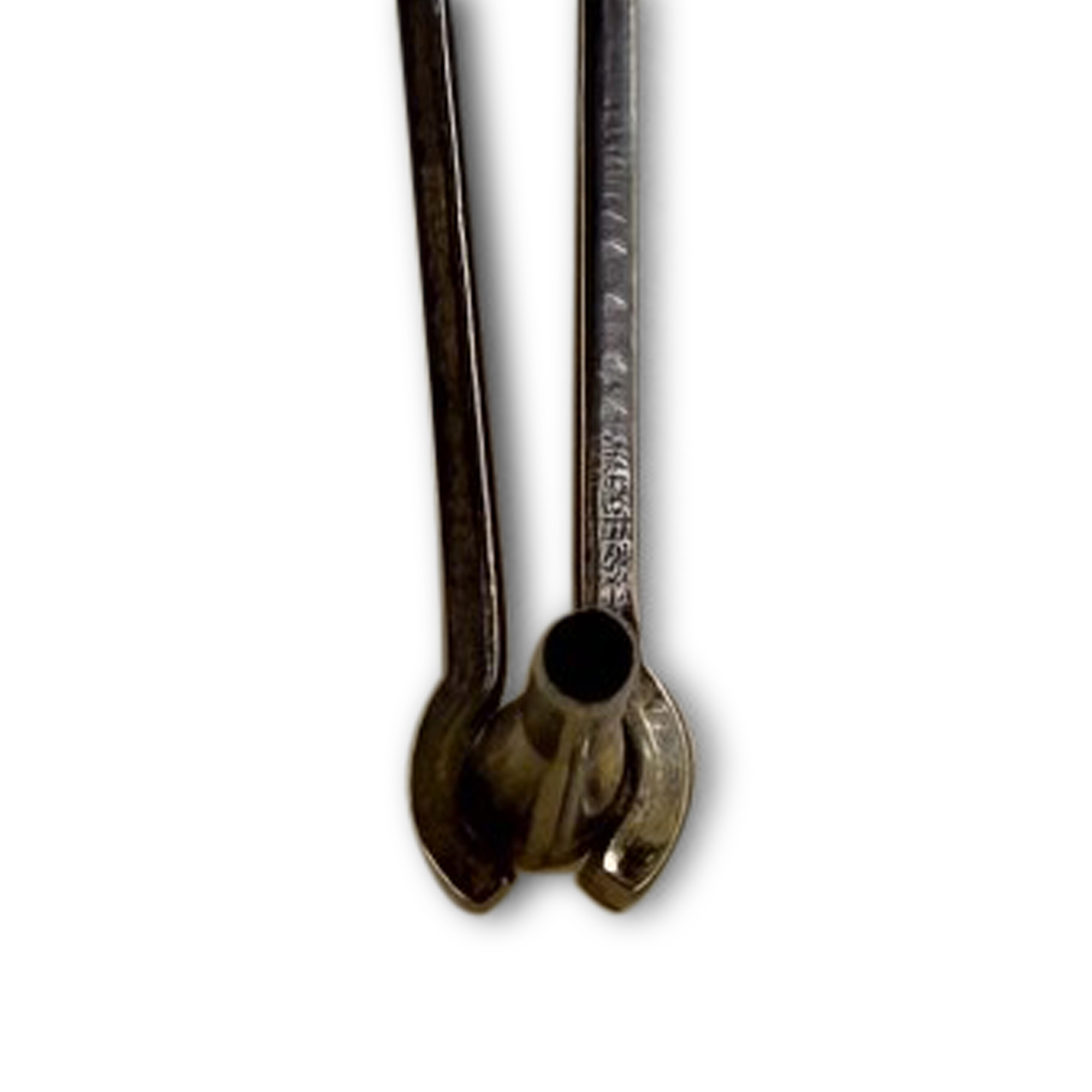

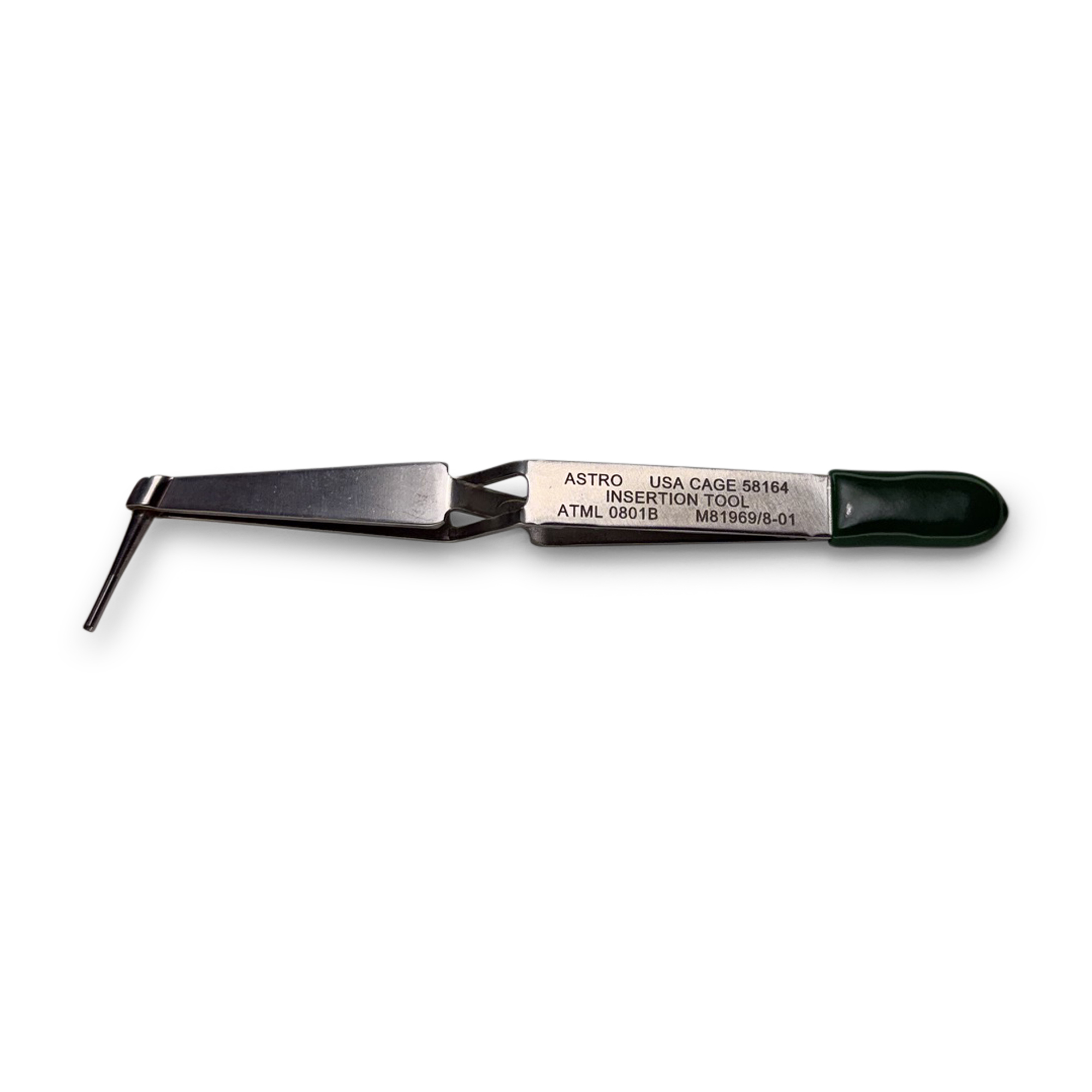

The ATML 0801B (M81969/8-01) is a military-grade, metal contact insertion tweezer fully qualified to the active SAE AS81969/8-01 specification. Precision-engineered for rear-release circular connector systems, its narrow, precision-ground tips ensure controlled, damage-free seating of size 22M machined pin and socket contacts without stressing retention clips, wire plating, or conductor insulation.
Replaces MS27945A22M
| Primary Brand OEM Part Numbers | ATML 0801B, Astro Tool ATML0801B, ATBX 1048 |
| Active Aerospace Standard (Mil-Spec) | SAE AS81969/8-01 (formerly M81969/8-01, M81969/8B-01, Replaces MS27945A22M) |
| National Stock Number (NSN) | 5120-00-251-9503 |
| Industry & Manufacturer Cross-References | Daniels Manufacturing Corp (DMC) DAK95-22MB, DAK95-22M, IT-40, IT-40M, Bendix 11-8674-24, 05-2232-22M, 809815, 809-815, 809823, 8599-M22C, A-9503, CIT-22M-KJ, TP201421-22A |
| Connector Platform Compatibility | MIL-DTL-38999 Series I, MIL-DTL-38999 Series II, MIL-DTL-38999 Series III, and standard circular electrical connector matrices using Size 22M rear-release contacts |
| Accommodated Wire Gauge Ranges | Size 22M Gauge AWG Machined Pin & Socket Contacts (Insertion Mode Only) |
| What’s Included | • Single (1) Astro Tool ATML 0801B Metal Contact Insertion Tweezer (M81969/8-01) • Individual Factory Protective Packaging & Manufacturer Technical Notes |
MADE IN THE USA!
