Description

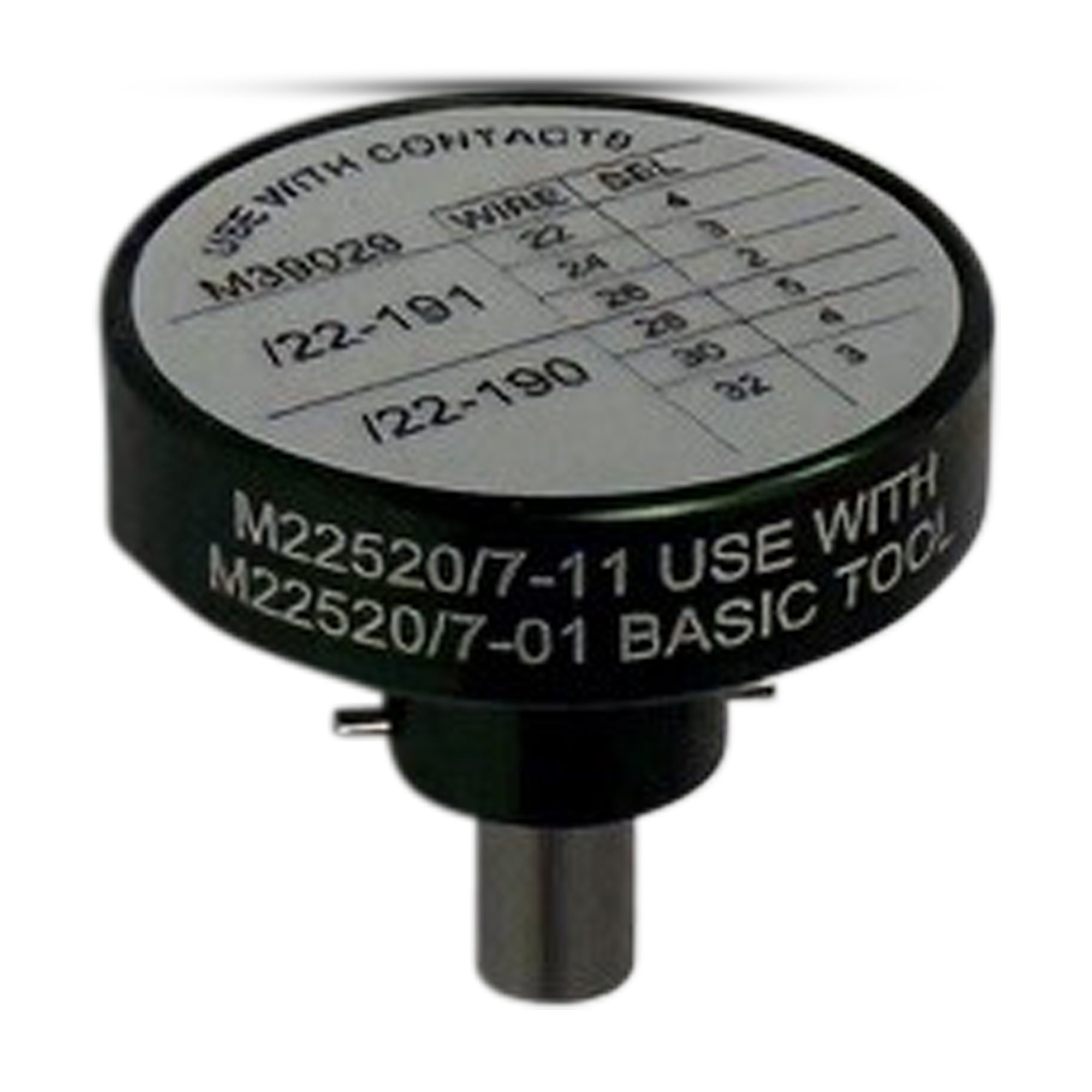

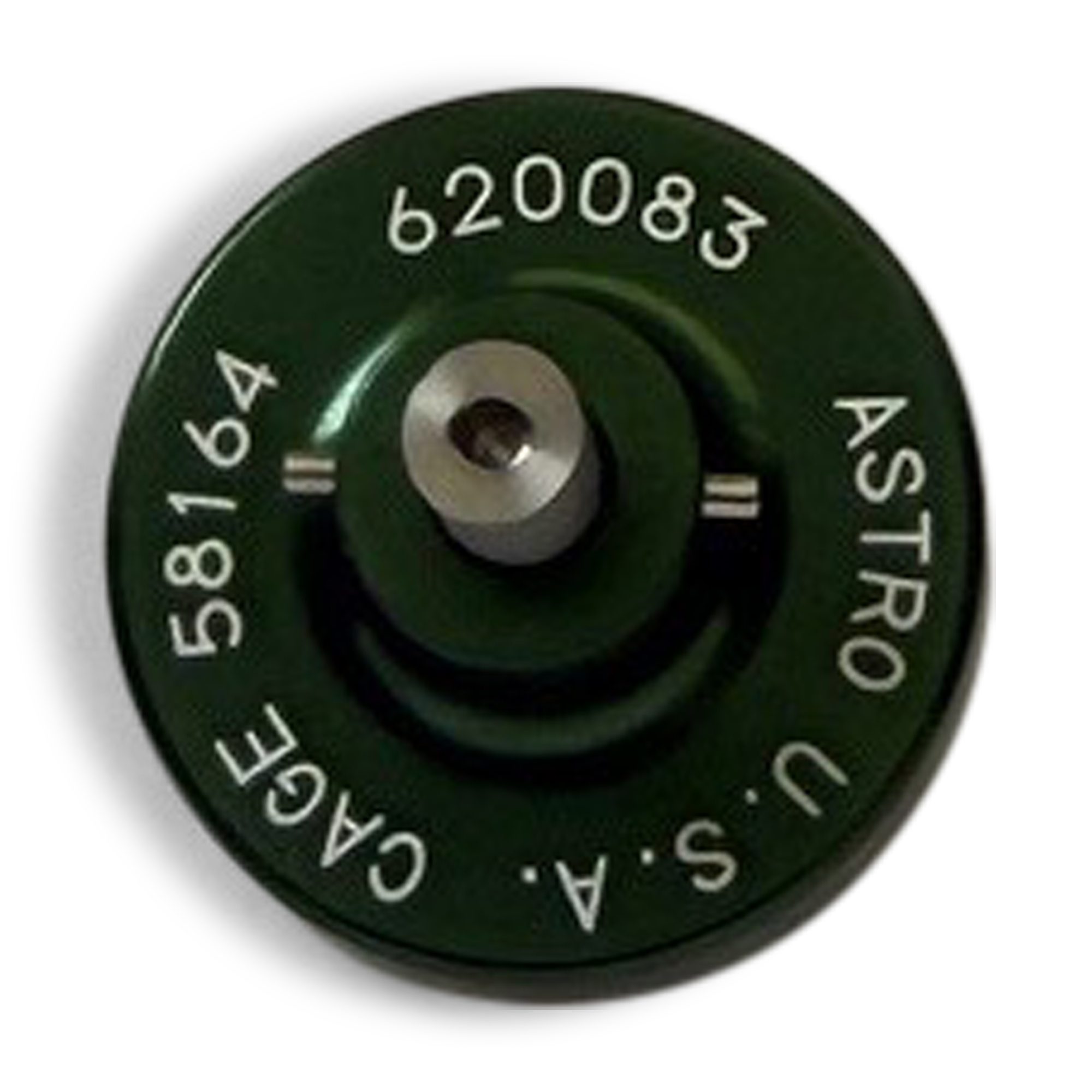

The 620083 (M22520/7‑11, DMC 86‑19) is a precision positioner designed for locating crimps on size 22 pin and socket contacts M39029/22-190, M39029/22-191, M39029/101-551, M39029/101-552. It mounts directly onto the M22520/7‑01 (616336) miniature indent crimp tool, ensuring accurate alignment of the contact barrel for consistent, specification‑compliant crimps.

This positioner supports a range of M39029 and other size‑22 contacts commonly used in aerospace, defense, and high‑reliability harness assemblies.

Features: • Locates crimps on size 22 pin and socket contacts • For use with M22520/7‑01 (MH860) crimp tool • Supports qualified size‑22 rear‑release contacts • Ensures precise crimp alignment for consistent, spec‑compliant results • Machined for durability in production and depot environments • Made in the USA

Compatible Connector Families: • MIL‑C‑81511 Series 3 & 4 • MIL‑STD -M1549

Compatible Crimp Tools: • M22520/7‑01 (616336 / MH860) • Other M22520/7‑01‑style miniature indent crimp tools

Cross‑Reference Part Numbers: 620083, M22520/7‑11, 86‑19, 06519‑432‑025, 23‑111, 5120‑01‑122‑1201, CP‑89.

What’s Included: • 620083 (M22520/7‑11,) Positioner

Locates crimps on size 22 socket (M39029/22-190, M39029/22-191, M39029/101-551, M39029/101-552) contacts installed in MIL-C-81511 Series 3 & 4 rear release circular connectors and MIL-STD-1549 terminal junction modules.

Other manufacturers part number 06519-432-025, 23-111, 5120-01-122-1201, CP-89
