Description

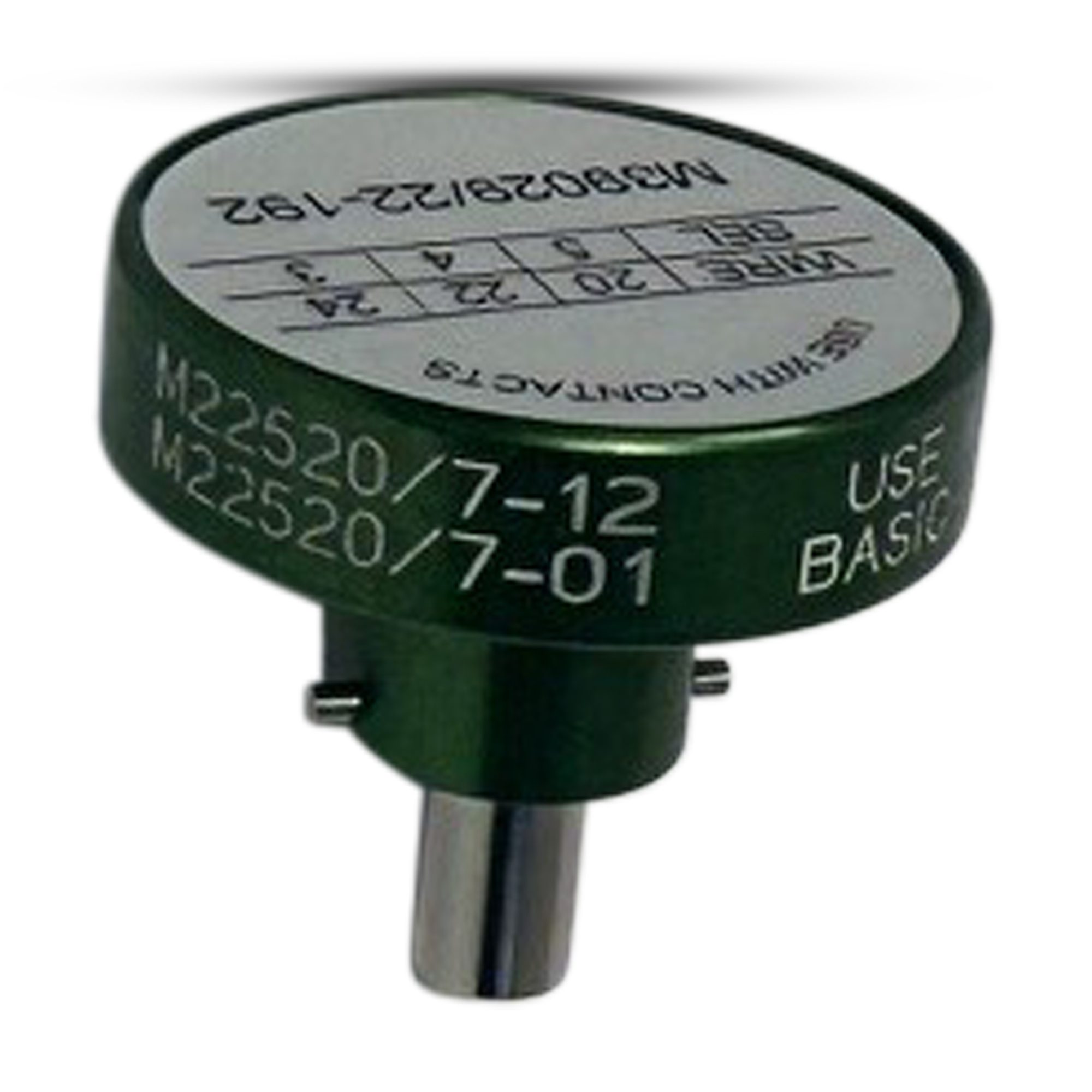

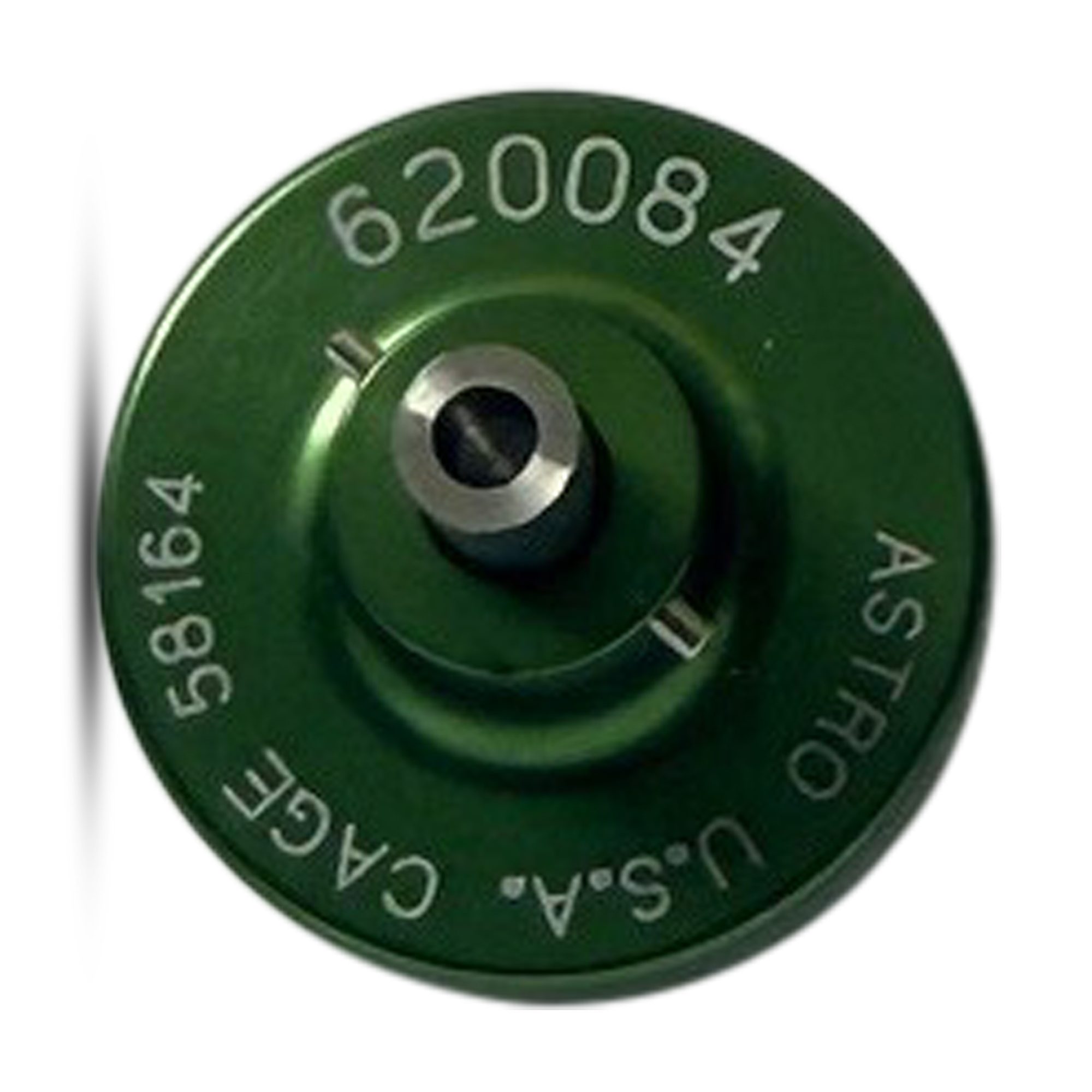

The 620084 (AS22520/7-12, DMC 86-20) is a precision military-grade bayonet-style tool positioner designed to mount onto miniature four-indent crimp tool frames (such as the active SAE AS22520/7-01 / Astro 616336 / MH860) for consistent, high-precision crimp localization on size 22 socket contacts. It supports qualified rear-release circular connector systems used in high-reliability aerospace and defense wire harness applications.
| Manufacturer / Standard | Cross-Reference Part Number |
|---|---|
| Primary Brand OEM Part Number | 620084, 86-20 |
| Active Governing Specification (Mil-Spec) | SAE AS22520/7-12 (formerly M22520/7-12 / MIL-DTL-22520/7) |
| National Stock Number (NSN) | 5120-01-112-2925, 5120-01-335-8607, 5120-01-416-8425 |
| Connector Platform Standard | MIL-DTL-81511 Series 3 & 4, MIL-DTL-M1549 |
| Manufacturer Cross-References | DMC 86-20, 06519-432-026, CMS CP-90, CP-90 |

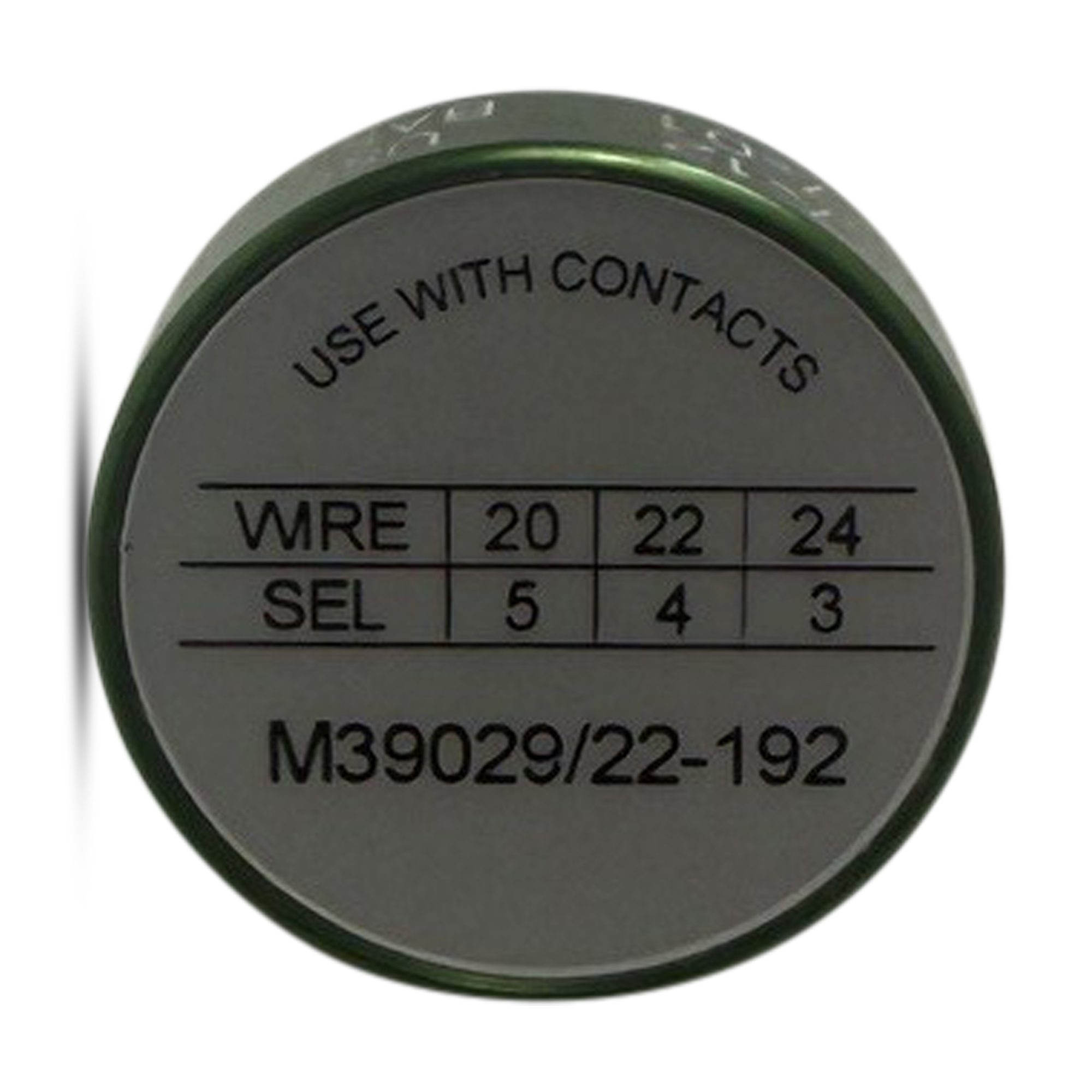

| Accommodated AS39029 Contact Numbers | M39029/22-192, M39029/101-553 |
| Accommodated MS / Other Contact Standards | Size 22 Socket Machined Contacts (Qualified Size-22 Rear-Release Configurations) |
| What’s Included | • 620084 Positioner Assembly (M22520/7-12) • Crimp tool frame sold separately (Compatible with M22520/7-01 / MH860 / 616336) |
MADE IN THE USA!
