Description
Presently out of stock and on backorder. Contact customer service for updated shipping information.

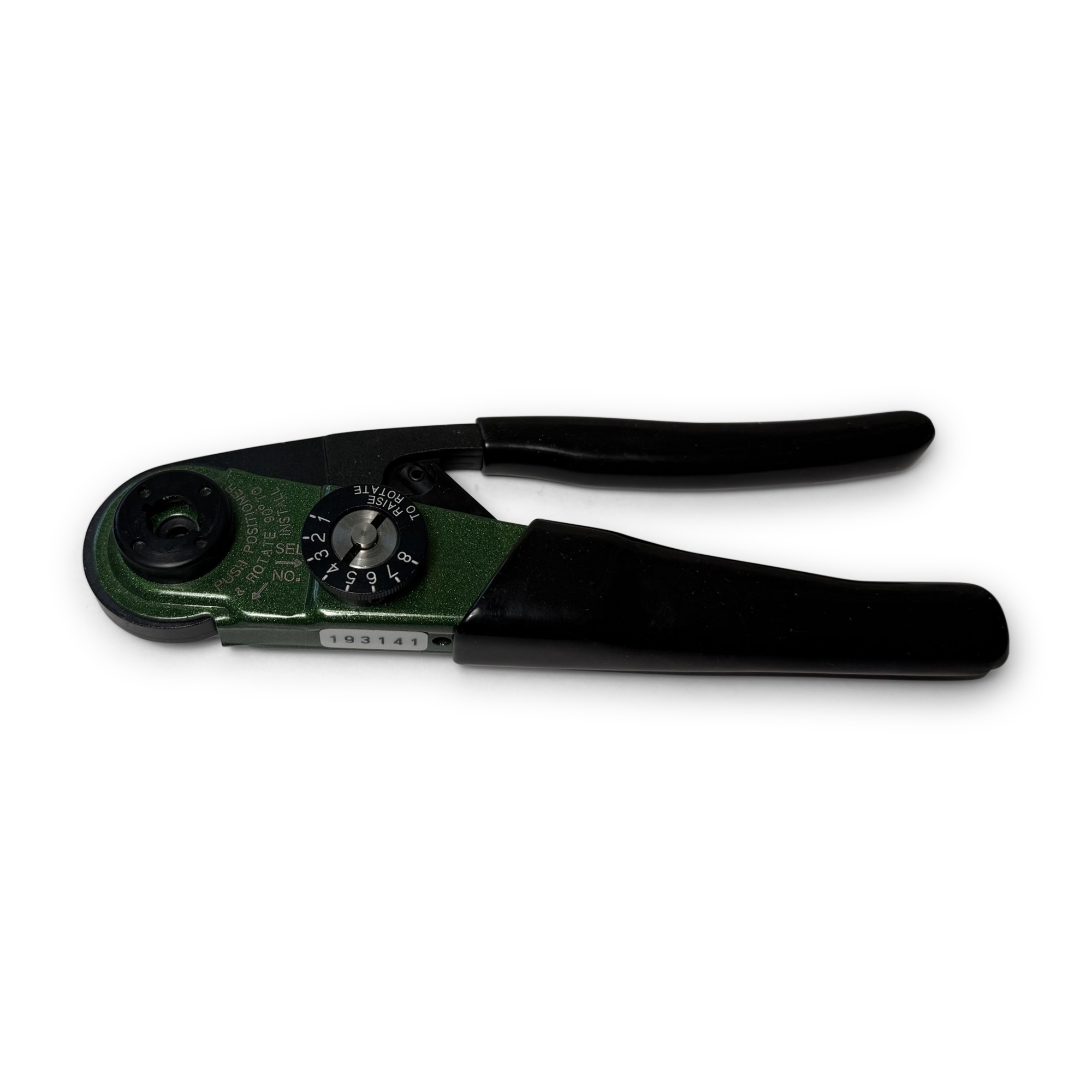

The Astro Tool 616336 (M22520/7-01) is a premium military-grade hand crimping tool fully qualified to the active SAE AS22520/7-01 specification. Designed for ultra-high-reliability wire harness fabrication across aerospace, tactical defense, and critical commercial electronics networks, this frame deploys a precision 8-indent configuration to securely lock machined pin and socket contacts. Featuring an internal cycle-controlled ratchet mechanism that prevents tool release until full crimp indentation depth is met, it serves as a direct equivalent to the DMC MH860 to ensure absolute repeatability.

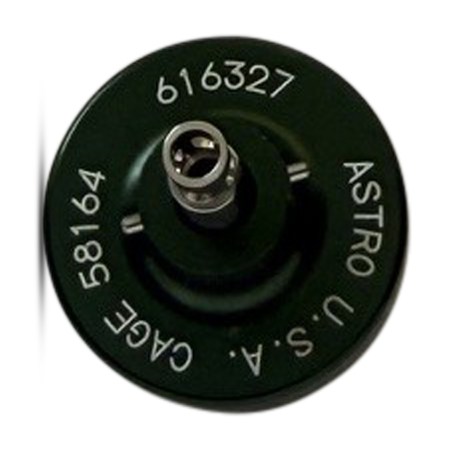

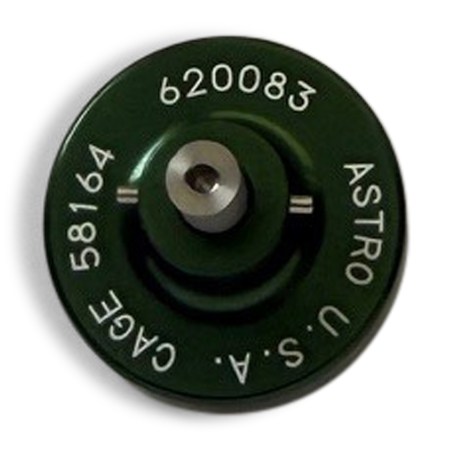

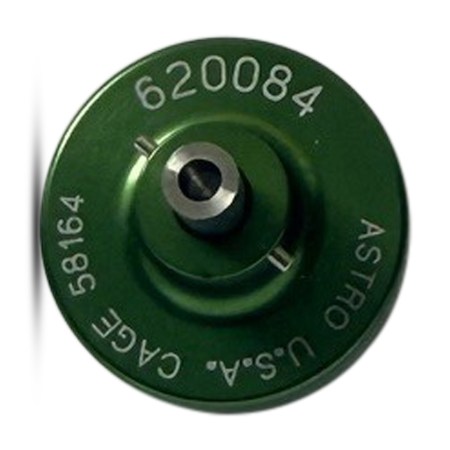

Please note: This product includes the hand tool frame only. To successfully lock and process terminal contacts, an appropriate bayonet positioner matching your specific connector configuration is required. Please contact our technical support team for precise positioner recommendations.
| Manufacturer / Standard Cross-Reference Part Number | 616336, MH860, DPC.91.701V, CT-72 |
| Active Governing Specification (Mil-Spec) | SAE AS22520/7-01 (formerly M22520/7-01 / MIL-DTL-22520/7) |
| National Stock Number (NSN) | 5120-01-275-2664, 5120-01-286-4418, 5120-01-335-8573, 5120-00-133-1747 |
| Crimp Style / Tool Function | 8-Indent Selector Dial, Cycle-Controlled Double-Rachet Action Mechanism |
| Primary Accessory Compatibility | Requires M22520/7-XX series bayonet locator positioners (M22520/7-02 through M22520/7-13) |
| Alternate Manufacturer Cross-References | DMC MH860, Daniels Manufacturing Corp MH860, LEMO DPC.91.701V, Radiall 0765-717450, Astro Tool 23-000, CT-72 |
| Accommodates Contact Barrel Ranges | 16 AWG through 22 AWG (Machined pin and socket circular terminal wire barrels) |
| What’s Included | • Astro Tool 616336 (M22520/7-01) Crimp Tool Frame Only • (Removable bayonet positioners and calibration inspection gages sold separately) |
| Origin Country | MADE IN THE USA! |
