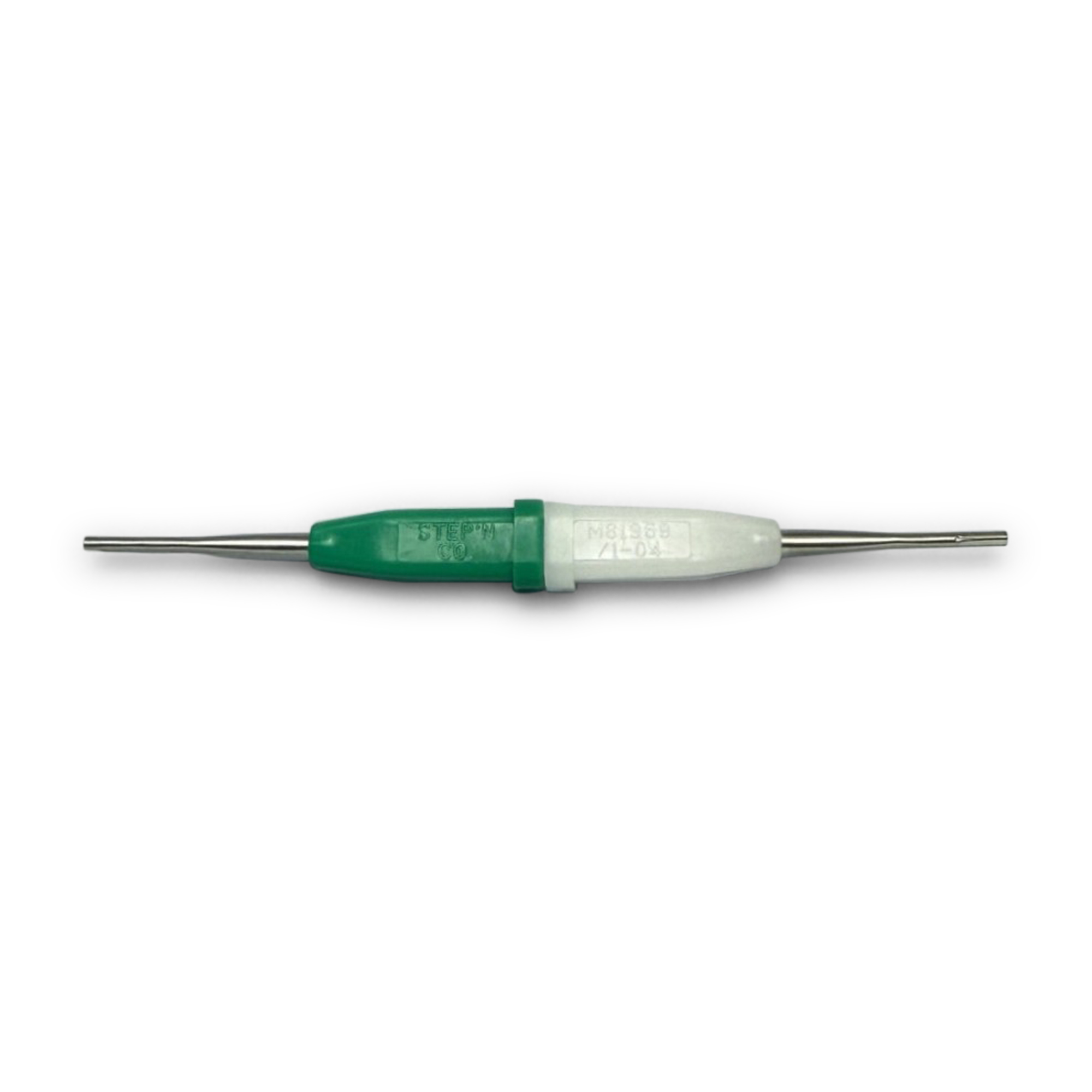

M81969/1-04 Plastic Insertion and Removal Tool with Metal Tips, Stamped Part Number Side Main Image - Size 22D Green and White
M81969/1-04 Composite Hand Tool, Reverse Profile Showing Wire Slot

M81969/1-04 Metal Tip Size 22D | Step’n Components

$3.85
Government agencies and prime contractors: We are a SDVOSB‑certified supplier. Volume pricing available — call (817) 309‑6900 or email sales@connectortooling.com, or use the table below.

—IN STOCK. SHIPS WITHIN ONE BUSINESS DAY!!— The M81969/1-04 is a double-ended composite contact installation and removal hand tool featuring precision-machined metal tips designed to service ultra-dense Size 22D connector contacts. Color-coded green and white, this robust military standard tool compresses inner retention springs cleanly to ensure smooth contact placement and damage-free removal. MADE IN…

Title Range Discount
List Price (1-9 units) 1 – 9 0%
5% Off (10-49 units) 10 – 49 5%
10% Off (50-99 units) 50 – 99 10%
15% Off (100-999 units) 100 – 999 15%
SKU: M81969104
Category:
Tags: , , , , , , , , ,

Description

Looking for larger quantities…Let us know we’d love to work with you sales@connectortooling.com

The Step’n Components M81969/1-04 is a premium, double-ended composite contact insertion and removal tool featuring a lightweight handle and precision-machined metal tips. Color-coded green and white for size 22D AWG machined contacts, it compresses internal retention clips cleanly across subminiature D-Sub and linear connectors without cavity damage.

Replaces M24308/18-1.

Part Numbers M81969/1-04, AS81969/1-04, Formerly M24308/18-1, 81969-1-04
Active Aerospace Standard (Mil-Spec) SAE AS81969/1 (formerly MIL-C-81969/1)
NSN 5120-01-036-6929 (Primary Standard), 5120-01-367-0266, 5120-01-392-6914
Manufacturer Cross-References CMS IR-27M, IR-27M, IR27M
Contact Sizing / Color Size 22D Gauge AWG / Dark Green (Insertion) & White (Removal)
Connector Platform MIL-DTL-24308 Series Subminiature D-Sub Connectors, MIL-DTL-81659 Series II Linear Rear-Release Connectors
What’s Included • Single (1) M81969/1-04 Dual-Ended Insertion and Removal Tool (Green/White)
• Individual Factory Protective Packaging & Compliance Documentation

MADE IN THE USA!

Additional information

Weight .01 lbs
Dimensions 3 × .5 × .5 in

Reviews

There are no reviews yet.
