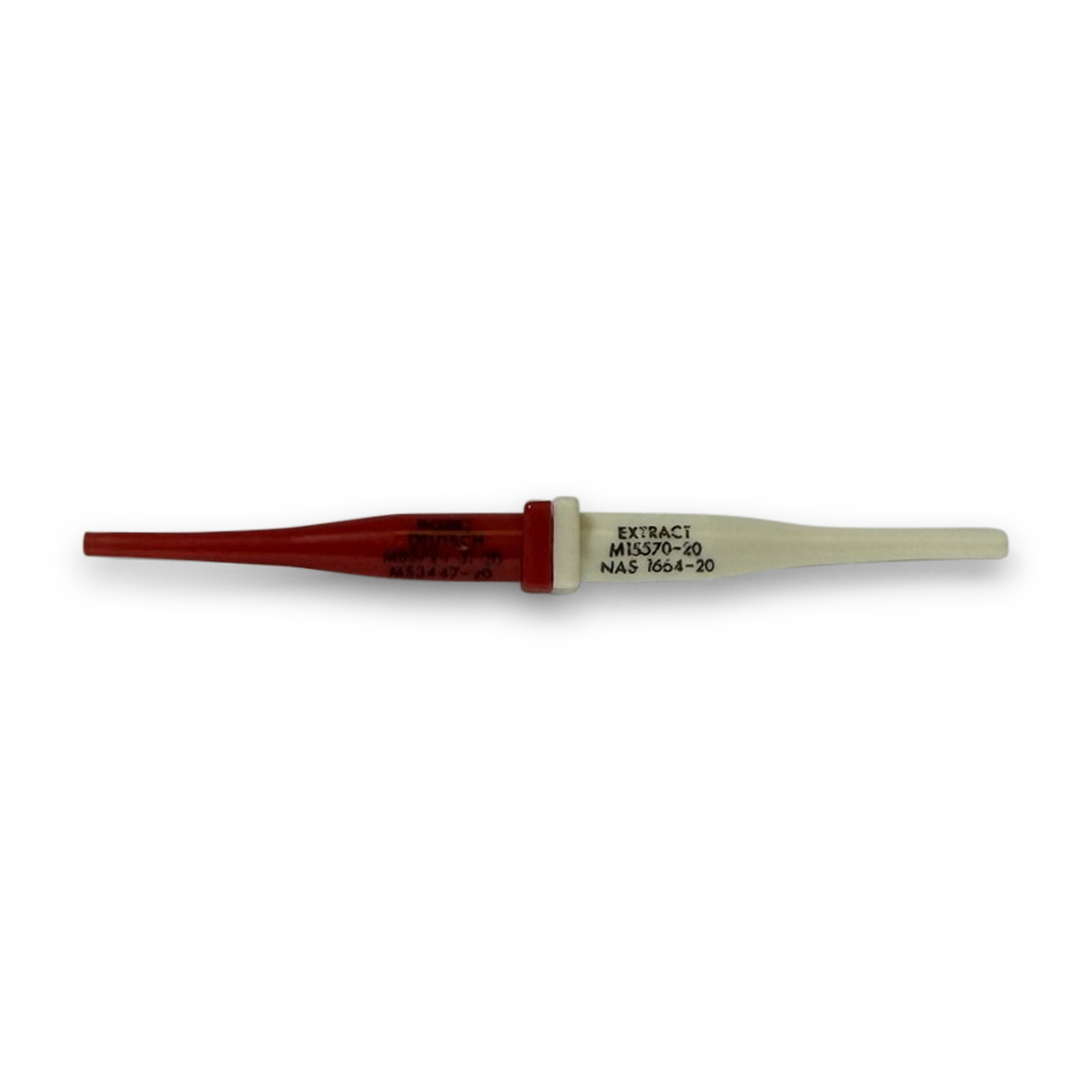

E Connectivity M15570-20 Insertion Extraction Tool, Main Color Coded Red and White Profile View - Size 20 Contact I/R Tool

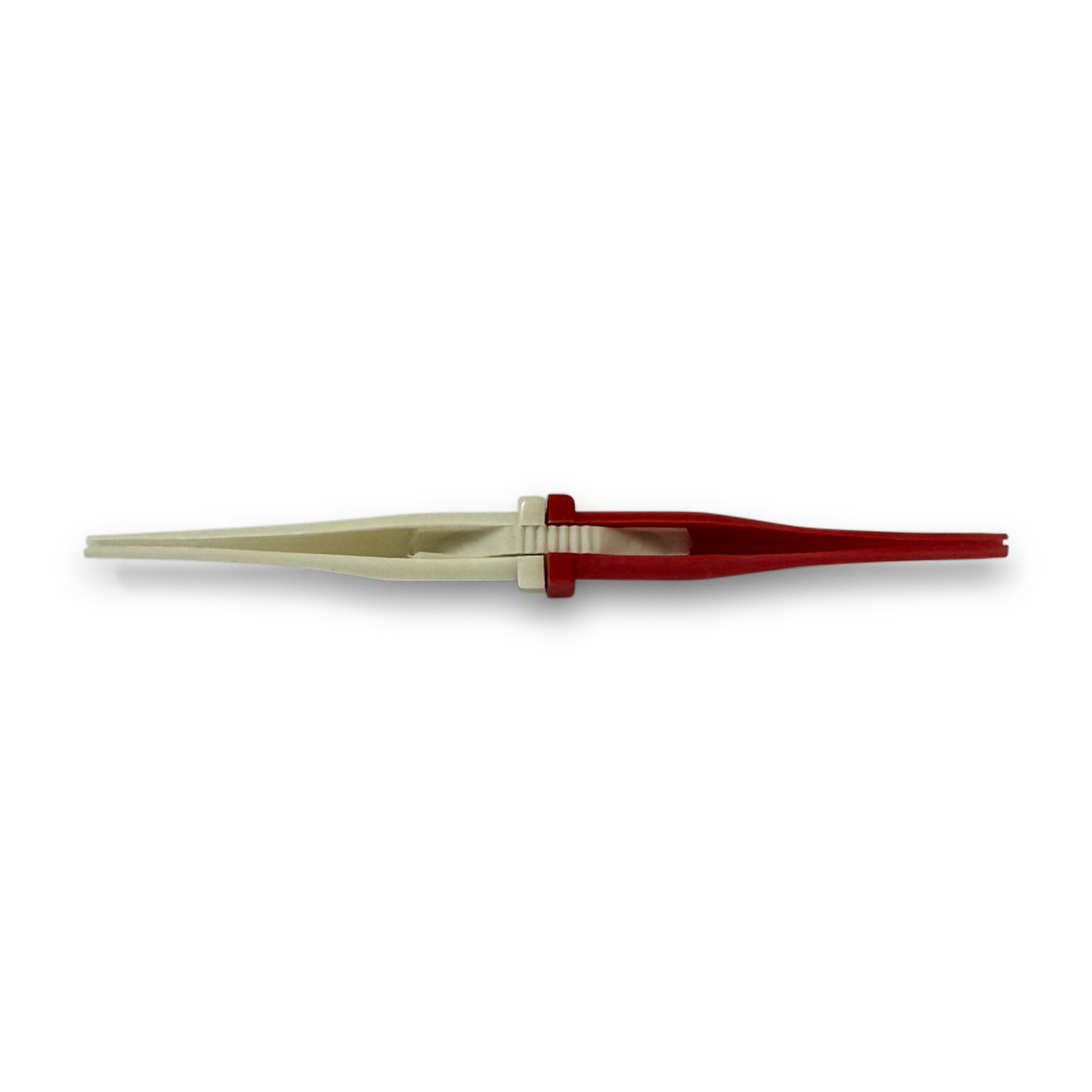

Deutsch M15570-20 Double Ended Plastic Hand Tool Back of Tool Showing Wire Slot

M15570-20 Ins & Rem Tool Size 20 | Deutsch

$0.20

—IN STOCK—SURPLUS—SHIPS WITHIN 1 BUSINESS DAY!!— The M15570-20 is a premium double-ended plastic insertion and removal tool engineered for servicing TE Connectivity / Deutsch size 20 contacts in rear-release connector systems. Designed to safeguard sensitive contact cavities, this non-marring hand tool ensures clean retention-clip release and precision termination seating. Direct operational cross-reference to military standard…

Title Range Discount
List Price (1-9 units) 1 – 9 0%
5% Off (10-49 units) 10 – 49 5%
10% Off (50-99 units) 50 – 99 10%
15% Off (100-999 units) 100 – 999 15%
SKU: M15570-20
Category:
Tags: , , ,

Description

—IN STOCK. SHIPS WITHIN ONE BUSINESS DAY!!—

The TE Connectivity / Deutsch M15570-20 is a premium, double-ended plastic insertion and extraction tool engineered for installing and removing size 20 AWG pin and socket contacts. Fully compliant with active aerospace standards, it ensures safe, non-marring seating across heavy-duty commercial and military rear-release connector systems.

Part Numbers M15570-20, M15570-20-1
Active Aerospace Standard (Mil-Spec) SAE AS81969/14A (TE/Deutsch commercial version)
NSN 5120-00-915-4587
Manufacturer Cross-References Amphenol M81969/14-11, Astro Tool M81969/14-11, NAS1664-20, IR-57DE
Connector Platform Deutsch HD30, HDP20, HD10, AEC, DRC, WT Series, MIL-DTL-26482 Series II, MIL-DTL-83723 Series II & III, AS81703 Series III, MIL-DTL-83733, AS50151(Formerly MIL-C-5015) , AS81714
What’s Included • Single (1) TE Connectivity / Deutsch M15570-20 Size 20 Plastic Tool
• Individual Protective Bench Packaging & Technical Compliance Documentation

MADE IN THE USA!

Additional information

Weight .01 lbs
Dimensions 3 × .25 × .25 in
