Description

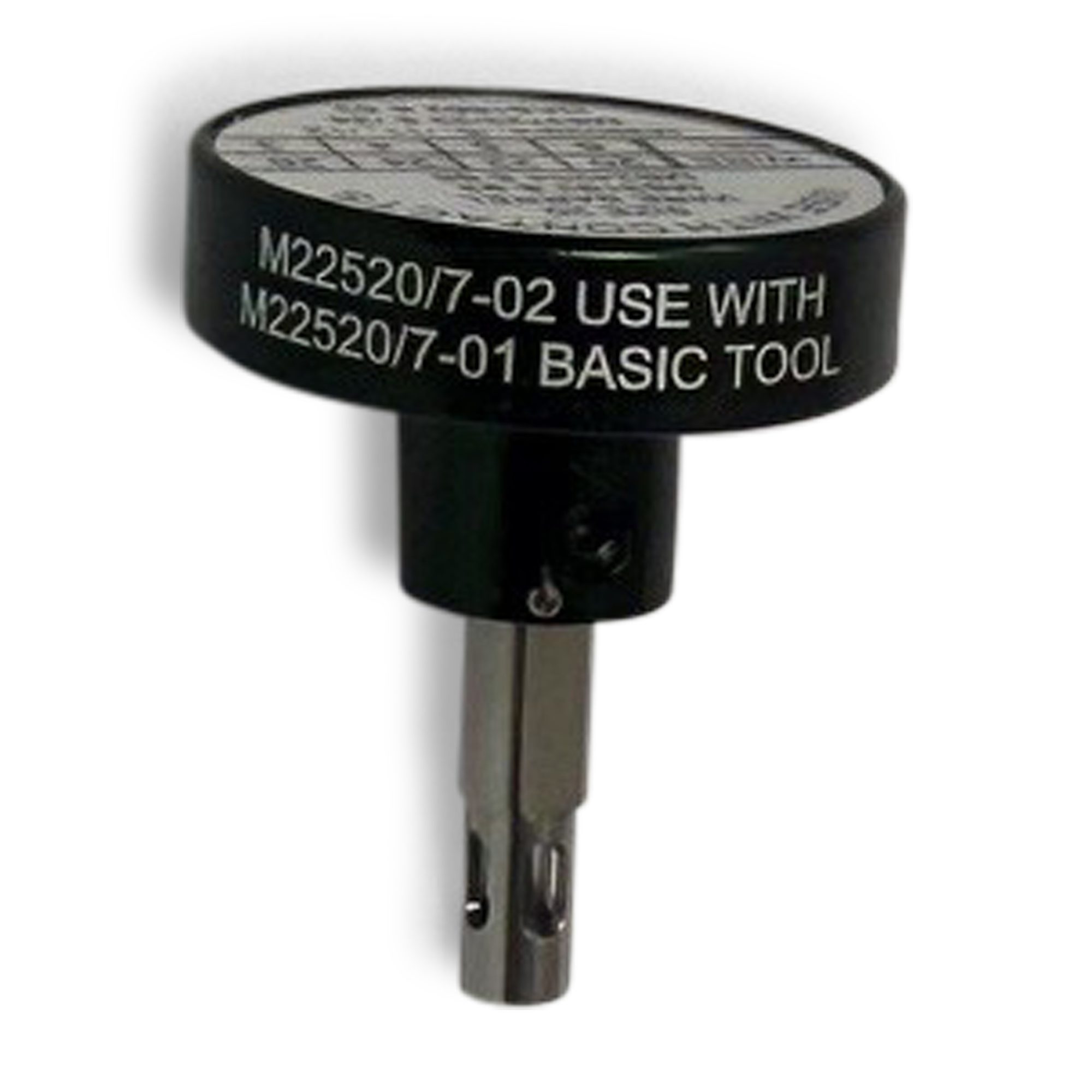

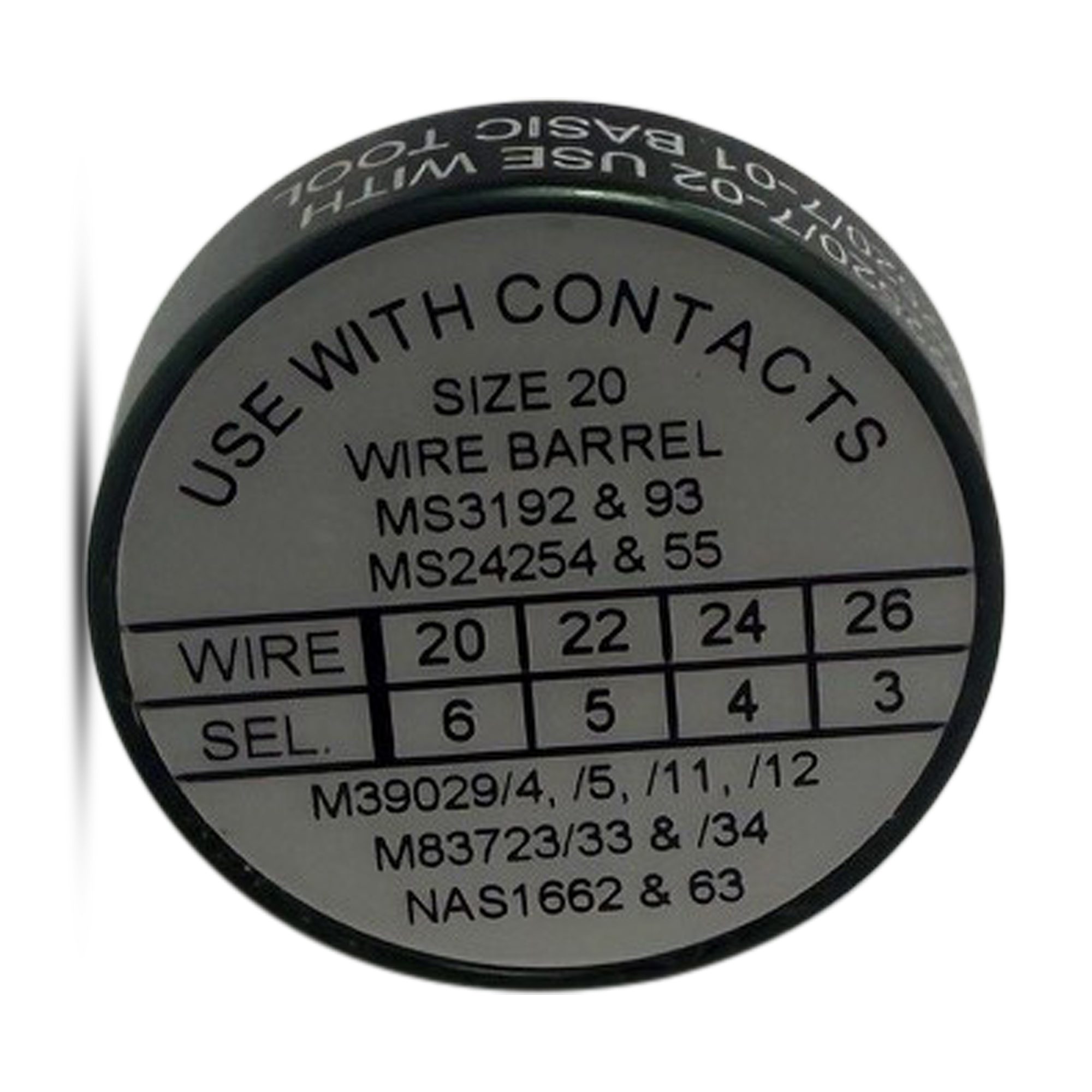

The 616327 (AS22520/7-02, DMC 86-1S) equivalent) is a precision military-grade bayonet-style tool positioner designed to mount onto miniature four-indent crimp tool frames (such as the active SAE AS22520/7-01 / Astro 616336 / DMC MH860) for consistent, high-precision crimp localization on size 20 pin and socket contacts. It supports a wide range of high-reliability circular connector systems complying with standards such as MIL-DTL-5015, MIL-DTL-26482, and MIL-DTL-83723.
| Manufacturer / Standard | Cross-Reference Part Number |
|---|---|
| Primary Brand OEM Part Number | 616327, 86-1S, CP-139 |
| Active Governing Specification (Mil-Spec) | SAE AS22520/7-02 (formerly M22520/7-02 / MIL-C-22520/7-02) |
| National Stock Number (NSN) | 5120-01-335-8597, 5120-00-133-1769, 5120-01-286-4421 |
| Connector Platform Standard | MIL-DTL-26482, MIL-DTL-83723, SAE AS50151 (Formerly MIL-C-5015 / MIL-DTL-5015 Circular Positions) |
| Manufacturer Cross-References | DMC 86-1S, Astro Tool 616327, 06519-432-020, 23-102, CP-139 |
| Accommodated AS39029 Contact Numbers | M39029/4-110, M39029/5-115, M39029/11-144, M39029/11-145, M39029/12-148, M39029/31-223, M39029/31-224, M39029/31-225, M39029/31-226, M39029/31-227, M39029/31-240, M39029/31-241, M39029/31-448, M39029/32-242, M39029/32-243, M39029/32-245, M39029/32-246, M39029/32-259, M39029/32-260, M39029/32-449, M39029/93-538, M39029/94-542 |
| Accommodated MS Contact Standards | MS3192A20A, MS3192-20, MS3193-20, MS24254-20P, MS24254-20S, MS18134-20, MS18136-20 |
| What’s Included | • 616327 Positioner Assembly (M22520/7-02) • Crimp tool frame sold separately (Compatible with M22520/7-01 / MH860 / 616336) |
MADE IN THE USA!
