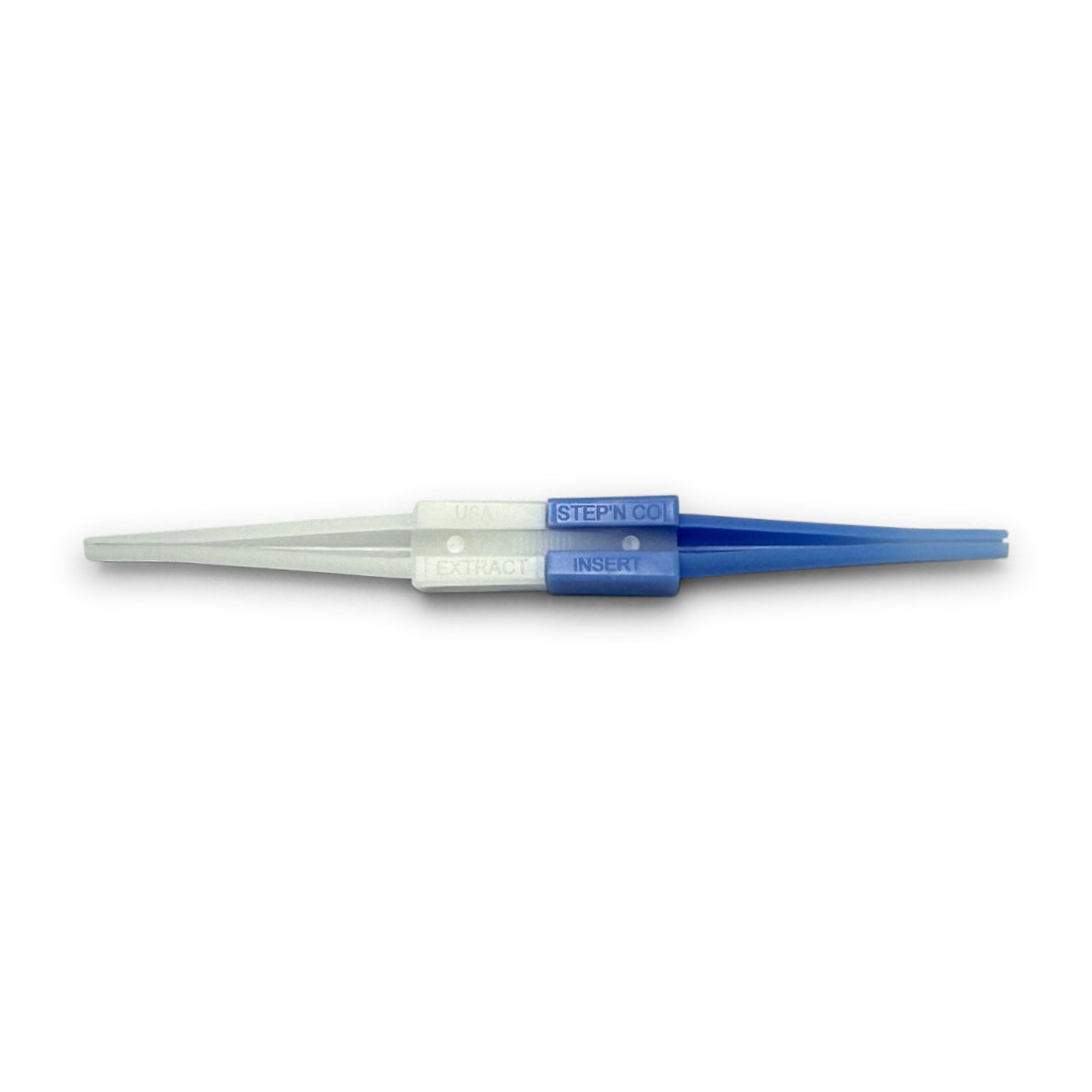

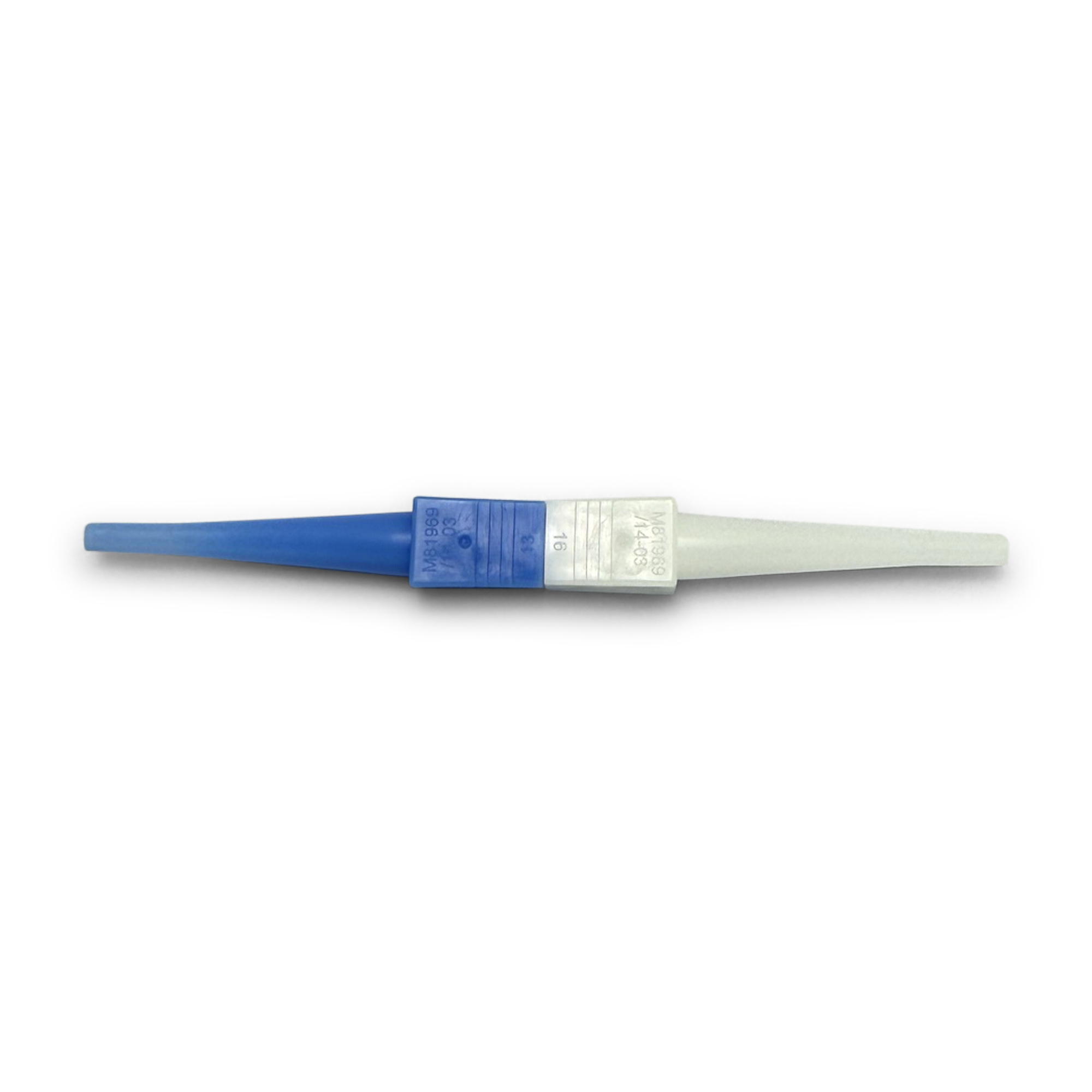

The Step’n Components M81969/14-03 is a premium, double-ended all-plastic insertion and removal tool designed for Size 16 AWG pin and socket contacts. It allows technicians to safely insert and remove contacts in mil-spec connectors.
Replaces M274534-16, NAS1664-16, MS83723/31-16
| Manufacturer / Standard | Cross-Reference Part Number |
|---|---|
| Military Specification | M81969/14-03, M819691403, SAE-AS81969/14 (Formerly MIL-I-81969/14), MS27534-16, MS2753416, NAS1664-16, M83723/31-16, AS81969/14-03, 81969-14-03 |
| Contact Size / Color Code | Size 16 Gauge AWG / Blue (Insertion) & White (Removal) |
| National Stock Number (NSN) | 5120-00-915-4588, 5120-01-335-8733, 5120-01-367-0269 |
| Manufacturer Cross-Reference | Daniels Manufacturing Corp (DMC) M81969/14-03, Bendix 294-109, Souriau 8522-16, ITT Cannon CIET-16 |
| Manufacturer Cross-Reference (Alternate) | AE959/14-03, AUM14-03, TP-201343-16-BA, TP-201343-16BA, MS27534-16, IR-26M, 10-528998-16, 10-589507-16, 274-7002-000, 5-1850-277, 5040-3601-16000, 5120-01-335-8733, 6500-001-16, MS3166-16, MS3167-16, MS3447-16, NAS1664-16, TP201343-16, TP201391-16, Glenair 809-131. |
| Examples of Supported M39029 Contacts | M39029/4-111, M39029/4-112, M39029/4-116, M39029/5-117, M39029/56-352, M39029/57-358, M39029/58-364 (Size 16 Pins & Sockets) |
| Compatible Connector Families | MIL-DTL-38999 Series I, II, III, IV (Size 16 layouts), MIL-DTL-26482 Series II, MIL-DTL-83723 Series II & III, AS81703 Series III, AS50151, MIL-DTL-55302/68 & /69, AS81714 Terminal Junction Modules |
What’s included: Single (1) M81969/14-03 Dual-Ended Insertion and Removal Tool (Bue/White)
Made in the USA!
