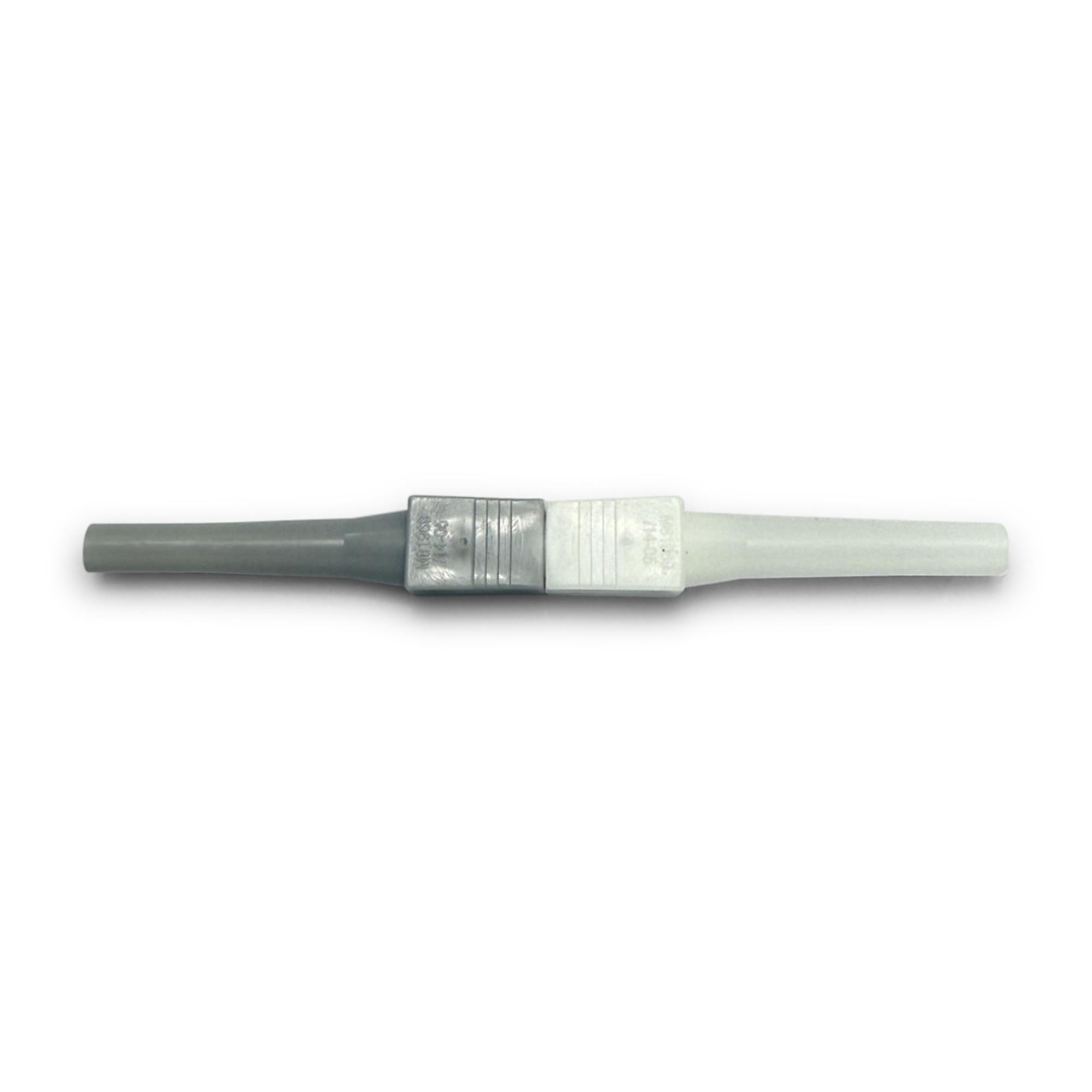

M81969/14-05 Plastic Insertion and Removal Tool, Stamped Part Number Side Main Image - Size 10 Gray and White Combo Tool
M81969/14-05 All-Plastic Hand Tool, Reverse Profile View Revealing Domestic USA Manufacturing and Step-N-Go Compliance Marks

M81969/14-05 Ins & Rem Tool Size 10 | Step’n Components

$2.00
Government agencies and prime contractors: We are a SDVOSB‑certified supplier. Volume pricing available — call (817) 309‑6900 or email sales@connectortooling.com, or use the table below.

—IN STOCK. SHIPS WITHIN ONE BUSINESS DAY!!— The M81969/14-05 is a premium, MIL-spec plastic insertion and removal tool from Step’n Components. Featuring a color-coded Gray and White design for Size 10 contacts, this double-ended, non-marring tool ensures safe contact installation and extraction within rear-release connectors. MADE IN THE USA!

Title Range Discount
List Price (1-9 units) 1 – 9 0%
5% Off (10-49 units) 10 – 49 5%
10% Off (50-99 units) 50 – 99 10%
15% Off (100-999 units) 100 – 999 15%
SKU: M819691405
Category:
Tags: , , , ,

Description

For a quotation on larger qtys please contact sales@connectortooling.com

The Step’n Components M81969/14-05 is a premium, double-ended all-plastic insertion and removal tool engineered for servicing Size 10 contacts. Molded from non-marring thermoplastic, it allows flight line mechanics and depot technicians to safely release internal locking clips and smoothly extract power contacts without cavity wear.

Replaces M24534-10

Part Numbers M81969/14-05, AS81969/14-05, M819691405, MS27534-10, 81969-14-05
Active Aerospace Standard (Mil-Spec) SAE AS81969/14 (formerly MIL-I-81969/14)
NSN 5120-01-407-7290 (Primary Standard), 5120-01-428-4587
Manufacturer Cross-References CMS IR-58M, IR-58M, AE959/14-05, AUM14-05, 0011-005-000
Application / Color Code Size 10 Gauge AWG / Gray (Insertion) & White (Removal)
Connector Platform Standard MIL-DTL-38999 Series I, II, III, & IV (Size 10 Cavities), MIL-DTL-55302/68, MIL-DTL-55302/69, Amphenol PowerClass Systems, Modular Heavy Ground Racks
What’s Included • Single (1) Step’n Components M81969/14-05 Plastic Insertion and Removal Tool (Size 10)
• Individual Factory Protective Packaging & Compliance Documentation

MADE IN THE USA!

Additional information

Weight .01 lbs
Dimensions 4 × .5 × .5 in
