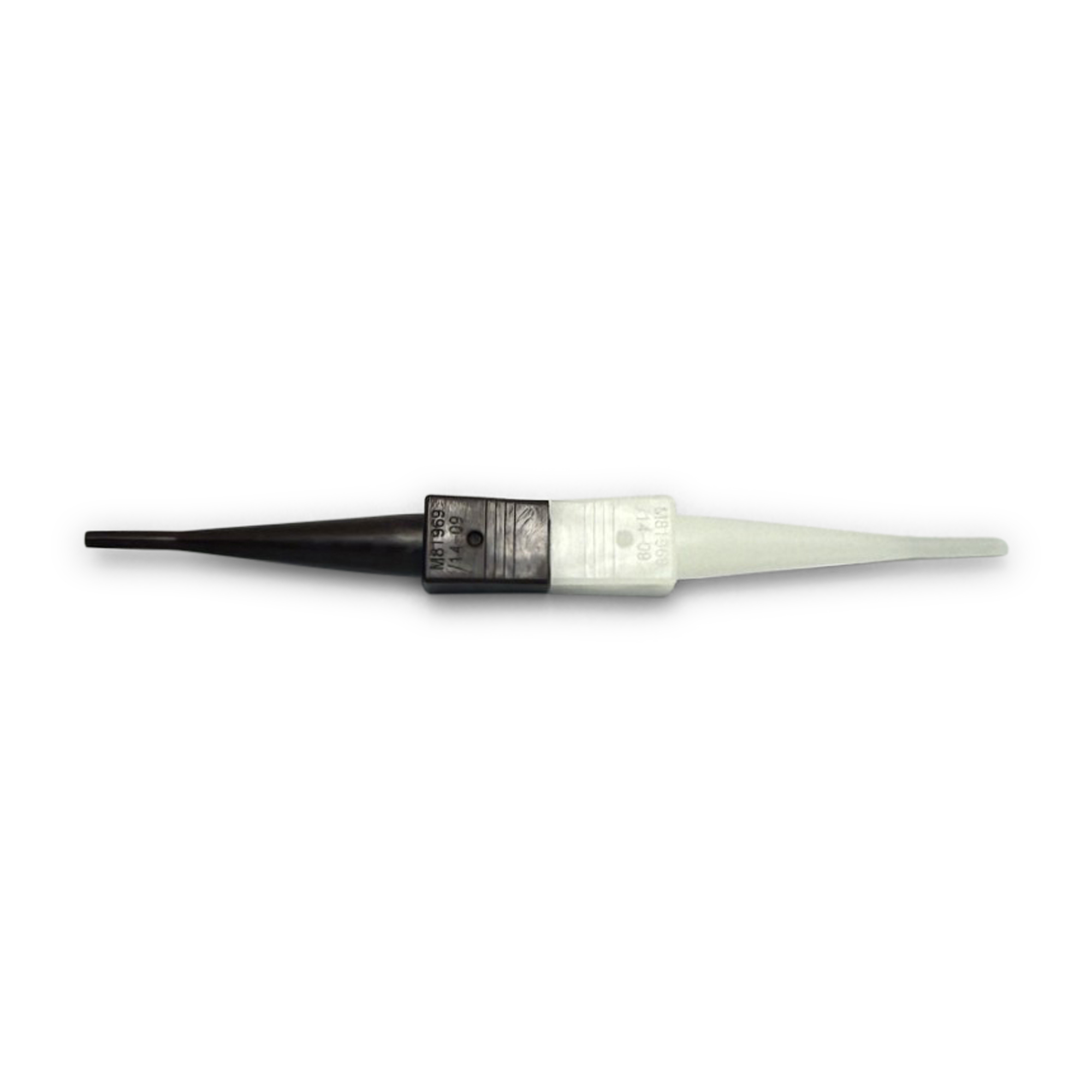

M81969/14-09 Plastic Insertion and Removal Tool, Stamped Part Number Side Main Image - Size 22 Brown and White Combo Tool

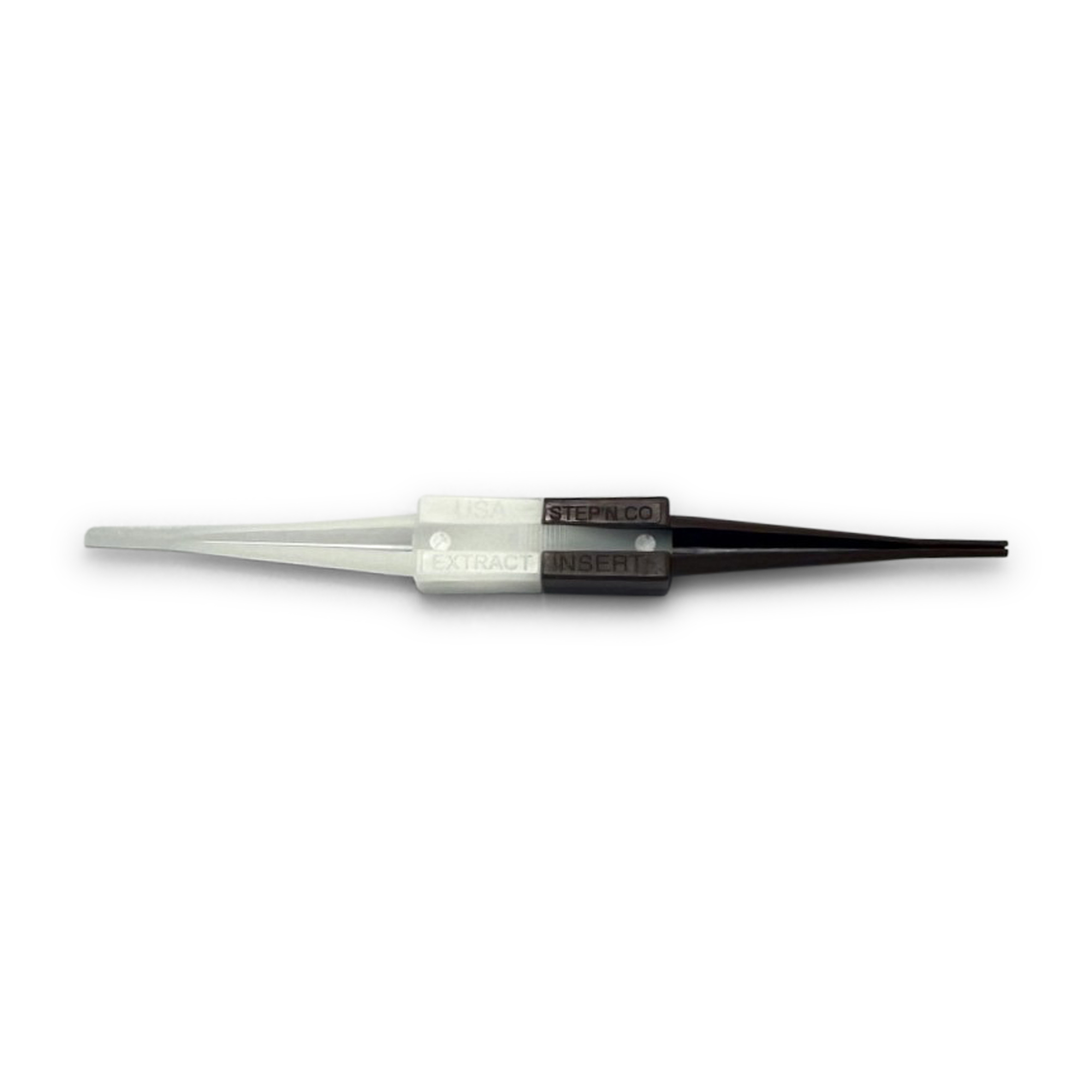

M81969/14-09 All-Plastic Hand Tool, Reverse Profile View Revealing Domestic USA Manufacturing and Step-N-Go Compliance Mark

M81969/14-09 Ins & Rem Tool Size 22 | Step’n Components

$1.80
Government agencies and prime contractors: We are a SDVOSB‑certified supplier. Volume pricing available — call (817) 309‑6900 or email sales@connectortooling.com, or use the table below.

—IN STOCK. SHIPS WITHIN ONE BUSINESS DAY!!— The M81969/14-09 is a premium, MIL-spec plastic insertion and removal tool from Step’n Components. Featuring a color-coded Brown and White design for Size 22 contacts, this double-ended, non-marring tool ensures safe contact installation and extraction within rear-release connectors. MADE IN THE USA!

Title Range Discount
List Price (1-9 units) 1 – 9 0%
5% Off (10-49 units) 10 – 49 5%
10% Off (50-99 units) 50 – 99 10%
15% Off (100-999 units) 100 – 999 15%
SKU: M819691409
Category:
Tags: , ,

Description

Looking for larger quantities…Let us know we’d love to work with you sales@connectortooling.com

The Step’n Components M81969/14-09 is a double-ended plastic tool for Size 22 AWG contacts (brown/white).

This tool replaces M83723/31-22.

Manufacturer / Standard Cross-Reference Part Number
Military Specification M81969/14-09, M819691409, SAE-AS81969/14 (Formerly MIL-I-81969/14), M83723/31-22, M837233122, AS81969/14-09, 81969-14-09
Contact Size / Color Code Size 22 Gauge AWG / Brown (Insertion) & White (Removal)
National Stock Number (NSN) 5120-01-367-0273, 5120-01-428-4574
Manufacturer Cross-Reference M83723/31-22, IR-56M, 166-90-03-022, 10-528998-22, 10-538988-22, 1330-OD-22, 274-7001-009, 294-109, 5-1850-277, NAS1664-22, TP201343-22, TP201391-22
Examples of Supported M39029 Contacts M39029/9-132, M39029/9-133, M39029/9-134, M39029/10-138, M39029/10-139, M39029/10-140 (Rear-Release Pins & Sockets)
Compatible Connector Families MIL-DTL-55302/68, MIL-DTL-55302/69, MIL-DTL-83723 Series III (Size 22 layouts), and other rear-release systems using size 22 contacts

What’s Included:  M81969/14-09 Plastic Insertion/Removal Tool (Size 22)

Note: For more durable metal insertion and removal tools please contact our Customer Service Department.

MADE IN THE USA!!

Additional information

Weight .01 lbs
Dimensions 3 × .5 × .5 in
