Description

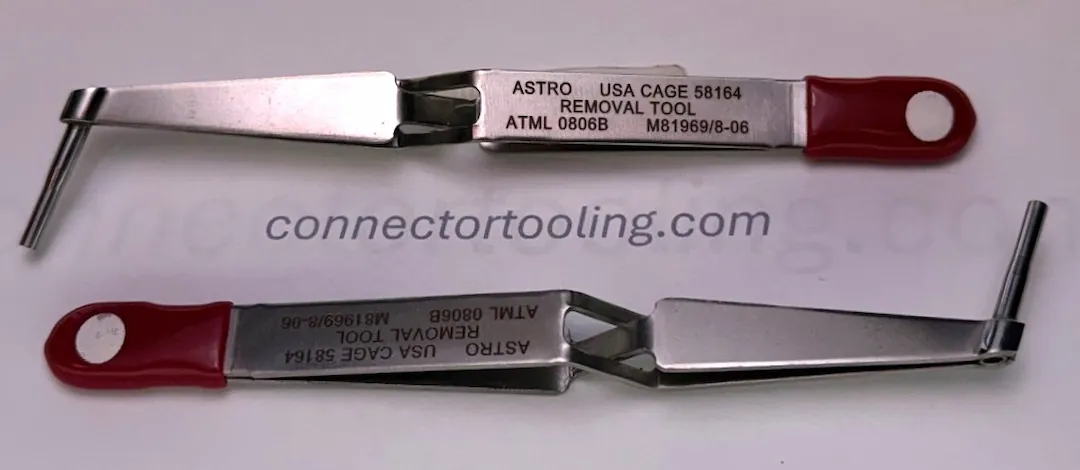

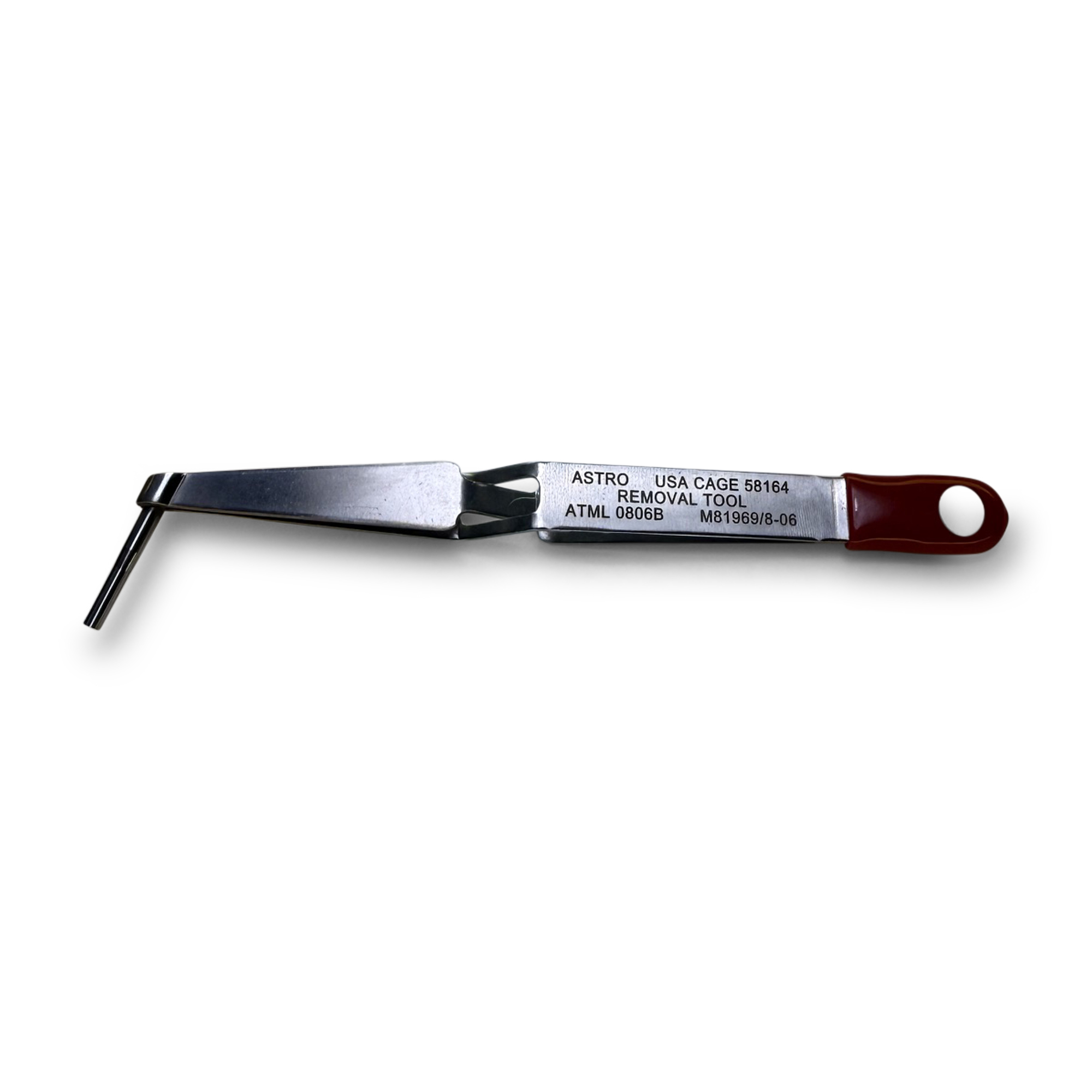

The ATML 0806B (M81969/8-06) is a military-grade, metal contact removal tweezer fully qualified to the active SAE AS81969/8-06 specification. Precision-engineered for rear-release connector cavities, its hardened metal blades cleanly compress internal locking mechanisms to safely release size 20 pin and socket contacts without deforming internal housing clips or wire insulation.
Replaces MS27495R20
| Primary Brand OEM Part Numbers | ATML 0806B, Astro Tool ATML 0806B, ATBX 2070, ATML0806B |
| Active Aerospace Standard (Mil-Spec) | SAE AS81969/8-06 (formerly M81969/8-06, M81969/8B-06, Replaces MS2795R20) |
| National Stock Number (NSN) | 5120-00-177-6966 |
| Industry & Manufacturer Cross-References | Daniels Manufacturing Corp (DMC) DRK95-20MB, DRK95-20B, CMS ET-101, ET-101M, 11-8675-20, 809821, 809-821, 8599-E-20C, 100782, TP201421-20R |
| Connector Platform Compatibility | MIL-DTL-38999 Series I, II, & III Rear-Release Circular Connectors, and standard aerospace wiring systems utilizing Size 20 machined contacts |
| Accommodated Wire Gauge Ranges | Size 20 Gauge AWG Machined Pin & Socket Contacts (Removal Mode Only) |
| What’s Included | • Single (1) Astro Tool ATML 0806B Metal Contact Removal Tweezer (M81969/8-06) • Individual Factory Protective Packaging & Technical Reference Instructions |
MADE IN THE USA!
