Description

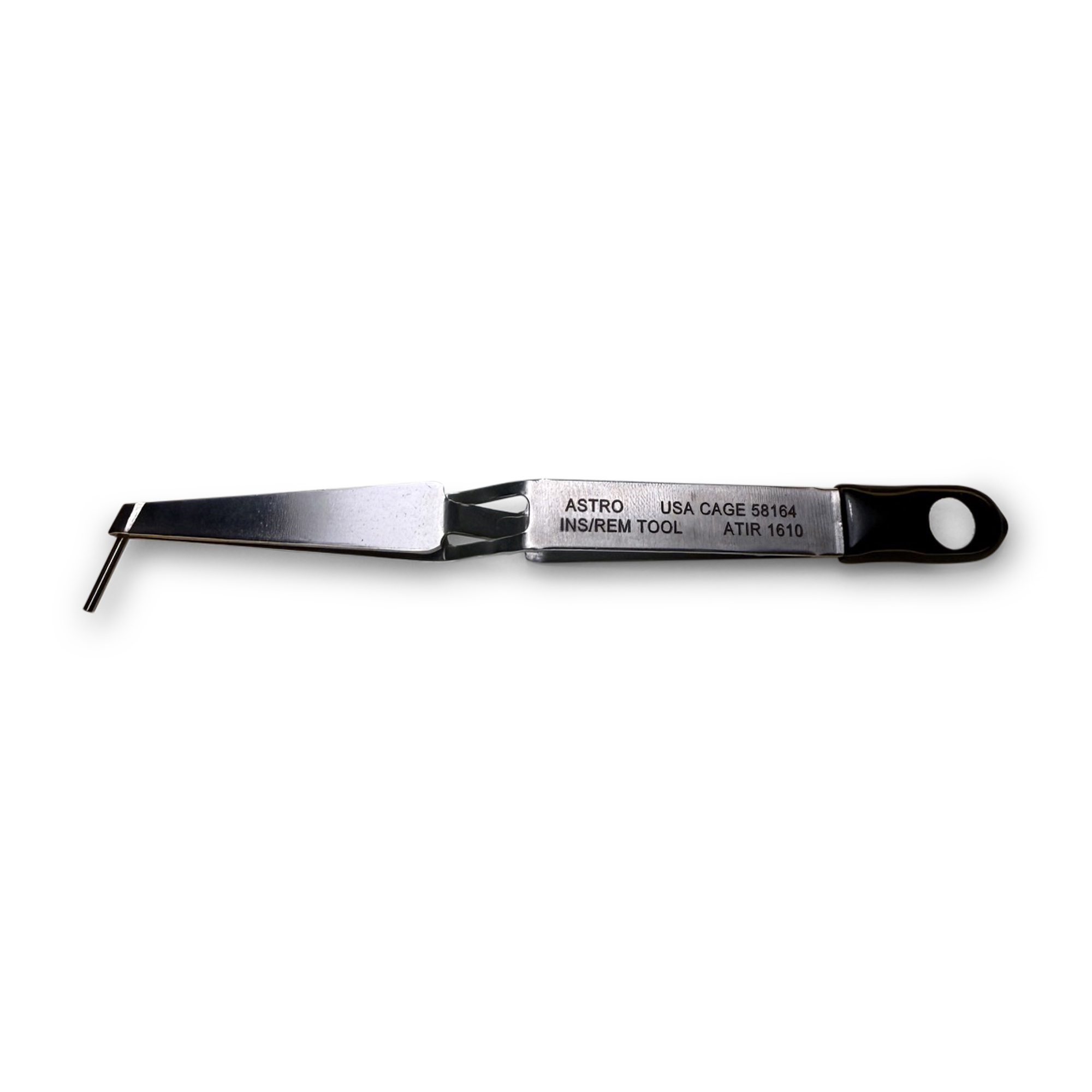

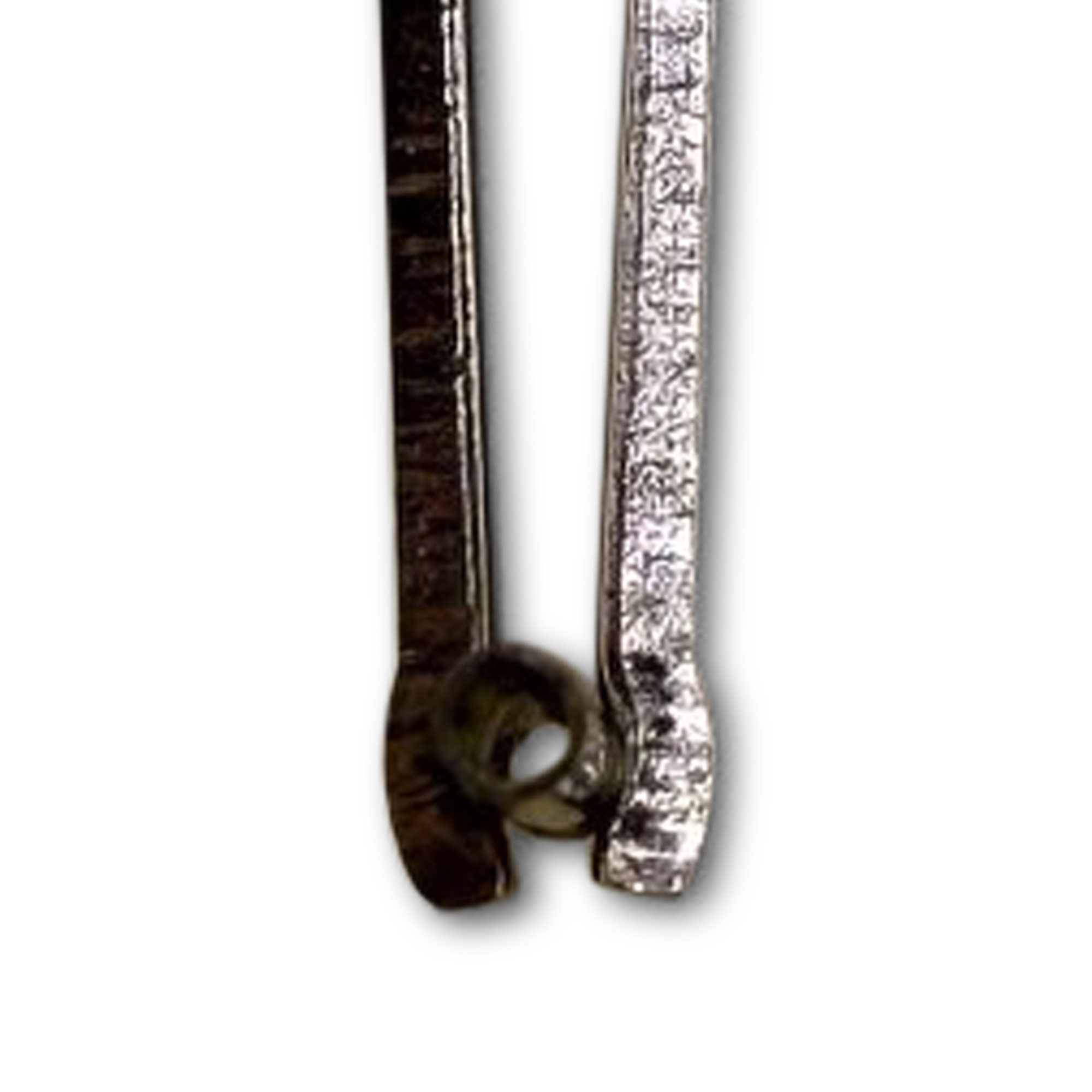

The Astro Tool ATIR 1610 is a premium, dual-purpose angled metal insertion and removal tweezer tool qualified as a functional proprietary equivalent to the M81969/12-02 standard. Precision-engineered for high-reliability printed circuit board assemblies, its angled steel blades safely insert and extract size 22 AWG machined pin and socket contacts without causing cavity or retention clip fatigue.
| Primary Brand OEM Part Numbers | ATIR 1610, ATIR1610, TIR1610, TR1610 |
| Active Aerospace Standard (Mil-Spec) | M81969/12-02 Proprietary Equivalent (Interchangeable with active ATML1202 tooling systems) |
| National Stock Number (NSN) | 5120-00-117-4730 |
| Industry & Manufacturer Cross-References | Daniels Manufacturing Corp (DMC) DRK246, TR22, TR22A, Airborn WTK Series, 2597, 6155-0813-400, M81969/12-02 |
| Connector Platform Compatibility | MIL-DTL-65302/65 and MIL-DTL-55302/66 Printed Circuit Wiring Connectors, Airborn WTK Series Connector Blocks |
| Supported Machined Contacts | Airborn Size 22 Contacts: WTK2222PA, WTK2222S, WTK2220S867 |
| Accommodated Wire Gauge Ranges | Size 22 Gauge AWG Machined Pins & Sockets (Insertion & Removal Capable) |
| What’s Included | • Single (1) Astro Tool ATIR 1610 Angled Insertion & Removal Tweezer Tool • Individual Factory Protective Packaging & Manufacturer Technical Notes |
MADE IN THE USA!
