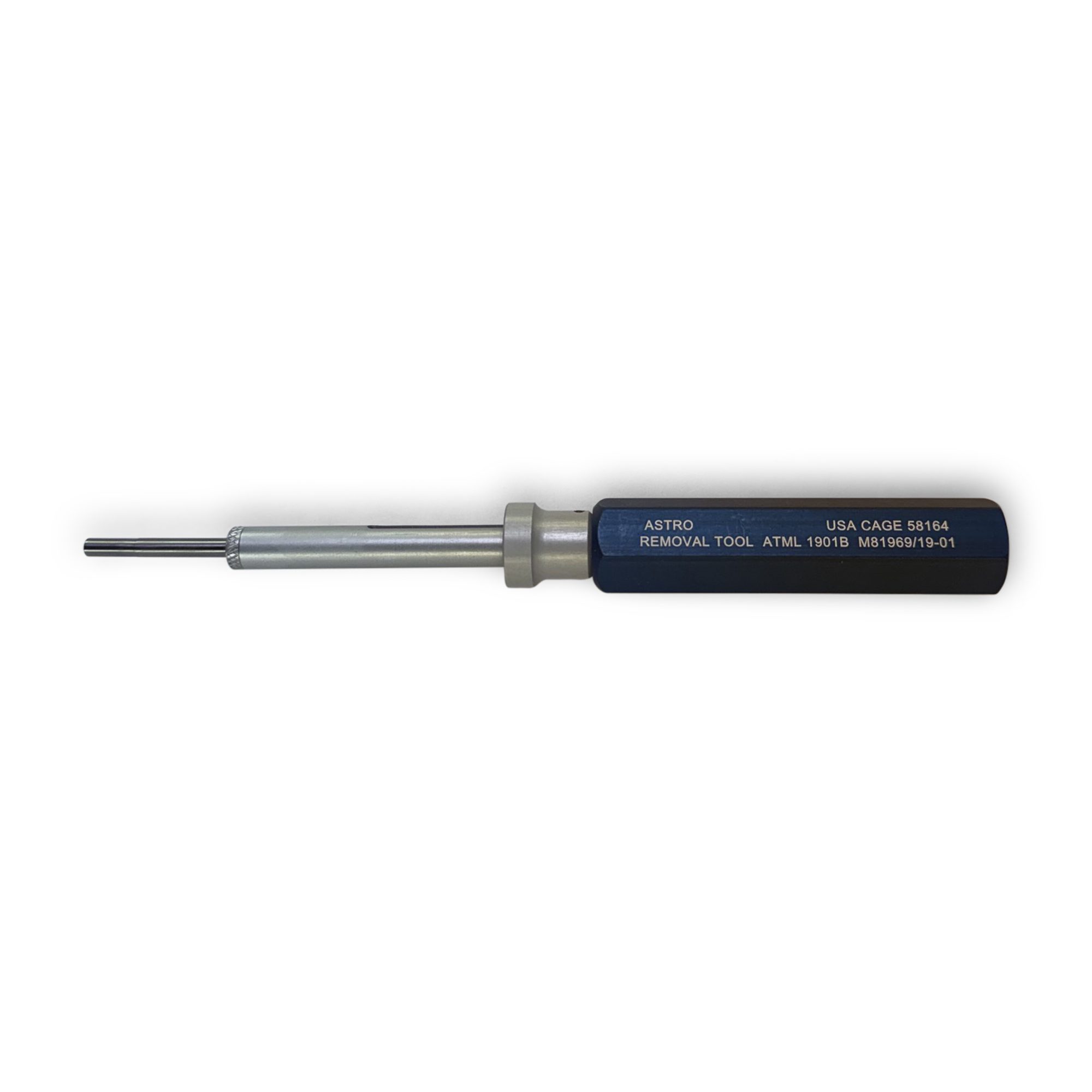

Astro Tool ATML 1901B (M81969/19-01) Removal Tool, Full Front Profile View - DMC DRK16B Equivalent
Close-up Detail of Astro Tool ATML 1901B Metal Extraction Tool Tip Profile for Size 16 Gauge Contacts - M81969/19-01 Removal Tip

M81969/19-01 Rem Tool Size 16 | Astro ATML1901B (DMC DRK16B)

$65.00

—IN STOCK. SHIPS WITHIN ONE BUSINESS DAY!!— The ATML 1901B is a premium metal front-release removal tool qualified to the active AS81969/19-01 military specification. Configured for high-volume harness maintenance and repair using Size 16 contacts, this precision metal-tip extraction tool protects internal connector retention clips and is a direct equivalent to the DMC DRK16B. MADE…

SKU: ATML1901B
Category:
Tags: , , , , , , , , , , , , , , , ,

Description

The ATML 1901B (M81969/19-01) is a military-grade, metal contact removal tool qualified to the active SAE AS81969/19-01 specification. Designed for high-reliability avionics and defense wiring harnesses, its precision-machined metal extraction tip applies balanced mechanical force to efficiently remove size 16 gauge contacts.

Replaces MS24256R16, M81969/19-08, MS90456-16

Part Numbers ATML 1901B, DMC DRK16B Equivalent
Mil-Spec M81969/19-01, SAE AS81969/19-01, AS81969/19-01, MS90456-16,     M81969/19-08
National Stock Number (NSN) 5120-00-079-4602, 5120-01-408-4374
Cross-References DRK16B, CET-FRF-16, 8500-38A, 11-7880-16, DRK16B, DRK16, DRK56-16, ET-40M, ET-9, 294-97, 294-219
Compatibility MIL-DTL-26482 Series I, MIL-DTL-83723 Series I, MIL-DTL-26500, SAE-AS50151 Series (Formerly MIL-C-5015 Crimp Front-Release)

(Front-Release Series Only)
What’s Included • One (1) ATML 1901B Removal Tool
• Technical Specs/Documentation

MADE IN THE USA!

Additional information

Weight .25 lbs
Dimensions 8 × 3 × 2 in
