Description
In stock. Ships in one business day!!!—

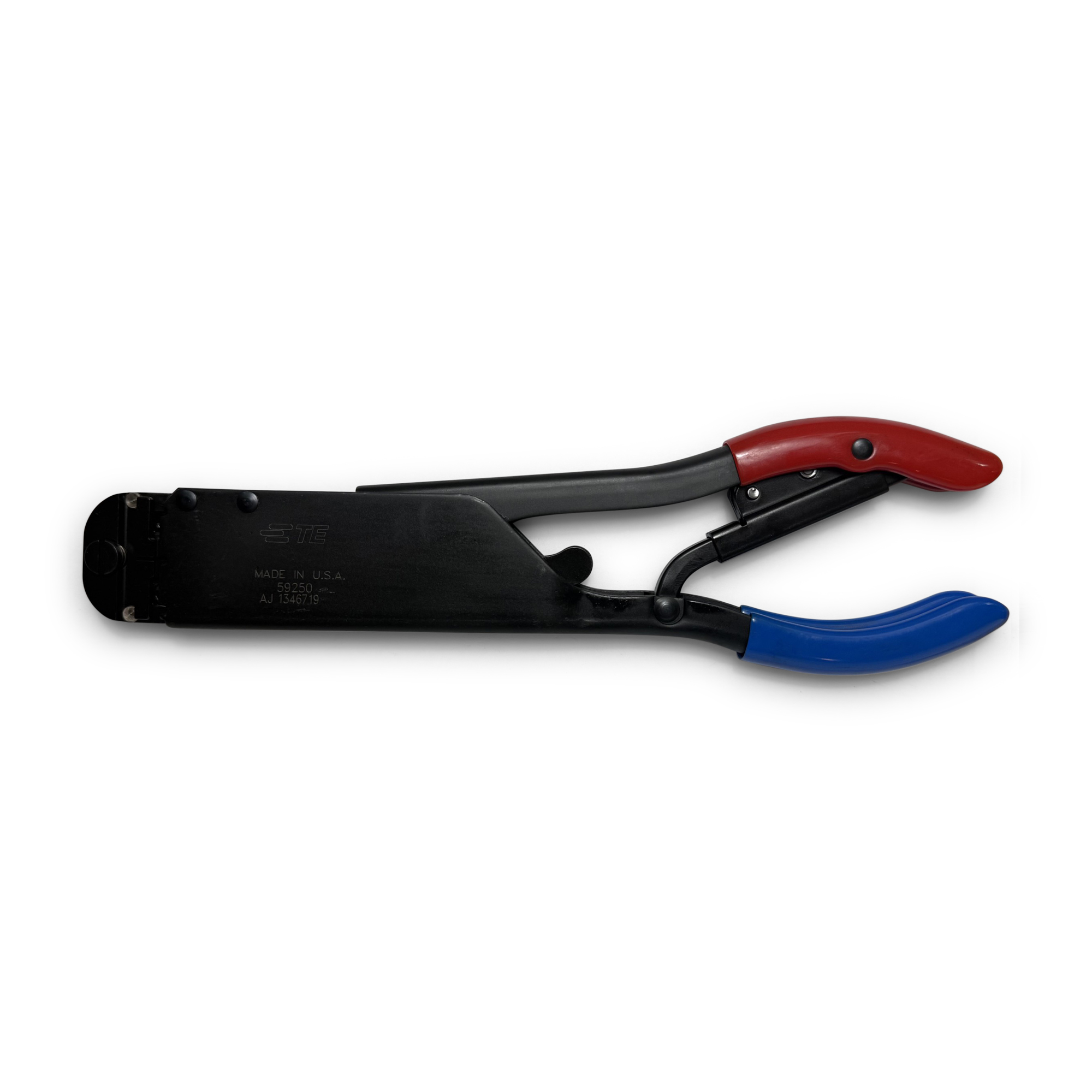

The TE Connectivity 59250 (AMP) is a premium, commercial-grade T-Head controlled-cycle ratchet hand crimp tool designed for processing size 22–14 AWG insulated terminals and splices. Utilizing TE’s signature CERTI-CRIMP synchronized ratcheting mechanism, this heavy-duty tool is structurally engineered to remain locked until the handle framework is fully bottomed, guaranteeing absolute crimp depth uniformity and avoiding incomplete execution stress on critical wiring circuits.
Optimized for Tyco (AMP) PIDG and Plasti-Grip insulated connection matrices, the 59250 includes integrated color-coded handles to match terminal gauge paths along with a 4-position insulation adjustment locator indicator to control outer barrel height variance across different wire sheet diameters. While this tool serves as a commercial cross-reference blueprint to the M22520/40-01 standard, it is built to TE’s precise premium application tooling commercial specifications rather than carrying independent formal military product qualifications.
| Manufacturer / Standard | Cross-Reference Part Number / Specification |
|---|---|
| Primary Tool SKU | 59250 |
| Manufacturer Brand | TE Connectivity / AMP / Tyco |
| National Stock Number (NSN) | 5120-00-686-2046 |
| Military Cross-Reference Class | M22520/40-01 (Commercial Class Tool Base, No Active Mil-Spec Qualification Labeling) |
| Accommodated Wire Gauge Ranges | 22 AWG through 14 AWG |
| Compatible Terminal Families | AMP PIDG, PIDG Strato-Therm, Plasti-Grip insulated terminals, splices, and quick-disconnect connections |
| Tooling Architecture / Mechanism | Fixed-Die T-Head Framework, CERTI-CRIMP Non-Releasable Controlled-Cycle Ratchet |
| What’s Included | • TE Connectivity 59250 Premium T-Head Hand Crimp Assembly • (Terminal hardware connections and replacement alignment pieces sold separately) |
