Description

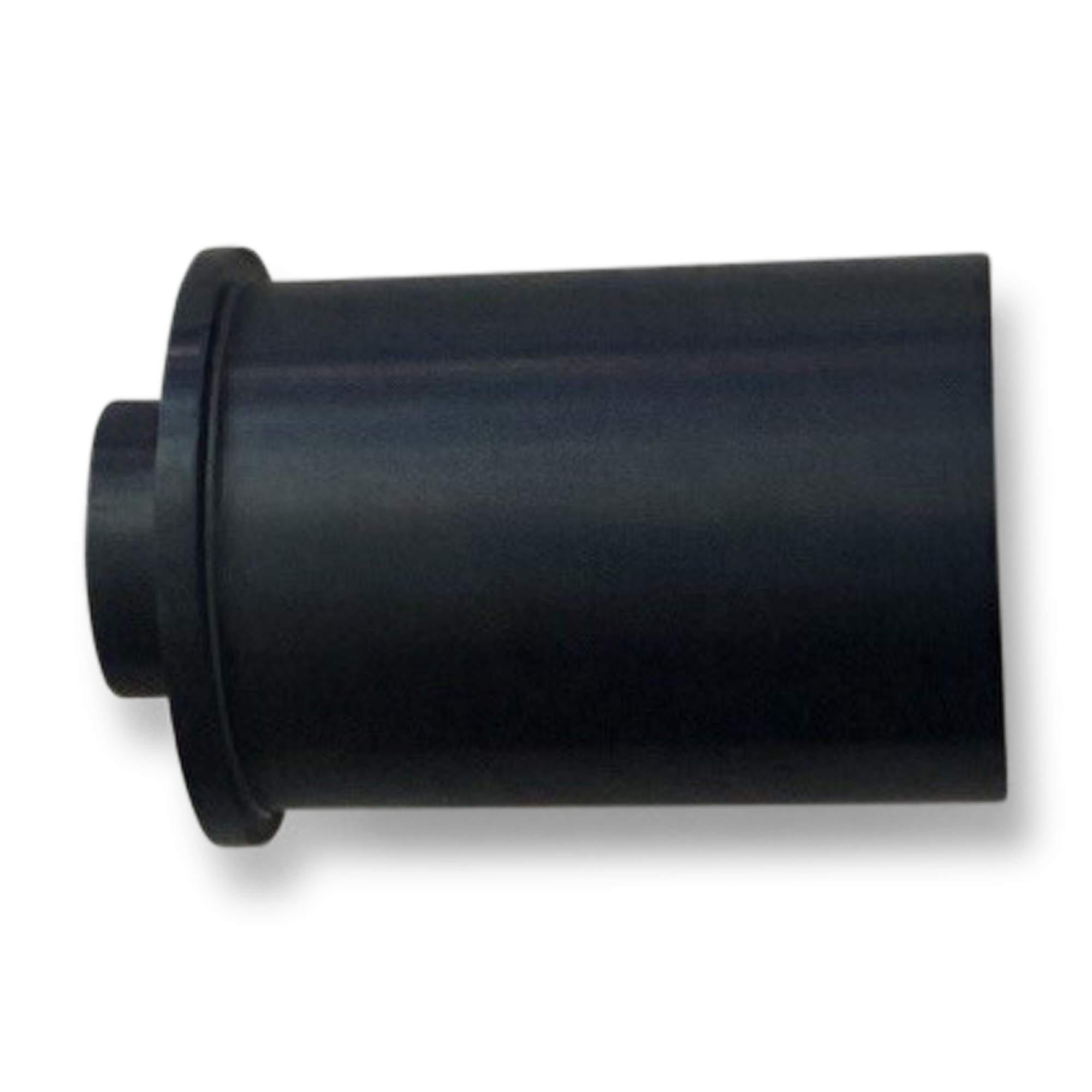

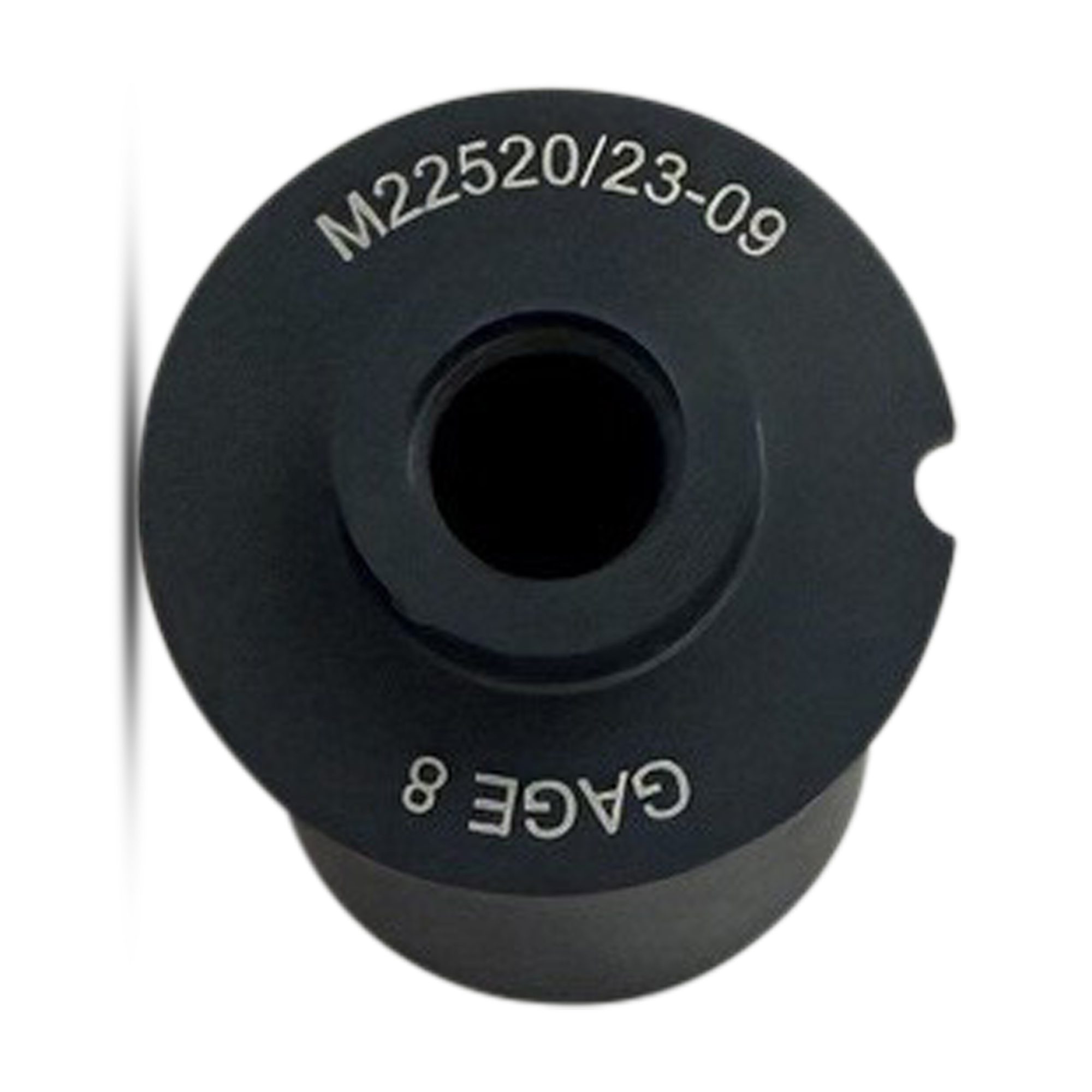

The AMT23009L (AS22520/23-09, DMC WA23-9) is a heavy-duty, precision power locator engineered for high-reliability crimp operations. Designed to drop directly into the pneumatic power crimping press frame, this locator provides dependable depth control and exact barrel alignment for heavy gauge machined power contacts in aerospace, defense, and industrial wire harness assembly.
| Manufacturer / Standard | Cross-Reference Part Number |
|---|---|
| Primary Brand OEM Part Number | AMT23009L, WA23-9 |
| Active Governing Specification (Mil-Spec) | SAE AS22520/23-09 (formerly M22520/23-09 / MIL-DTL-22520/23) |
| National Stock Number (NSN) | 5130-01-117-3890 |
| Connector Platform Standard | Heavy-duty 8 AWG power connectors, high-power rectangular and circular platforms |
| Manufacturer Cross-References | DMC WA23-9, 4046A, CCHP-8-9, CP-1020 |
| Accommodated AS39029 Contact Numbers | M39029/29-214, M39029/30-220, M39029/44-291, M39029/45-298, M39029/29-214, M39029/30-220 |
| Accommodated MS Contact Standards | MS90453-8-8, MS90454-8-8 |
| What’s Included | • AMT23009L Locator (M22520/23-09) • Pneumatic power crimp tool frame sold separately (Compatible with AS22520/23-01 / AMT23B / WA23) |
MADE IN THE USA!
